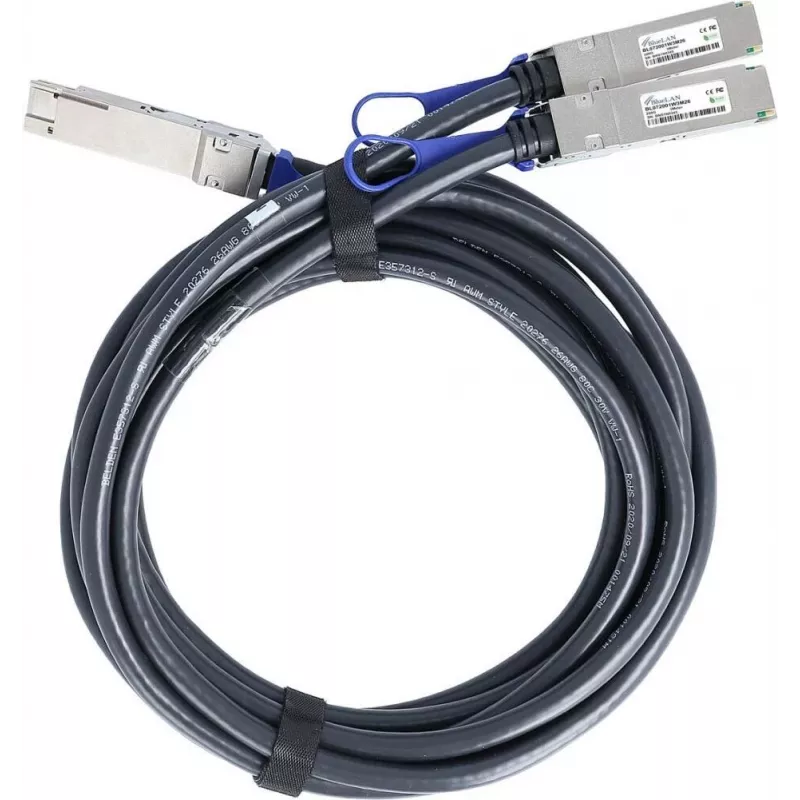

BlueOptics P08246-001 Compatible BlueLAN QSFP56 200GBASE-CR4 to 2x100GBASE-CR2 Direct Attach Breakout Cable, 2m, 26 AWG

The BlueOptics P08246-001 compatible BlueLAN QSFP56 Direct Attach Breakout Cable (DAC) is a high-performance passive copper cable designed for data center and high-performance computing environments. It provides a cost-effective and low-latency solution for connecting 200G QSFP56 ports to two 100G QSFP56 ports, enabling seamless network upgrades and flexible topologies.

Advantages

This breakout cable simplifies cabling by replacing multiple individual cables, reducing clutter and improving airflow. It supports aggregate data rates of 200 Gbps, ensuring high bandwidth for demanding applications. The passive design consumes negligible power, contributing to energy efficiency. With HPE system compatibility via vendor-specific coding, it integrates easily into existing infrastructures.

Suitable for

• Data center interconnects
• High-performance computing (HPC) clusters
• Enterprise network upgrades
• Telecommunications equipment

Key specifications

• Product Type: Direct Attach Cable (DAC)
• Cable Type: Breakout Cable
• Connector A: 1x QSFP56 (200GBASE-CR4)
• Connector B: 2x QSFP56 (100GBASE-CR2)
• Breakout Configuration: 1x 200G to 2x 100G
• Cable Length: 2 meters
• Cable Gauge: 26 AWG
• Cable Material: Passive Copper
• Compatibility: HPE P08246-001 (compatible)
• Protocol Support: Ethernet
• Standards Compliance: IEEE 802.3cd, SFF-8665 (QSFP56 MSA)
• Hot-Swappable: Yes
• Power Consumption: Passive (negligible)
• RoHS Compliant: Yes

Recommendations

For optimal performance, ensure that both ends of the cable are connected to compatible QSFP56 ports. This cable is ideal for short-range, high-speed connections within racks or between adjacent racks. Always handle with care to avoid damage to the connectors.
