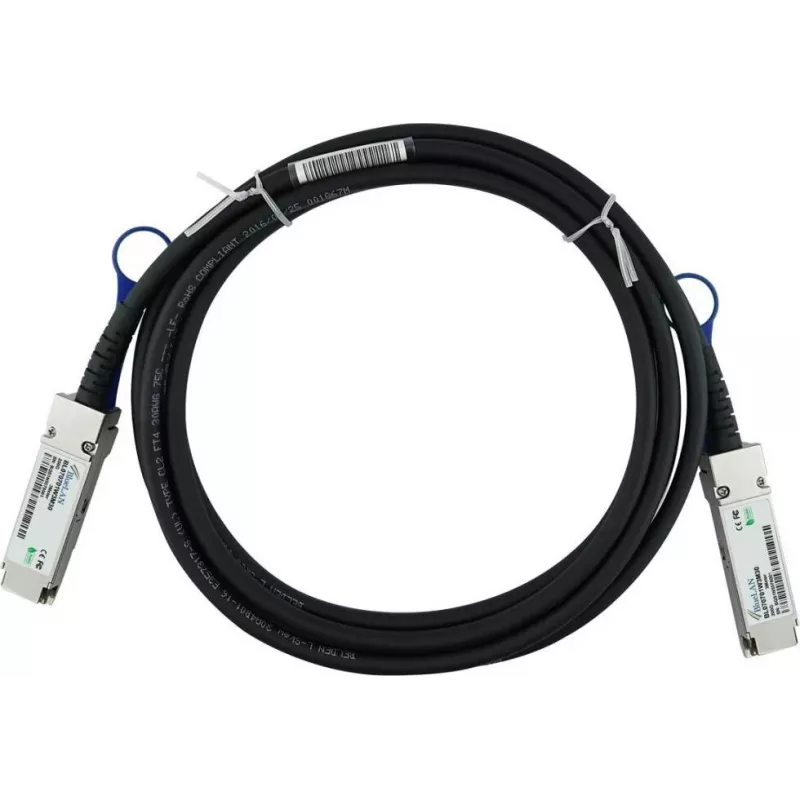

BlueOptics NVIDIA 980-9I54D-00V002 QSFP56 Direct Attach Copper Cable, 200GBASE-CR4, Ethernet, 30AWG, 2 Meter

The BlueOptics NVIDIA 980-9I54D-00V002 QSFP56 Direct Attach Copper (DAC) Cable is a high-performance passive twinax cable designed for data center and high-performance computing (HPC) environments. It delivers 200 Gbps connectivity over 2 meters, compliant with 200GBASE-CR4 Ethernet standard, ensuring reliable and low-latency interconnects.

Advantages

This DAC cable offers a cost-effective and energy-efficient solution for short-range high-speed links. With power consumption under 0.5W per end, it reduces overall system power draw. The passive design ensures zero signal processing, providing ultra-low latency. Hot-pluggable QSFP56 connectors simplify installation and maintenance.

Suitable for

• Data center top-of-rack to server connections
• High-performance computing clusters
• Network switch to switch interconnects
• Ethernet 200GBASE-CR4 compliant networks

Key specifications

• Product Type: Direct Attach Copper (DAC) Cable
• Connector Type: QSFP56 to QSFP56
• Data Rate: 200 Gbps
• Ethernet Standard: 200GBASE-CR4
• Cable Length: 2 Meter
• Wire Gauge: 30 AWG
• Cable Material: Copper
• Cable Type: Passive Twinax
• Protocol: Ethernet
• Hot-Pluggable: Yes
• Power Consumption: < 0.5W per end
• Compliance: SFF-8665 (QSFP56 MSA)
• Operating Temperature: 0°C to 70°C
• Voltage Supply: 3.3V
• Jacket Material: PVC
• Color: Black
• Impedance: 100 Ohm Differential

Recommendations

For optimal performance, ensure your network equipment supports QSFP56 ports and 200GBASE-CR4 standard. This cable is compatible with NVIDIA 980-9I54D-00V002 reference design and similar switches.
