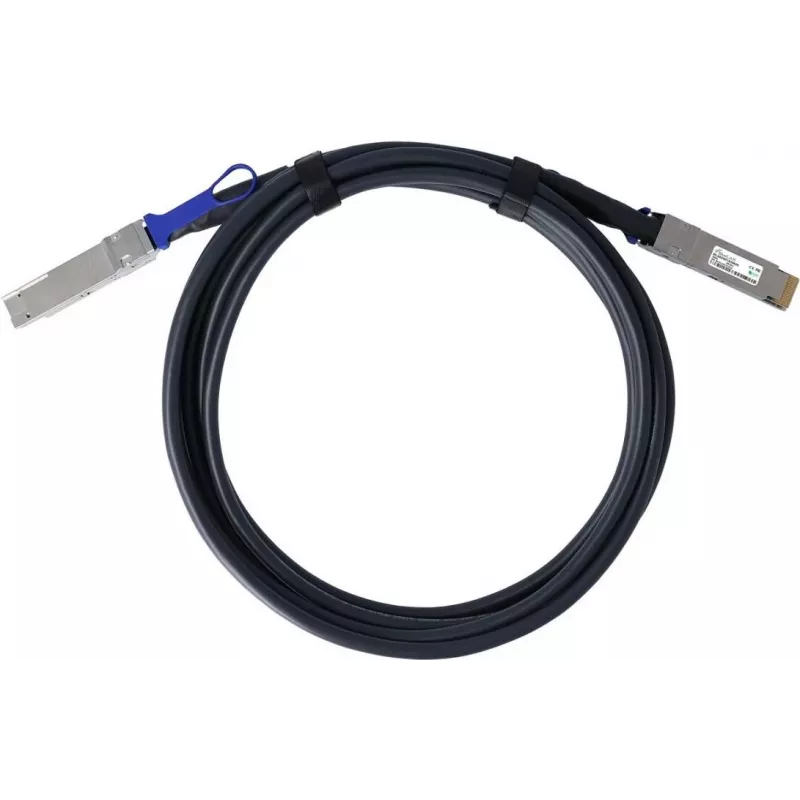

BlueOptics NVIDIA 980-9I35O-00W001 QSFP-DD BlueLAN Direct Attach Cable, 400GBASE-CR4, Ethernet, 26 AWG, 1 Meter

The BlueOptics NVIDIA 980-9I35O-00W001 QSFP-DD BlueLAN Direct Attach Cable (DAC) is a high-performance, passive copper cable designed for 400 Gigabit Ethernet connectivity. It is fully compatible with NVIDIA networking equipment and meets the 400GBASE-CR4 standard, delivering reliable, low-latency data transmission for data center and high-performance computing environments.

Advantages

This direct attach cable offers a cost-effective and energy-efficient solution for short-range, high-speed interconnects. With a length of 1 meter and 26 AWG wire gauge, it provides optimal signal integrity while minimizing power consumption. The QSFP-DD form factor ensures backward compatibility with QSFP+ ports, making it a versatile choice for network upgrades.

Suitable for

• Data center top-of-rack to server connections
• High-performance computing (HPC) clusters
• Network aggregation and core switching
• Storage area networks (SANs)

Key specifications

• Connector Type: QSFP-DD to QSFP-DD
• Data Rate: 400 Gbps (4 lanes of 100 Gbps each)
• Cable Length: 1 Meter
• Wire Gauge: 26 AWG
• Cable Material: Copper
• Protocol: Ethernet
• Passive DAC
• Hot-Swappable
• Operating Temperature: 0°C to 70°C
• Storage Temperature: -40°C to 85°C

Recommendations

For optimal performance, pair this cable with compatible NVIDIA QSFP-DD ports. Ensure proper cable management to maintain airflow and signal quality in high-density environments.
