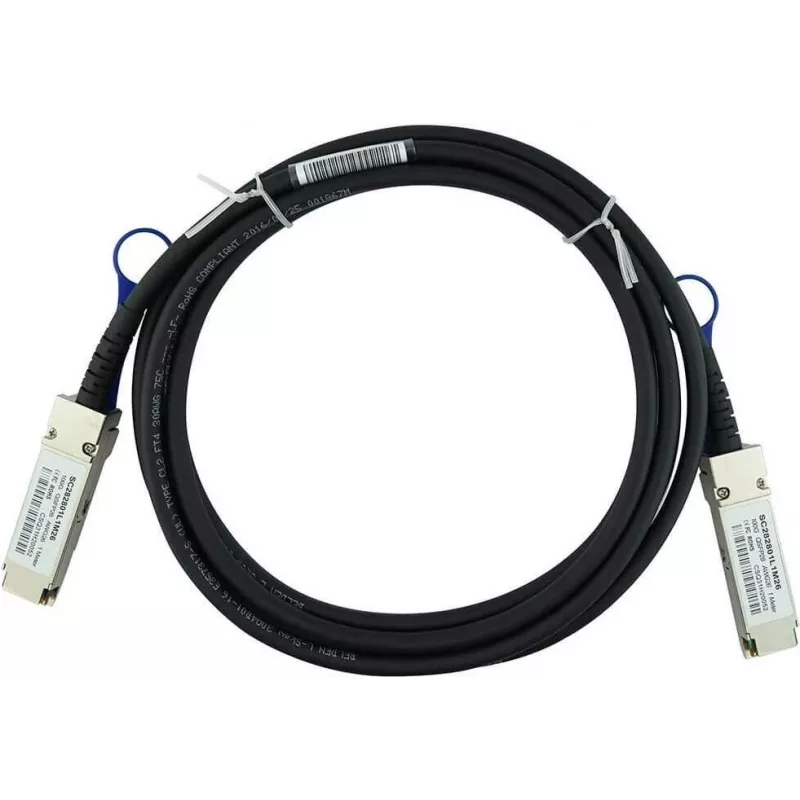

BlueOptics Netgear ACC761 Compatible BlueLAN DAC QSFP28 100GBASE-CR4 InfiniBand EDR 30AWG 1m Passive Direct Attach Copper Cable (ACC761-BL)

The BlueOptics ACC761-BL is a high-performance, cost-effective direct attach copper (DAC) cable designed for seamless compatibility with Netgear ACC761 networking equipment. This passive QSFP28 cable delivers 100 Gbps data rates, supporting 100GBASE-CR4 and InfiniBand EDR protocols, making it ideal for high-speed data center, HPC, and enterprise networking environments. With a 1-meter length and 30 AWG wire gauge, it offers reliable, low-latency connectivity with minimal power consumption.

Advantages

This DAC cable provides a plug-and-play solution without the need for external power, ensuring easy deployment and reduced total cost of ownership. Its passive design guarantees low power consumption (<0.5W per end) and excellent signal integrity over short distances. The cable is hot-swappable and fully compliant with QSFP28 MSA standards, ensuring interoperability with a wide range of networking equipment.

Suitable for

• Data center interconnects (ToR to server, switch to switch)
• High-performance computing (HPC) clusters
• Enterprise network backbone connections
• 100GBASE-CR4 and InfiniBand EDR applications

Key specifications

• Cable Type: Direct Attach Copper (DAC), Passive
• Data Rate: 100 Gbps
• Connector Type: QSFP28 to QSFP28
• Cable Length: 1 Meter
• Wire Gauge: 30 AWG
• Protocol Support: 100GBASE-CR4, InfiniBand EDR
• Impedance: 100 Ohm
• Jacket Material: PVC
• Operating Temperature: 0°C to 70°C (32°F to 158°F)
• Storage Temperature: -40°C to 85°C (-40°F to 185°F)
• Power Consumption: <0.5W per end
• Certifications: CE, FCC, RoHS
• Hot-Swappable: Yes

Recommendations

For optimal performance, ensure your networking equipment supports QSFP28 ports and 100GBASE-CR4 or InfiniBand EDR standards. This cable is an ideal replacement for Netgear ACC761 original parts, offering the same reliability at a competitive price.
