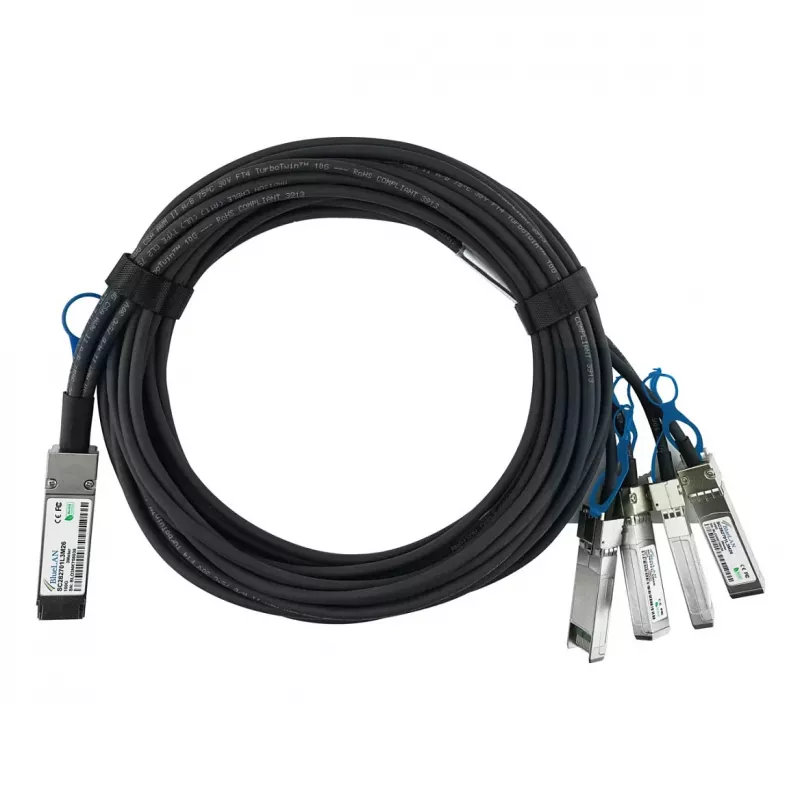

BlueOptics Intel XXV4DACBL1M Compatible BlueLAN Passive 100GBASE-CR4 QSFP28 to 4x25GBASE-CR SFP28 Direct Attach Breakout Cable, 1m, AWG26

The BlueOptics Intel XXV4DACBL1M compatible BlueLAN passive Direct Attach Copper (DAC) breakout cable is designed for high-performance data center and network interconnect applications. It provides a cost-effective solution for connecting QSFP28 ports to four SFP28 ports, supporting aggregate data rates of 100 Gbps (4x25 Gbps per lane). This cable is fully compliant with 100GBASE-CR4 and 25GBASE-CR Ethernet standards, ensuring reliable and low-latency connectivity.

Advantages

This breakout cable offers significant advantages over using multiple individual cables, reducing cable clutter and simplifying cable management. Its passive design ensures low power consumption and high reliability, while the AWG26 gauge provides optimal signal integrity over the 1-meter length. The cable is hot-swappable and compatible with Intel XXV4DACBL1M equipment, making it an ideal choice for upgrading or expanding network infrastructure.

Suitable for

• Data center top-of-rack (ToR) to server connections
• High-performance computing (HPC) clusters
• Network interconnect between switches and routers
• Storage area networks (SAN) requiring high bandwidth

Key specifications

• Cable Type: Direct Attach Copper (DAC) Breakout Cable
• Connector A: QSFP28
• Connector B: 4x SFP28
• Data Rate: 100 Gbps aggregate (4x 25 Gbps per lane)
• Ethernet Standard: 100GBASE-CR4 (A-side), 25GBASE-CR (B-side)
• Cable Length: 1 meter (3.3 ft)
• Wire Gauge: AWG26
• Impedance: 100 Ohm
• Media Type: Copper
• Hot-Swappable: Yes
• Compatibility: Intel XXV4DACBL1M equivalent

Recommendations

For optimal performance, ensure that both ends of the cable are connected to compatible QSFP28 and SFP28 ports. This cable is designed for passive operation and does not require external power. It is recommended for use in controlled environments with proper cable management to avoid bending beyond the minimum bend radius.
