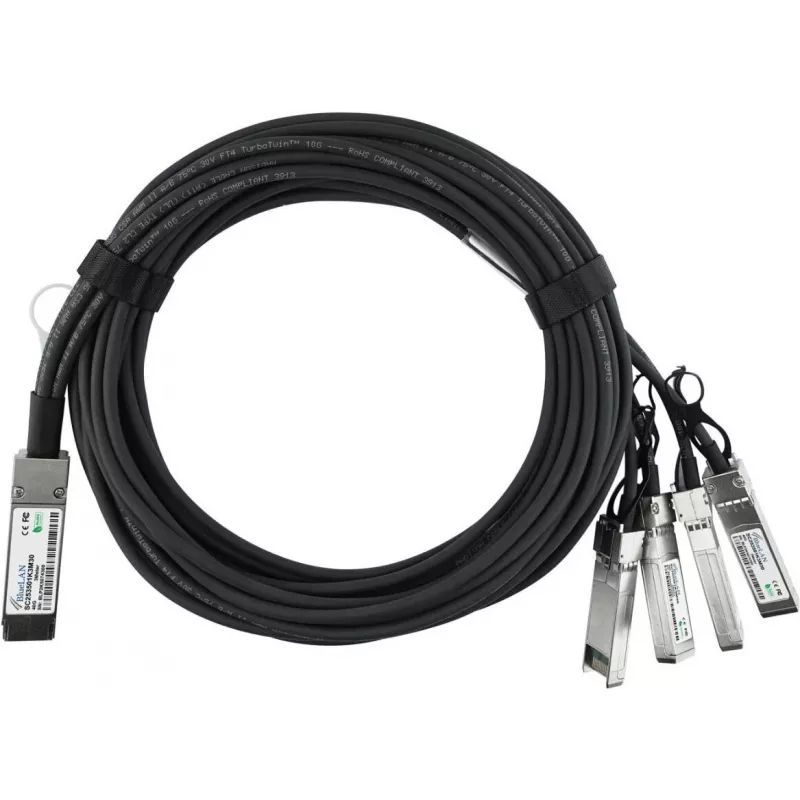

BlueOptics Dell GF37541 BlueLAN Passive 40GBASE-CR4 QSFP to 4x10GBASE-CR SFP+ Direct Attach Breakout Cable, 3 Meter

The BlueOptics Dell GF37541 BlueLAN passive 40GBASE-CR4 QSFP to 4x10GBASE-CR SFP+ Direct Attach Breakout Cable is a high-performance, cost-effective solution for data center and enterprise networking. This 3-meter passive twinax copper breakout cable enables seamless connectivity from a 40 Gbps QSFP port to four 10 Gbps SFP+ ports, ideal for high-density server-to-switch and switch-to-switch interconnects.

Advantages

This breakout cable offers significant advantages over traditional fiber optic solutions, including lower power consumption, reduced latency, and simplified cable management. The passive design ensures zero power draw, while the 30 AWG twinax construction provides reliable signal integrity over the 3-meter length. MSA compliant and compatible with Dell GF37541 equipment, it guarantees interoperability and performance.

Suitable for

• Data center top-of-rack and end-of-row switching
• High-performance computing clusters
• Network storage systems
• Server-to-switch and switch-to-switch interconnects
• 40GbE to 10GbE migration and aggregation

Key specifications

• Cable Type: Direct Attach Breakout Cable (DAC)
• Cable Technology: Passive Twinax Copper
• Cable Length: 3 Meter
• Connector A: QSFP (Quad Small Form-factor Pluggable)
• Connector B: 4x SFP+ (Small Form-factor Pluggable Plus)
• Data Rate Port A: 40 Gbps (40GBASE-CR4)
• Data Rate Port B: 4x 10 Gbps (10GBASE-CR)
• Ethernet Standard: IEEE 802.3ba (40GbE), IEEE 802.3ae (10GbE)
• Compatibility: MSA Compliant, Compatible with Dell GF37541
• Hot-Swappable: Yes
• Power Consumption: Low (Passive)
• Wire Gauge: 30 AWG
• Impedance: 100 Ohm
• Jacket Material: PVC
• Operating Temperature: 0°C to 70°C
• Storage Temperature: -40°C to 85°C

Recommendations

For optimal performance, ensure that both the QSFP and SFP+ ports are compatible with passive DAC cables. This cable is ideal for short-reach interconnects within racks or adjacent racks. For longer distances, consider active optical cables or fiber transceivers.
