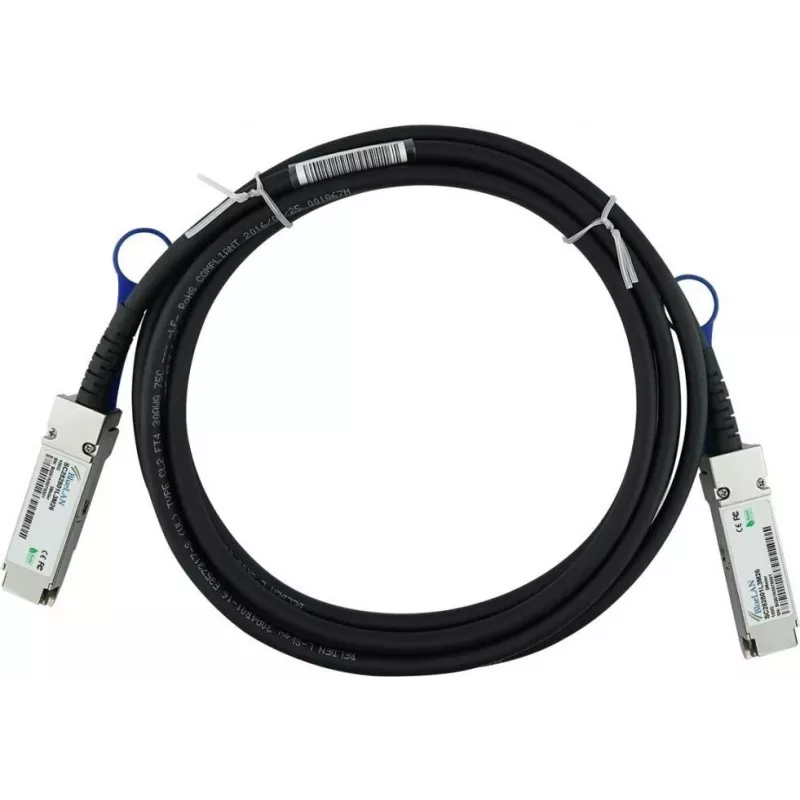

BlueOptics Dell G5XZ1KV BlueLAN SC282801L5M26 QSFP28 Direct Attach Cable, 100GBASE-CR4, 26AWG, 5 Meter

The BlueOptics Dell G5XZ1KV BlueLAN SC282801L5M26 is a high-performance QSFP28 Direct Attach Copper (DAC) cable designed for 100 Gigabit Ethernet applications. This passive copper cable provides a cost-effective and low-power solution for short-range interconnects in data centers and high-performance computing environments.

Advantages

This DAC cable offers reliable 100 Gbps connectivity with minimal power consumption (<0.5W) and low latency. It is MSA compliant, ensuring compatibility with a wide range of networking equipment. The 26 AWG construction and 5-meter length provide flexibility for rack-to-rack and top-of-rack deployments.

Suitable for

• Data center interconnects
• High-performance computing (HPC) clusters
• Network storage systems
• Enterprise networking

Key specifications

• Product Type: Direct Attach Copper (DAC) Cable
• Data Transfer Rate: 100 Gbps
• Ethernet Standard: 100GBASE-CR4
• Cable Length: 5 meters
• Wire Gauge: 26 AWG
• Connector Type: QSFP28 to QSFP28
• Transceiver Type: Passive Copper
• Compatibility: MSA Compliant
• Power Consumption: <0.5W
• Impedance: 100 Ohm
• Number of Lanes: 4
• Cable Material: Copper
• Hot-Swappable: Yes

Recommendations

This cable is an ideal choice for network professionals seeking a reliable and cost-effective 100G interconnect solution. Ensure your equipment supports QSFP28 interfaces and 100GBASE-CR4 standard for optimal performance.
