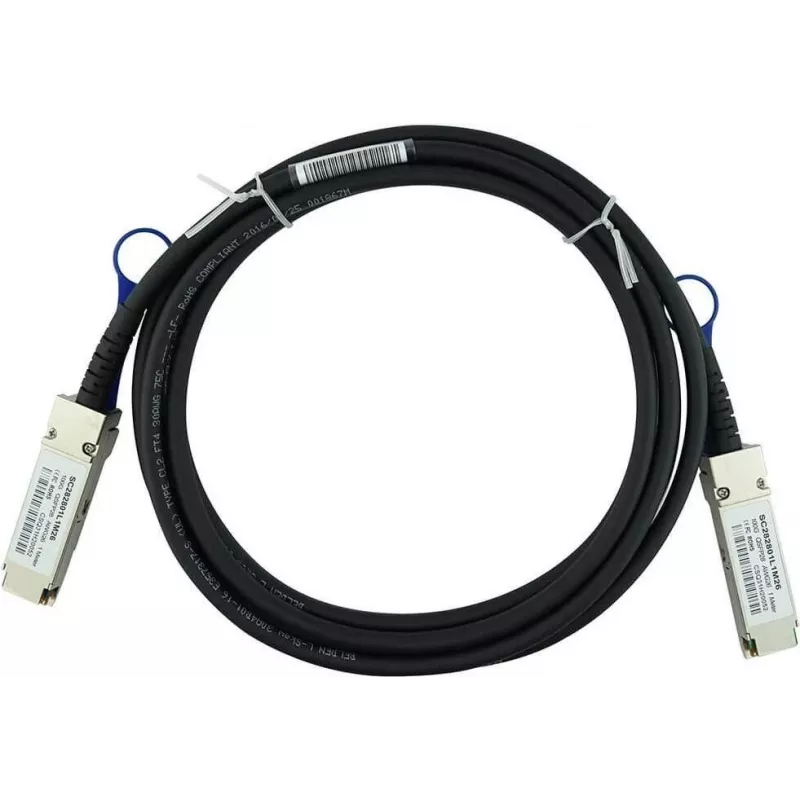

BlueOptics Compatible Palo Alto Networks PAN-QSFP28-DAC-1M Direct Attach Cable, 100GBASE-CR4, InfiniBand EDR, 30AWG, 1 Meter (PAN-QSFP28-DAC-1M-BL)

This BlueOptics compatible Direct Attach Cable (DAC) is designed to replace the Palo Alto Networks PAN-QSFP28-DAC-1M, providing a cost-effective and reliable solution for high-speed data center interconnects. It supports 100GBASE-CR4 Ethernet and InfiniBand EDR, making it ideal for high-performance computing environments.

Advantages

Cost-effective alternative to OEM cables without compromising performance. Passive design ensures zero power consumption and low latency. Hot-swappable QSFP28 connectors allow easy installation and maintenance.

Suitable for

• Data center interconnects
• High-performance computing (HPC) clusters
• Palo Alto Networks networking equipment
• 100GbE and InfiniBand EDR networks

Key specifications

• Product Type: Direct Attach Cable (DAC)
• Cable Type: Passive Copper
• Connector Type: QSFP28 to QSFP28
• Data Rate: 100 Gbps
• Ethernet Standard: 100GBASE-CR4
• InfiniBand Standard: EDR
• Cable Length: 1 Meter
• Wire Gauge: 30 AWG
• Compliance: RoHS, CE, FCC
• Operating Temperature: 0°C to 70°C
• Storage Temperature: -40°C to 85°C

Recommendations

For optimal performance, ensure your network equipment supports QSFP28 interfaces and 100GBASE-CR4 or InfiniBand EDR standards. This cable is a direct replacement for Palo Alto Networks PAN-QSFP28-DAC-1M.
