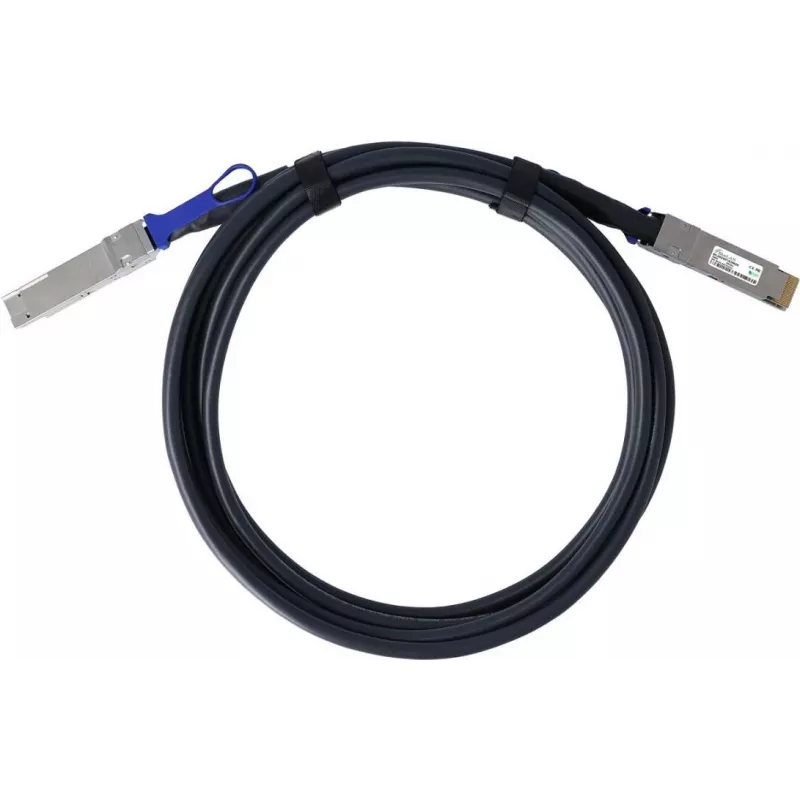

BlueOptics CBL-601-BL Compatible BlueLAN DAC QSFP-DD Active Optical Cable 1 m Black

The BlueOptics CBL-601-BL is a high-performance active optical cable (AOC) designed for InfiniBand HDR and NDR networks. It features QSFP-DD connectors on both ends, delivering up to 400 Gb/s data transfer over 1 meter. This cable is ideal for high-performance computing (HPC), data centers, and enterprise networking, offering low power consumption (<4 W) and a durable LSZH jacket.

Advantages

This cable ensures reliable, high-speed connectivity with minimal signal loss. Its active optical design provides longer reach and lower weight compared to copper cables, while the LSZH jacket enhances safety in confined spaces. The OM4 multimode fiber supports high bandwidth for demanding applications.

Suitable for

• High-Performance Computing (HPC) clusters
• Data center interconnects
• Enterprise networking
• InfiniBand HDR and NDR environments

Key specifications

• Cable Type: Active Optical Cable (AOC)
• Connector Type: QSFP-DD to QSFP-DD
• Cable Length: 1 m
• Data Rate: Up to 400 Gb/s
• Fiber Type: OM4 Multimode
• Number of Fibers: 16 (8 Tx, 8 Rx)
• Power Consumption: < 4 W
• Jacket Material: LSZH
• Operating Temperature: 0°C to 70°C
• Compliance: RoHS, CE, FCC

Recommendations

For optimal performance, pair this cable with compatible QSFP-DD transceivers and ensure proper handling to avoid fiber damage. This cable is a direct replacement for OEM BlueLAN DAC cables.
