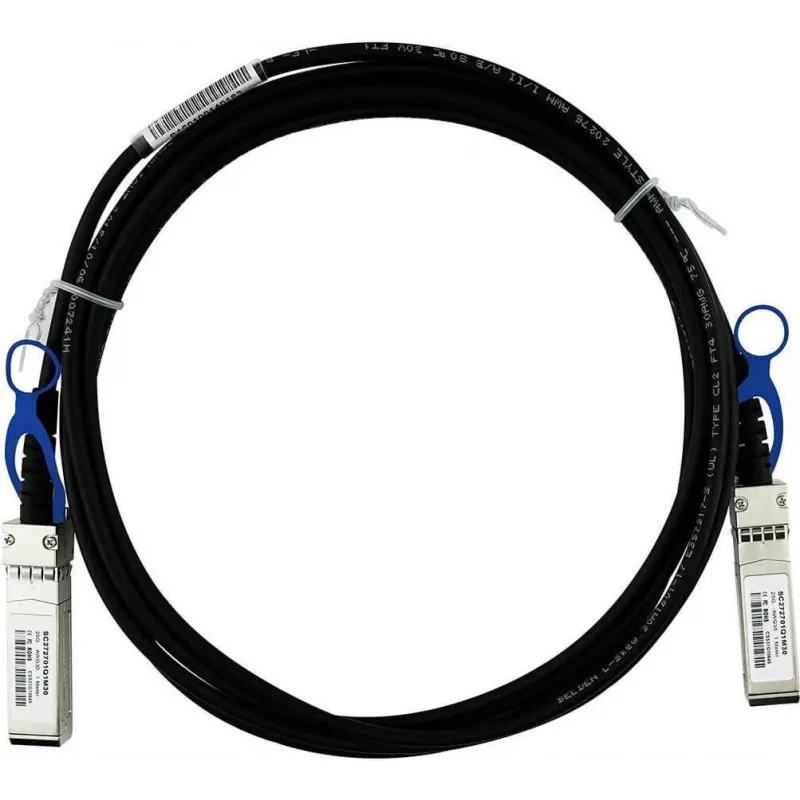

BlueOptics Amphenol NDCCGF-0006 Compatible BlueLAN 25GBASE-CR Passive SFP28 Direct Attach Cable, 0.5m, AWG30

The BlueOptics Amphenol NDCCGF-0006 compatible BlueLAN DAC is a high-performance passive copper direct attach cable designed for 25 Gigabit Ethernet connections. It provides a cost-effective and low-power solution for short-range interconnects in data centers and enterprise networks.

Advantages

This passive SFP28 to SFP28 cable eliminates the need for separate transceivers, reducing cost and power consumption. It is hot-swappable and offers ultra-low latency, making it ideal for high-density environments. The 0.5-meter length is perfect for top-of-rack or adjacent rack connections.

Suitable for

• Data center server-to-switch connections
• Rack interconnect within the same or adjacent racks
• 25GBASE-CR compliant networks
• High-performance computing clusters

Key specifications

• Product Type: Direct Attach Cable (DAC)
• Cable Type: Passive Copper
• Data Rate: 25 Gbps
• Ethernet Standard: 25GBASE-CR
• Connector Type (A): SFP28
• Connector Type (B): SFP28
• Cable Length: 0.5 Meter
• Wire Gauge: AWG30
• Compatibility: Amphenol NDCCGF-0006
• Hot-Swappable: Yes
• Power Consumption: Passive (Ultra-low)
• Impedance: 100 Ohm
• Standards Compliance: SFF-8402, SFF-8431, IEEE 802.3by
• Operating Temperature: 0°C to 70°C
• Storage Temperature: -40°C to 85°C
• RoHS Compliant: Yes

Recommendations

For optimal performance, ensure that both ends of the cable are connected to compatible SFP28 ports. This cable is designed for indoor use only and should be handled with care to avoid damage to the connectors.
