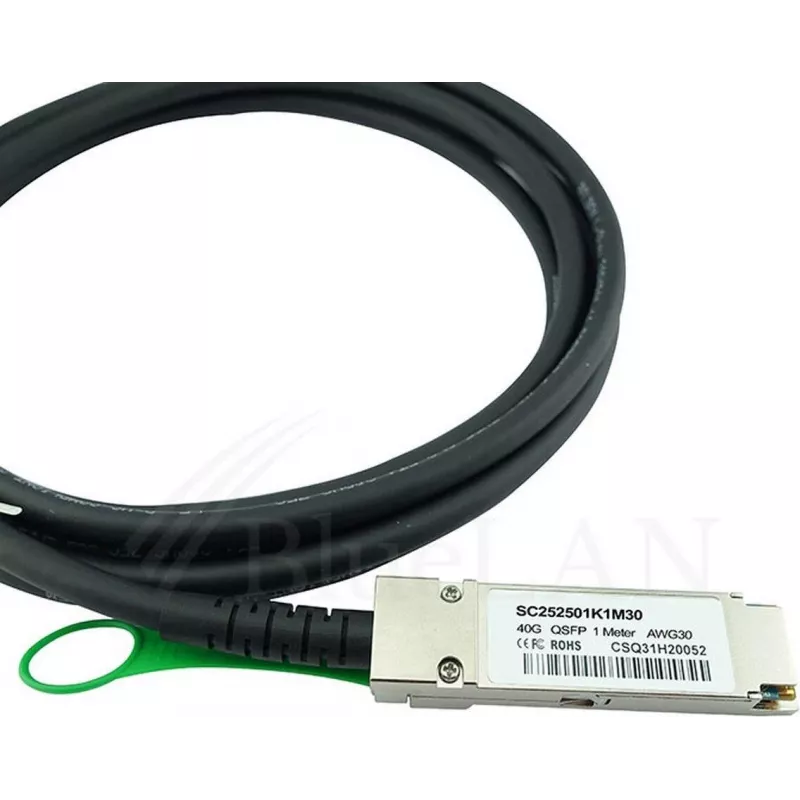

BlueOptics Alcatel-Nokia 3HE08590AA Compatible BlueLAN QSFP Direct Attach Cable, 40GBASE-CR4, 1m, 30AWG

The BlueOptics Alcatel-Nokia 3HE08590AA compatible BlueLAN QSFP Direct Attach Cable (DAC) is a high-performance, passive copper cable designed for 40 Gigabit Ethernet and InfiniBand QDR applications. With a length of 1 meter and 30 AWG wire gauge, it provides a reliable, low-latency connection for data center and enterprise networking environments.

Advantages

This DAC cable offers a cost-effective and energy-efficient solution for short-range high-speed interconnects. It is hot-swappable, consumes less than 0.5W, and complies with RoHS, CE, and FCC standards, ensuring both performance and environmental responsibility.

Suitable for

• Data center interconnect
• High-performance computing (HPC)
• Enterprise networking
• Alcatel-Nokia 3HE08590AA compatible switches and routers

Key specifications

• Product Type: Direct Attach Cable (DAC)
• Cable Length: 1 Meter
• Data Rate: 40 Gbps
• Ethernet Standard: 40GBASE-CR4
• Connector Type: QSFP to QSFP
• Cable Type: Passive Copper
• Wire Gauge: 30 AWG
• Supported Protocols: Ethernet, InfiniBand QDR
• Compatibility: Alcatel-Nokia 3HE08590AA
• Form Factor: QSFP (Quad Small Form-factor Pluggable)
• Hot-Swappable: Yes
• Power Consumption: < 0.5W
• Jacket Material: PVC
• Operating Temperature: 0°C to 70°C
• Compliance: RoHS, CE, FCC

Recommendations

For optimal performance, ensure your network equipment supports 40GBASE-CR4 and QSFP form factor. This cable is ideal for short-distance, high-bandwidth connections within racks or adjacent racks.
