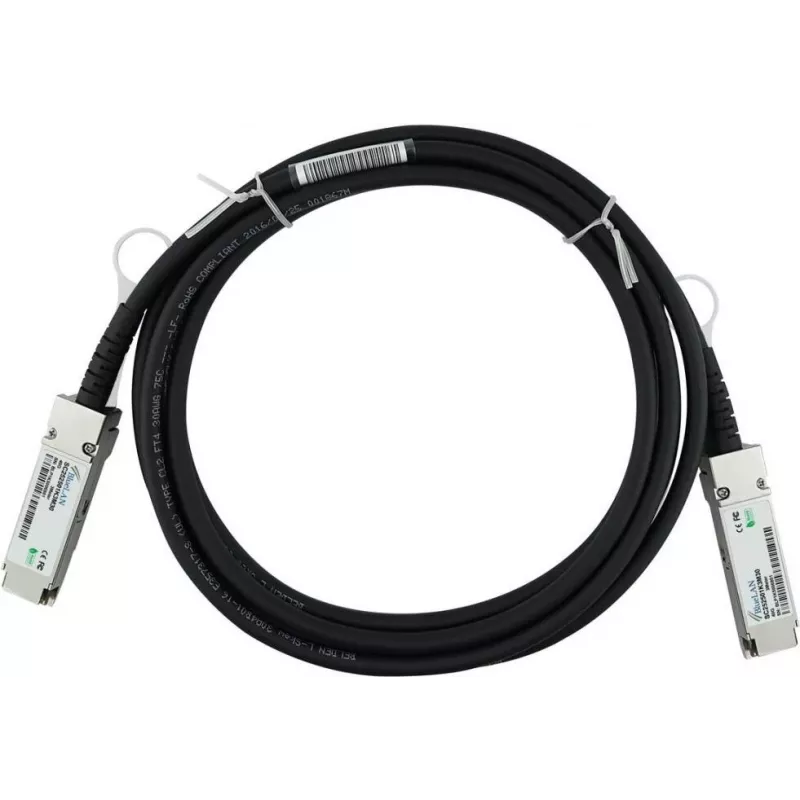

BlueLAN FN-CABLE-QSFP+1-BL Compatible Fortinet QSFP+ Direct Attach Cable, 40GBASE-CR4, 1m, Passive Copper Twinax

The BlueLAN FN-CABLE-QSFP+1-BL is a high-performance, cost-effective direct attach cable (DAC) designed for seamless compatibility with Fortinet networking equipment. This 1-meter passive copper twinax cable delivers reliable 40 Gbps connectivity for data center, HPC, and enterprise networking applications, supporting both Ethernet and InfiniBand protocols.

Advantages

Optimized for Fortinet FN-CABLE-QSFP+1 compatibility, this BlueLAN DAC ensures plug-and-play operation without configuration hassles. Its passive design minimizes power consumption while maintaining signal integrity over short distances, making it an ideal choice for top-of-rack and server-to-switch connections. The cable is hot-swappable and built to IEEE 802.3ba standards, guaranteeing robust performance in demanding environments.

Suitable for

• Fortinet switches, routers, and firewalls requiring QSFP+ connectivity
• 40GBASE-CR4 Ethernet and InfiniBand QDR networks
• Data center interconnects, HPC clusters, and enterprise LANs

Key specifications

• Connector Type: QSFP+ to QSFP+
• Data Rate: 40 Gbps (4x 10 Gbps channels)
• Standard: 40GBASE-CR4, IEEE 802.3ba
• Cable Length: 1 Meter
• Cable Material: Passive Copper Twinax
• Impedance: 100 Ohm
• Operating Temperature: 0°C to 70°C (32°F to 158°F)
• Certifications: RoHS, CE, FCC

Recommendations

For optimal performance, use with Fortinet equipment that supports QSFP+ modules. Ensure proper cable management to avoid bending beyond the minimum bend radius. This cable is a direct replacement for the original Fortinet FN-CABLE-QSFP+1 at a fraction of the cost.
