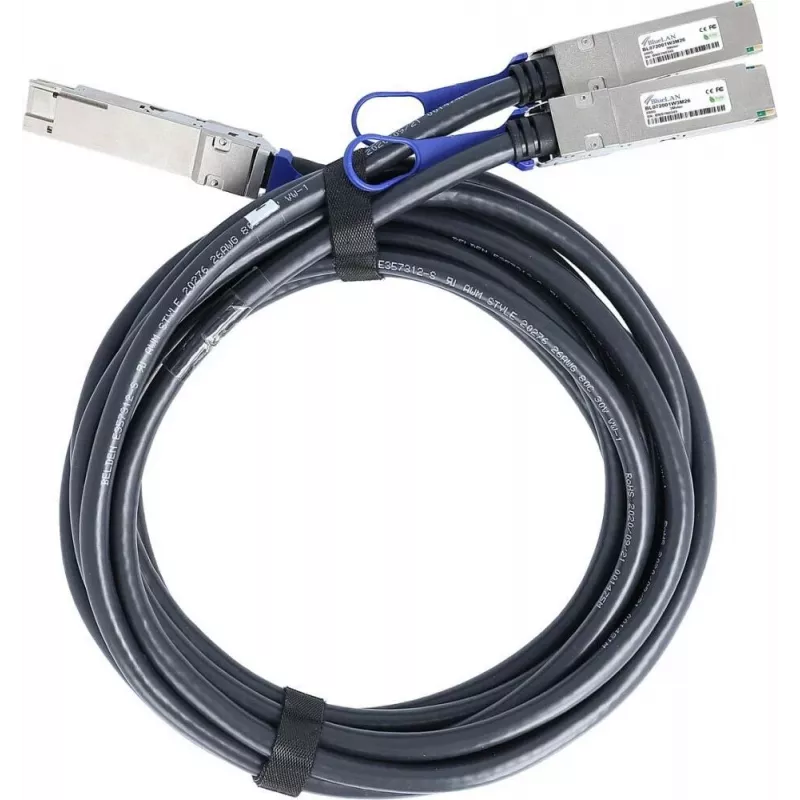

BlueLAN Compatible NVIDIA 980-9I98K-00V01A Passive 200Gb/s QSFP56 to 2x 100Gb/s QSFP56 InfiniBand HDR Direct Attach Breakout Cable, 1.5m, AWG26

This BlueLAN compatible breakout cable is designed for high-performance computing and data center environments, providing a reliable and cost-effective solution for connecting 200Gb/s QSFP56 ports to two 100Gb/s QSFP56 ports. It is fully compliant with NVIDIA 980-9I98K-00V01A specifications and supports InfiniBand HDR (High Data Rate) for ultra-low latency and high bandwidth.

Advantages

Passive copper design ensures low power consumption and cost efficiency. The breakout configuration allows flexible network topology, enabling connection of high-speed switches to multiple endpoints. Hot-swappable connectors simplify installation and maintenance.

Suitable for

• High-Performance Computing (HPC) clusters
• Data center interconnects
• Enterprise networking
• InfiniBand HDR environments

Key specifications

• Cable Type: Direct Attach Breakout Cable (DAC)
• Connector A: 1x QSFP56
• Connector B: 2x QSFP56
• Aggregate Data Rate: 200 Gb/s
• Breakout Configuration: 1x 200Gb/s to 2x 100Gb/s
• Technology: InfiniBand HDR
• Cable Design: Passive
• Length: 1.5 meters
• Wire Gauge: AWG26
• Data Rate per Lane: 50 Gb/s
• Modulation: PAM4
• Jacket Material: PVC
• Operating Temperature: 0°C to 70°C
• Storage Temperature: -40°C to 85°C
• RoHS Compliant

Recommendations

For optimal performance, ensure that both ends of the cable are connected to compatible QSFP56 ports. This cable is ideal for short-distance, high-speed interconnects within racks or adjacent racks.
