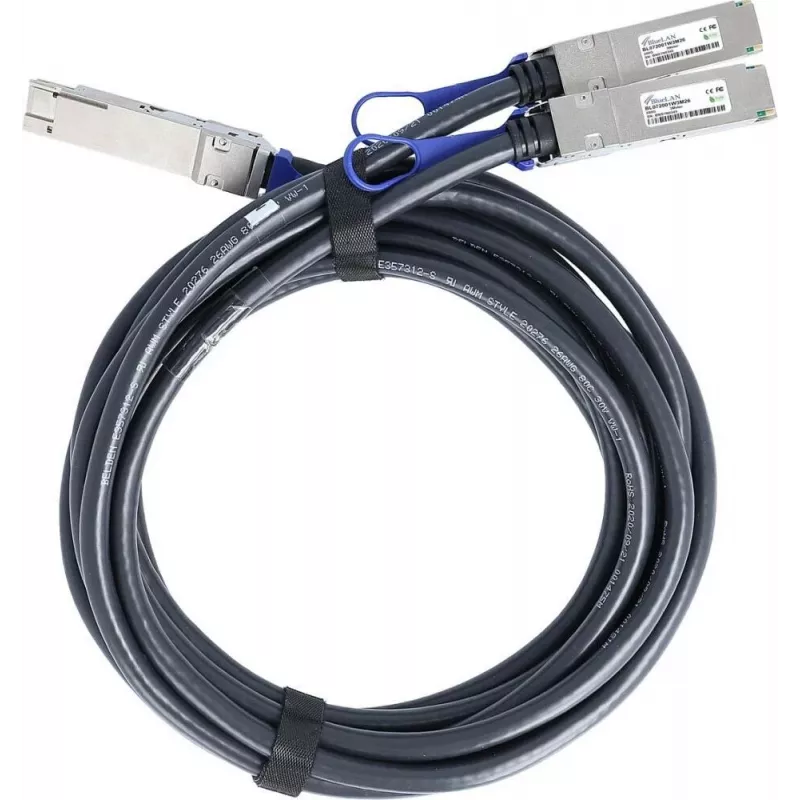

BlueLAN Compatible NVIDIA 980-9I98J-00V003 Passive 200Gb/s QSFP56 to 2x100Gb/s QSFP56 InfiniBand HDR Direct Attach Breakout Cable, 3m, AWG26

The BlueLAN 980-9I98J-00V003-BL is a high-performance passive copper direct attach breakout cable designed for InfiniBand HDR networks. It provides a cost-effective solution for connecting QSFP56 ports to dual QSFP56 ports, enabling 200 Gbps aggregate data rate with breakout to 2x100 Gbps per port. Ideal for data center interconnects and high-performance computing (HPC) environments.

Advantages

Ultra-low latency and low power consumption (<0.1W) ensure efficient operation. The passive copper design requires no external power, reducing complexity and cost. Hot-swappable connectors allow for easy installation and maintenance.

Suitable for

• Data center interconnects
• High-performance computing (HPC) clusters
• InfiniBand HDR networks
• Breakout applications from 200 Gb/s to 2x100 Gb/s

Key specifications

• Cable Type: Direct Attach Cable (DAC), Breakout
• Aggregate Data Rate: 200 Gbps
• Connector A: QSFP56
• Connector B: 2x QSFP56
• Technology Standard: InfiniBand HDR
• Cable Length: 3 meters
• Wire Gauge: 26 AWG
• Cable Design: Passive Copper
• Compatibility: NVIDIA 980-9I98J-00V003
• Per-Port Data Rate: 100 Gbps
• Material: Copper
• Hot-Swappable: Yes
• Electrical Interface: Twinax Copper
• Latency: Ultra-low
• Power Consumption: <0.1W
• Protocol: InfiniBand

Recommendations

For optimal performance, ensure your network equipment supports InfiniBand HDR and QSFP56 interfaces. This cable is a direct replacement for NVIDIA 980-9I98J-00V003 and is fully compatible with BlueLAN systems.
