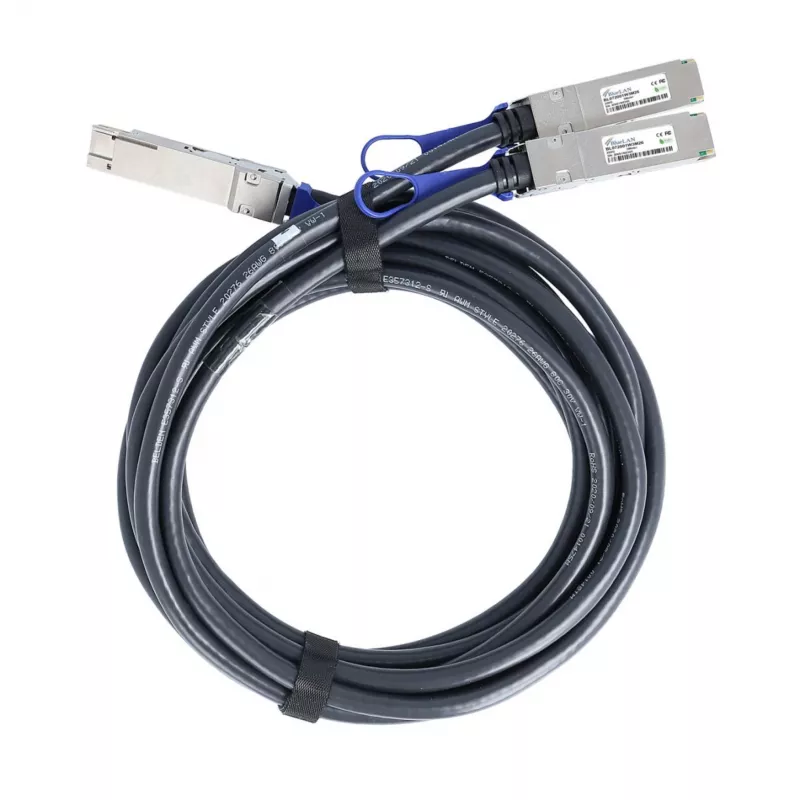

BLUELAN Compatible Mellanox MCP7H50-H002R26 Passive Breakout Direct Attach Cable (DAC) 200G QSFP-DD to 2x100G QSFP28 Twinaxial Copper 2m

The BLUELAN MCP7H50-H002R26-BL is a high-performance passive breakout Direct Attach Cable (DAC) designed for 200 Gigabit Ethernet connectivity. It provides a cost-effective and reliable solution for interconnecting data center equipment, converting a single QSFP-DD port into two 100GbE QSFP28 ports. This twinaxial copper cable is ideal for short-range links within racks or between adjacent racks, ensuring low latency and ultra-low power consumption.

Advantages

This cable offers seamless compatibility with Mellanox MCP7H50-H002R26-based systems, delivering full 200G aggregate bandwidth. The passive design requires no external power, reducing overall energy costs. Its breakout configuration maximizes port utilization and simplifies cable management in high-density environments. The robust construction ensures reliable signal integrity over the 2-meter length.

Suitable for

• Data center interconnects between switches, servers, and storage
• Rack-to-rack and adjacent rack connectivity
• High-performance computing (HPC) clusters
• Telecommunications and enterprise networks requiring 200G to 2x100G breakout

Key specifications

• Product Type: Direct Attach Cable (DAC) - Breakout
• Design: Passive
• Cable Material: Twinaxial Copper
• Aggregate Data Rate: 200 Gbps
• Breakout Data Rate: 2x 100 Gbps
• Connector A: QSFP-DD
• Connector B: 2x QSFP28
• Cable Length: 2 meters
• Impedance: 100 Ohm
• Hot-Swappable: Yes
• Operating Temperature: 0°C to 70°C
• Storage Temperature: -40°C to 85°C
• Compliance: IEEE 802.3bj, SFF-8665, SFF-8636, RoHS

Recommendations

For optimal performance, ensure that both ends of the cable are connected to compatible QSFP-DD and QSFP28 ports. This cable is a direct replacement for the original Mellanox MCP7H50-H002R26 and is fully tested for interoperability. Ideal for upgrading existing 100G infrastructure to 200G while reusing 100G ports.
