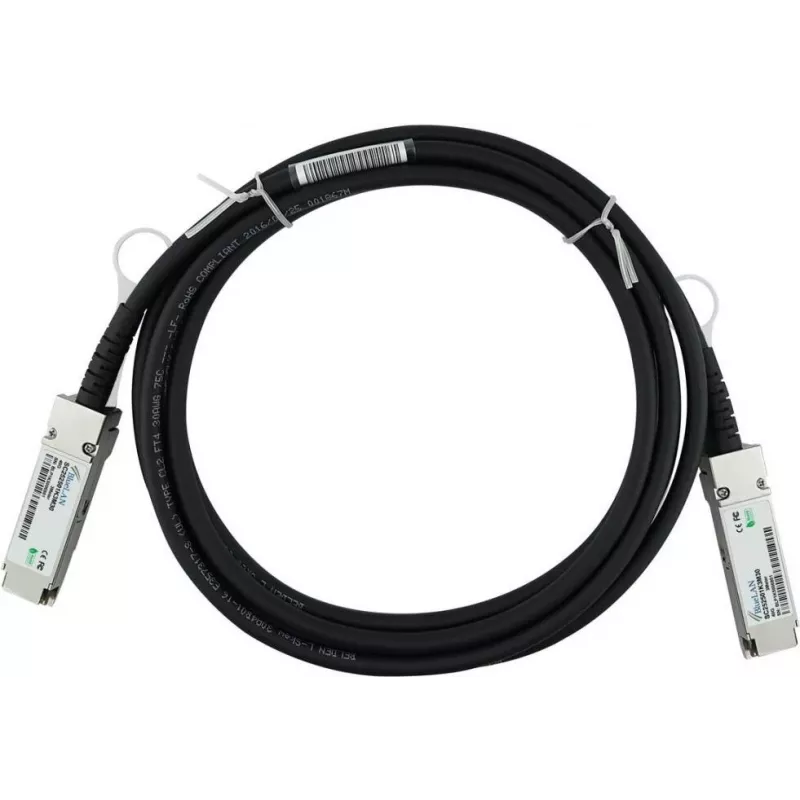

BlueLAN Compatible Dell GYICV8Z QSFP Direct Attach Cable, 40GBASE-CR4, 30AWG, 0.5m

The BlueLAN GYICV8Z-BL is a high-performance, cost-effective QSFP direct attach copper cable designed for 40 Gigabit Ethernet and InfiniBand QDR applications. It is fully compatible with Dell GYICV8Z interfaces and provides a reliable, low-latency connection for data center and high-performance computing environments.

Advantages

This passive DAC cable offers zero power consumption, hot-swappable capability, and a durable PVC jacket. With 30 AWG copper conductors and 100 Ohm impedance, it ensures excellent signal integrity over a 0.5 meter length. The cable is RoHS, CE, and FCC certified, guaranteeing compliance with international standards.

Suitable for

• Data center interconnects
• High-performance computing (HPC) clusters
• Network storage systems
• Dell PowerEdge servers and switches with QSFP 40G ports

Key specifications

• Cable Type: Direct Attach Cable (DAC), Passive
• Connector Type: QSFP to QSFP
• Data Rate: 40 Gbps
• Ethernet Standard: 40GBASE-CR4
• InfiniBand Support: QDR
• Cable Length: 0.5 meters (1.64 feet)
• Wire Gauge: 30 AWG
• Cable Material: Copper
• Jacket Material: PVC
• Impedance: 100 Ohm
• Power Consumption: 0W
• Hot-Swappable: Yes
• Operating Temperature: 0°C to 70°C
• Storage Temperature: -40°C to 85°C
• Certifications: RoHS, CE, FCC
• Color: Black

Recommendations

For optimal performance, use this cable with compatible Dell QSFP 40G ports. Ensure proper handling to avoid damage to the connectors. This cable is ideal for short-reach, high-speed connections within racks.
