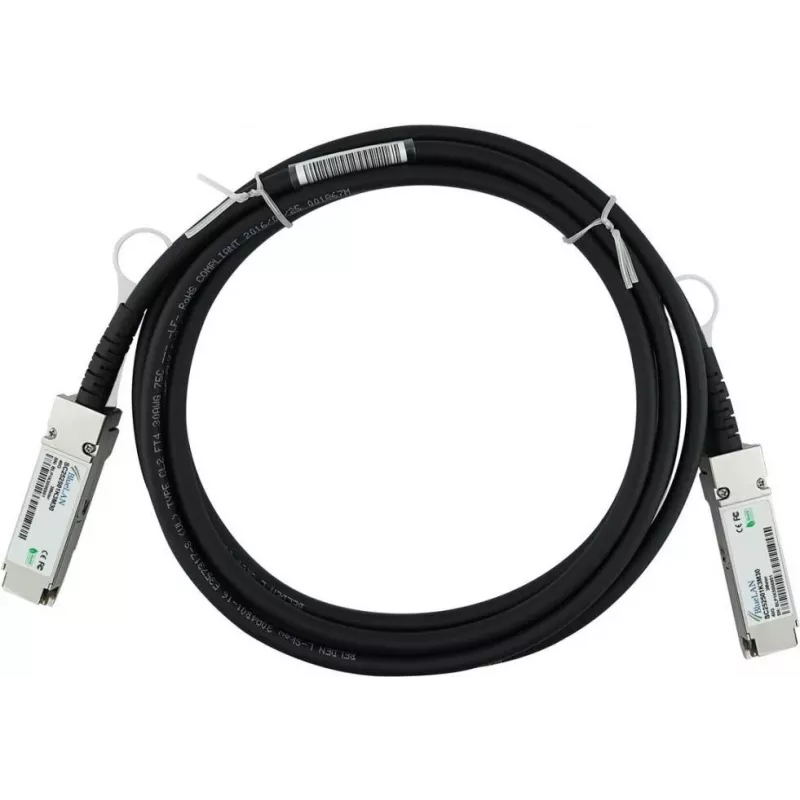

BlueLAN Compatible Dell 470-ABPB QSFP+ Direct Attach Cable, 40GBASE-CR4, 30m, Active Copper

The BlueLAN 470-ABPB-BL is a high-performance QSFP+ Direct Attach Cable (DAC) designed for compatibility with Dell 470-ABPB networking equipment. This active copper cable delivers 40 Gbps data rates over 30 meters, supporting 40GBASE-CR4 Ethernet and InfiniBand QDR protocols. Ideal for data center interconnects and high-performance computing environments, it ensures ultra-low latency and reliable signal integrity.

Advantages

Active signal conditioning for extended reach up to 30 meters; hot-swappable design for easy deployment; low power consumption under 1.5W per end; robust PVC jacket for durability; compliant with RoHS, CE, and FCC standards.

Suitable for

• Data center top-of-rack to server connections
• High-performance computing clusters
• Enterprise network aggregation
• InfiniBand QDR fabric links

Key specifications

• Product Type: Active Copper Direct Attach Cable (DAC)
• Connector Type: QSFP+ to QSFP+
• Data Rate: 40 Gbps
• Ethernet Standard: 40GBASE-CR4
• Cable Length: 30 meters (98.4 ft)
• Cable Material: Copper Twinax, 24 AWG
• Impedance: 100 Ohm
• Power Consumption: < 1.5 W per end
• Operating Temperature: 0°C to 70°C
• Compliance: RoHS, CE, FCC

Recommendations

For optimal performance, pair with compatible QSFP+ ports on Dell switches and servers. Ensure proper cable management to maintain bend radius and airflow.
