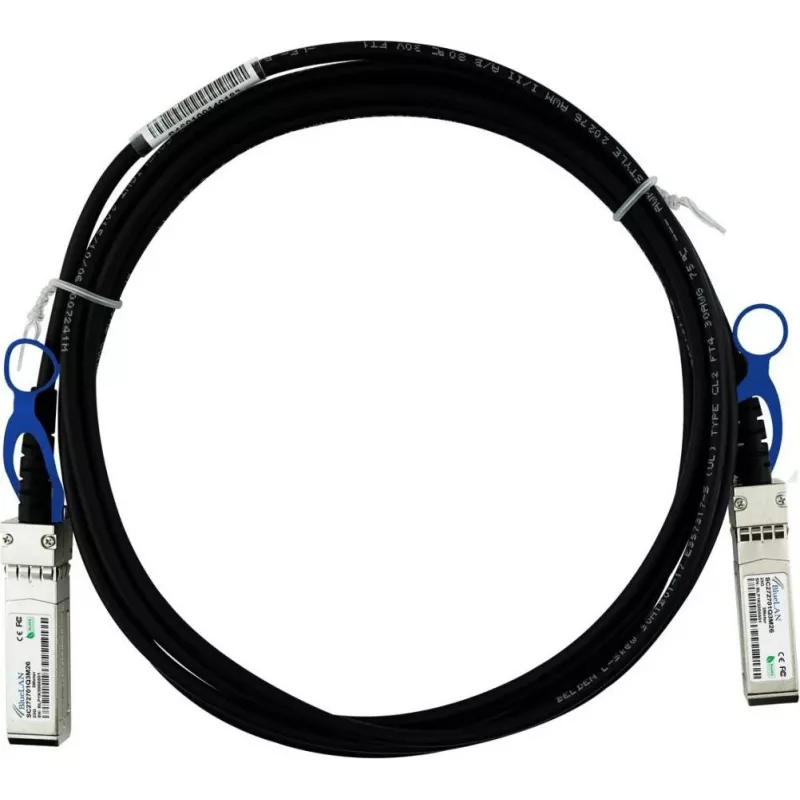

BlueLAN 25GBASE-CR Passive SFP28 to SFP28 Direct Attach Cable, 2 Meter, AWG30, Compatible with Infortrend 9370CM25GCAB4-0030

The BlueLAN 9370CM25GCAB4-0030-BL is a high-performance passive Direct Attach Cable (DAC) designed for 25 Gigabit Ethernet connectivity. This cable is compatible with Infortrend 9370CM25GCAB4-0030 and provides a reliable, low-latency connection for data center and enterprise networking applications.

Advantages

This passive DAC cable offers a cost-effective and energy-efficient solution for short-range 25GBASE-CR connections. With its low power consumption of less than 0.5W and hot-swappable SFP28 connectors, it simplifies deployment and reduces operational costs. The copper twinax construction ensures excellent signal integrity and durability.

Suitable for

• Data center interconnects
• High-performance computing (HPC) clusters
• Enterprise network switches and servers
• Storage area networks (SAN)

Key specifications

• Product Type: Direct Attach Cable (DAC)
• Cable Type: Copper Twinax
• Data Rate: 25 Gbps (25GBASE-CR)
• Connector A: SFP28
• Connector B: SFP28
• Cable Length: 2 Meter
• AWG: AWG30
• Passive Cable
• Compatibility: Infortrend 9370CM25GCAB4-0030
• Standard: IEEE 802.3by (25GBASE-CR)
• Hot Swappable: Yes
• Power Consumption: < 0.5W
• Impedance: 100 Ohm
• Operating Temperature: 0°C to 70°C
• Storage Temperature: -40°C to 85°C
• Compliance: RoHS, CE, FCC
• Material: Copper

Recommendations

For optimal performance, ensure that both connected devices support 25GBASE-CR and SFP28 interfaces. This cable is ideal for short-distance, high-speed connections within racks or adjacent racks.
