Open the door of a comms cabinet and within ten seconds you know how the network behind it is run. A wall of tangled cable means every fault becomes an archaeology dig; a dressed, labelled rack means a technician who has never visited the site can trace any port in under a minute. The difference between those two pictures is rarely budget. It is a patch panel strategy, a modest set of management hardware and the discipline to follow a repeatable workflow.

This guide covers the complete process for building a serviceable rack: selecting patch panels, choosing cable management components, planning the layout on paper, dressing the cables and keeping documentation accurate over the years. The same principles scale from a 9U office cabinet to a 42U distribution rack.

Why a structured rack pays for itself

Cable chaos is not a cosmetic problem. It has a measurable operational cost that shows up in three places. First, mean time to repair: when a link goes down, the slowest part of the fix is usually physical tracing, and in an undressed rack that can take longer than the repair itself. Second, change risk: pulling one cable out of a dense tangle transfers tension to its neighbours, and accidental disconnections during routine moves are among the most common self-inflicted outages in small networks. Third, thermal performance: bundles draped across switch exhausts raise intake temperatures and shorten hardware life.

Every minute spent untangling cable is a minute added to the outage. In a rack dressed to a standard, tracing is visual rather than manual, and mean time to repair drops accordingly.

There is also a commercial angle that is easy to overlook. A documented, tidy rack transfers cleanly during audits, office moves and staff changes. An undocumented one quietly converts into dependency on the one person who built it.

Patch panel fundamentals

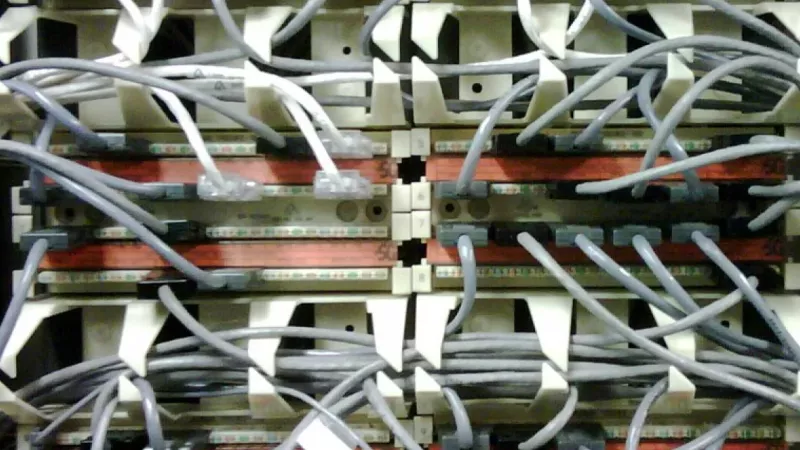

A patch panel is a passive termination field: the fixed horizontal cabling from wall outlets terminates on the rear once, permanently, and all day-to-day changes happen on the front with patch cords. That separation is the whole point. Solid-core installation cable is not designed for repeated flexing, so the panel absorbs the churn and protects the infrastructure behind it.

Fixed panels versus keystone panels

Fixed punch-down panels are economical and fast to terminate in volume, which suits new installations where all 24 or 48 ports go live at once. Keystone panels accept individual snap-in modules, which makes them the better choice for racks that grow gradually or mix media: copper jacks, fibre couplers and other module types can share one panel. Keystones also turn a single failed port into a two-minute module swap instead of a panel replacement.

Shielded or unshielded

Match the panel to the cabling plant. If the horizontal runs are shielded, the panel must be shielded and properly bonded to the rack earth, otherwise the screen behaves like an antenna instead of a drain. For unshielded Cat6 plants in typical office environments, a UTP panel is sufficient and simpler to install correctly.

Port density and growth headroom

The classic mistake is buying exactly the number of ports needed on day one. Terminating a second batch of horizontal cable two years later costs far more in labour than the extra ports would have cost up front. A practical rule: provision 30 to 40 percent spare ports, and buy panels from the same family so the rack stays visually consistent as it grows.

The cable management toolkit

Panels alone do not make a clean rack. Plan for the following components at the same time as the panels themselves:

  • Horizontal cable managers — 1U finger-duct or brush panels installed between every switch and panel pair, giving each patch cord a defined route to its port column.
  • Vertical managers or rack rings — carry bundles up and down the sides of the rack so no cable crosses the equipment face diagonally.
  • Hook-and-loop straps — the standard for bundling patch cords, because they reopen hundreds of times without damage; browse cable ties and hook-and-loop straps in sizes matched to your bundle diameters.
  • Blanking panels and cage nuts — close unused U-space to control airflow; keep spare rack accessories in stock so a reorganisation never stalls for want of a nut.
  • Label printer and cable flags — heat-shrink or self-laminating labels survive years in a warm cabinet; paper stickers do not.

Plan the layout before you rack anything

Sketch the elevation first. Every hour spent on the drawing saves several on the ladder. The core pattern experienced installers converge on is the alternating sandwich: patch panel, horizontal manager, switch, horizontal manager, patch panel, and so on. Each panel port then patches to a switch port directly above or below it through the adjacent manager, and no cord needs to be longer than half a metre.

Cable length discipline

Length is the single biggest determinant of how a rack looks and how it services. A drawer of assorted 2 and 3 metre cords guarantees loops of slack with nowhere to go. Measure the real distances your layout produces, then standardise on two or three lengths — typically 0.25, 0.5 and 1 metre — and order Ethernet patch cables in exactly those sizes, in the colours your coding scheme calls for. Slim 28 AWG cords are worth considering in dense 48-port fields because they roughly halve bundle diameter and improve airflow through the managers.

Colour as information

Colour coding only works if it is enforced and documented. Keep the scheme small enough to remember: for example blue for user access ports, yellow for uplinks, red for management, white for voice. Print the legend and fix it inside the cabinet door, because a scheme that lives in one engineer's head is not a scheme.

A dressing workflow that repeats

  • Stage one — strip. During a maintenance window, document current port assignments, then remove every patch cord. Partial re-dressing of a live tangle takes longer than starting clean.
  • Stage two — mount. Install panels, managers and blanking panels according to the elevation drawing before any patching begins.
  • Stage three — patch by column. Work left to right, routing each cord through the manager fingers, seating it fully and dressing slack into the vertical channel.
  • Stage four — bundle. Close hook-and-loop straps every 15 to 20 centimetres on shared routes. Snug, never tight: a deformed jacket changes the pair geometry that the category rating depends on.
  • Stage five — label and photograph. Label both ends of every cord, update the port map, and photograph the finished faces. The photos become the baseline for the next audit.

Airflow and thermal considerations

Switches breathe. Bundles that sag across side vents or rear exhausts create hot pockets that modern hardware answers with louder fans and shorter component life. Keep the equipment face clear, route bundles through the vertical channels rather than across the rails, and close empty U-space with blanking panels so hot exhaust air cannot recirculate to the intakes. In enclosed cabinets, verify that door perforation is not blocked by the vertical bundles.

Keeping it clean for years

Racks do not decay in a day; they decay one undocumented change at a time. Three habits keep the standard alive. Make the port map part of the change process, so no patch is legitimate until it is recorded. Keep a small stock of correct-length cords and straps inside the cabinet, because the wrong cable gets used when the right one is a purchase order away. And schedule a fifteen-minute visual audit each quarter — compare the rack against the photographs and fix drift while it is still small.

Frequently asked questions

Should the patch panel sit above or below the switch?

Either works; consistency matters more than direction. The alternating panel-manager-switch pattern keeps every cord within half a metre of its destination. In tall racks, many installers place panels above switches so the heavier horizontal bundles enter at the top of the rear and never pass equipment exhausts.

Are angled patch panels worth the cost?

In high-density fields they can eliminate horizontal managers entirely, because ports face the vertical channels and cords fall naturally to the sides. In racks up to a few hundred ports, flat panels with 1U managers are cheaper, easier to label and easier to photograph for documentation, which is why they remain the default.

How much slack should a patch cord have?

Effectively none beyond a gentle service bend. If the cord is the right length, the natural curve into the manager provides all the strain relief needed. Coils of surplus cable belong in the spares drawer, not in the rack.

Can hook-and-loop straps really replace plastic ties inside the rack?

Yes, and they should. Plastic ties are single-use, easy to overtighten to the point of deforming the jacket, and risky to cut off in a live rack. Reserve them for permanent fixed-cable routes outside the service area, and use hook-and-loop for everything a technician might reopen.

Do I need to re-terminate the rear of the panel when reorganising?

No — that is precisely what the panel architecture prevents. The rear termination is permanent infrastructure; all reorganisation happens on the front with patch cords. If a rear termination fails on a keystone panel, swap the single module rather than disturbing its neighbours.

A clean rack is not a luxury project for a quiet week; it is the cheapest insurance a network team can buy. Component costs are modest, the workflow above fits into one maintenance window for a typical office cabinet, and the payback arrives with the first fault traced in a minute instead of an hour. For teams standardising across multiple sites, DistriNode stocks the panels, managers and cords needed to replicate one proven layout everywhere.
