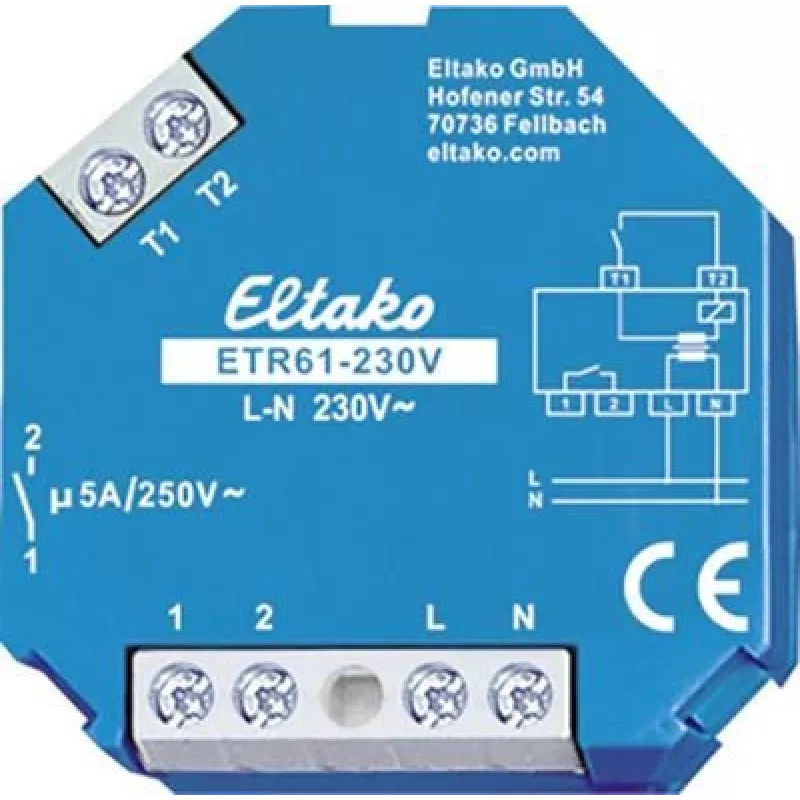

Blind/shutter actuator Eltako ETR61-230V, 230 V input, 5 A current, blue/white

Eltako ETR61-230V is a blind and shutter actuator designed for direct integration into 230 V mains installations. The device controls the movement and position of roller shutters and blinds, supports motors with travel limit switching and provides reliable switching performance for typical domestic and commercial automation circuits. Housed in a blue-and-white enclosure, the actuator is intended for installation in distribution boards or behind switches where space for a compact 230 V control unit is required.

Advantages

The Eltako ETR61-230V offers dependable 230 V switching with a continuous load rating suitable for many motorized roller shutter applications. Its compact form factor and standardized connections make it straightforward to install into existing electrical installations. The device supports travel limit switching for controlled upper and lower end positions and is compatible with common control signals used in blinds and shutter automation.

Suitable for

Key specifications

How to use

Install the actuator in accordance with local electrical regulations and the manufacturer's wiring instructions, placing it in a distribution board or behind a wall switch as required. Connect the 230 V supply and the motor outputs for upward and downward movement, and wire the travel limit or end-position switches if available on the motor. Use the actuator's control inputs to interface with wall switches, timer modules or building automation controllers to command raising, lowering and intermediate positioning. Verify correct operation of travel limits and test switching under load before regular use.

Recommendations

Use the actuator with motorized shutters and blinds matched to the 5 A switching capacity and ensure travel limit switches are set to prevent motor overload. Commissioning and wiring should be performed by a qualified electrician to comply with safety and regulatory requirements.
