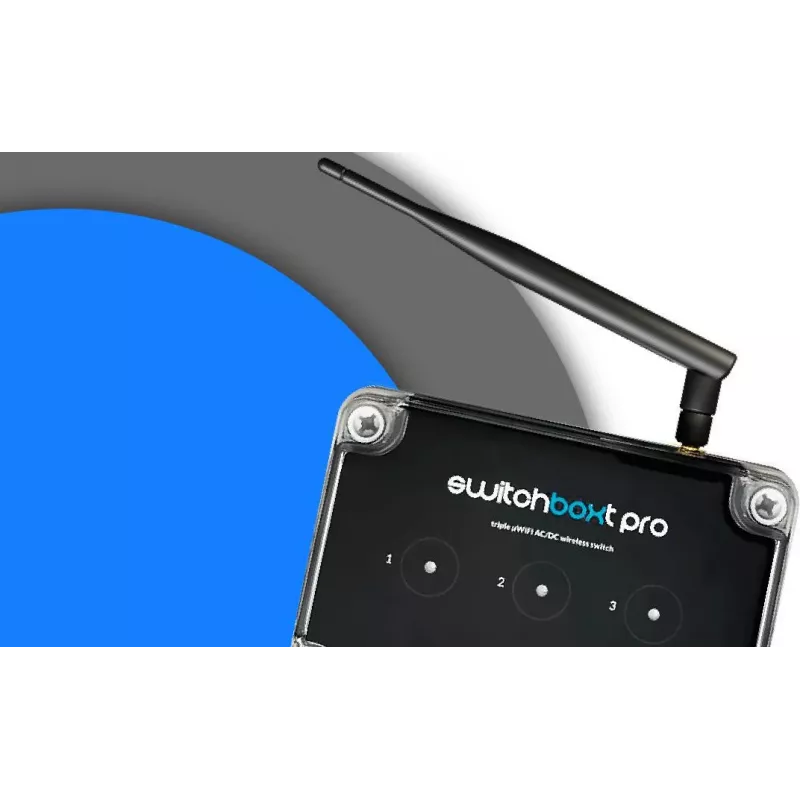

BLEBOX switchBoxT PRO Smart Wi-Fi Switch with Temperature Sensor

The BLEBOX switchBoxT PRO is a smart flush-mount Wi-Fi switch designed for home and building automation. It features a potential-free relay contact (NO/NC) for controlling electrical loads up to 16 A (3680 W) and includes a built-in temperature sensor input compatible with DS18B20 sensors. The device supports control via the wBox app, web browser, local button, REST API, and MQTT, and integrates with Google Home, Amazon Alexa, and Home Assistant.

Advantages

Easy installation in a standard wall box, energy monitoring for connected loads, overload protection, and remote control from anywhere via Wi-Fi. The temperature sensor input allows for temperature-based automation scenarios.

Suitable for

• Smart home automation
• Remote switching of lights, heaters, or other appliances
• Temperature monitoring and control
• Integration with smart home ecosystems

Key specifications

• Connectivity: Wi-Fi 802.11 b/g/n, 2.4 GHz
• Input voltage: 110-230 V AC
• Max output current: 16 A
• Max output power: 3680 W
• Output type: Potential-free relay contact (NO/NC)
• Number of channels: 1
• Temperature sensor input: Yes (DS18B20 compatible)
• Temperature measurement range: -55°C to 125°C
• Temperature measurement accuracy: ±0.5°C (-10°C to 85°C)
• Power consumption: < 1 W
• Operating temperature: -20°C to 50°C
• Mounting type: Flush-mount (in wall box)
• Control methods: wBox app, Web browser, Local button, REST API, MQTT
• Smart home compatibility: Google Home, Amazon Alexa, Home Assistant
• Security: WPA/WPA2
• Enclosure rating: IP20
• Energy monitoring: Yes
• Overload protection: Yes (thermal, current)

Recommendations

For best performance, use a stable 2.4 GHz Wi-Fi network. The temperature sensor input is optional; purchase a DS18B20 sensor separately if needed. Ensure the load does not exceed 16 A or 3680 W.
