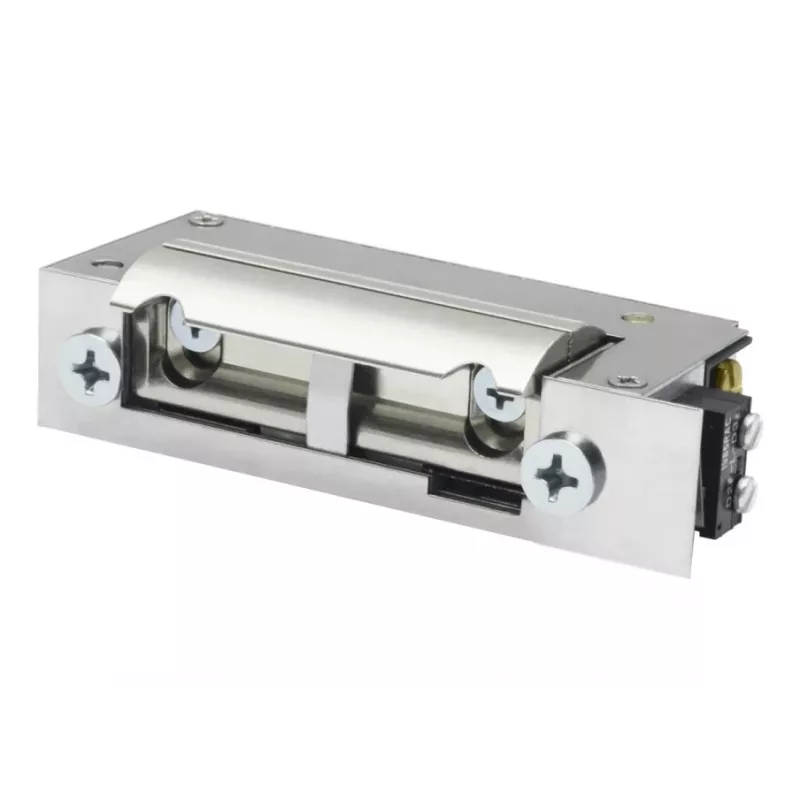

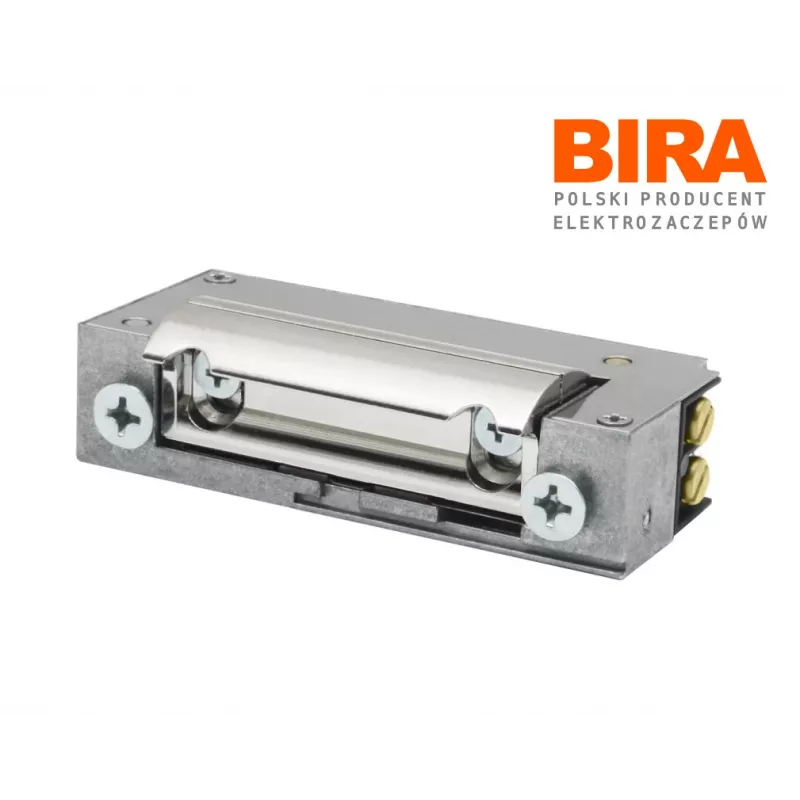

BIRA HARTTE XS12UP Electric Strike Lock 12V AC/DC with Internal Memory, XS Series (R5)

The BIRA HARTTE XS12UP is a high-quality electric strike lock from the XS Series, designed for reliable access control in residential and commercial door entry systems. Operating at 12V AC/DC with internal latching memory, it remains unlocked after a pulse until the door is opened and closed, providing convenient hands-free entry. With a fail-secure mode, the lock stays locked when power is off, ensuring security. Its symmetrical design allows reversible installation for left or right-handed doors.

Advantages

This electric strike offers robust construction with a zinc alloy body and a holding force of 3000 N (approx. 300 kg), ensuring durability and security. The internal memory function simplifies operation, while the low current consumption (250 mA AC / 300 mA DC) makes it energy-efficient. Rated for 300,000 cycles, it provides long-lasting performance in demanding environments.

Suitable for

• Access control systems
• Intercom and door entry systems
• Residential and commercial door frames
• Integration with standard locks and door hardware

Key specifications

• Product Type: Electric Strike Lock
• Operating Voltage: 12V AC/DC
• Functionality: Latching Memory (stays unlocked after pulse until door opens/closes)
• Operating Mode: Fail-Secure (locked without power)
• Current Consumption: 250 mA (AC), 300 mA (DC)
• Holding Force: 3000 N (approx. 300 kg)
• Symmetry: Symmetrical / Reversible (for left/right doors)
• Installation Type: Mortise / Recessed
• Body Material: Zinc Alloy
• Durability: 300,000 Cycles
• Operating Temperature: -20°C to +50°C

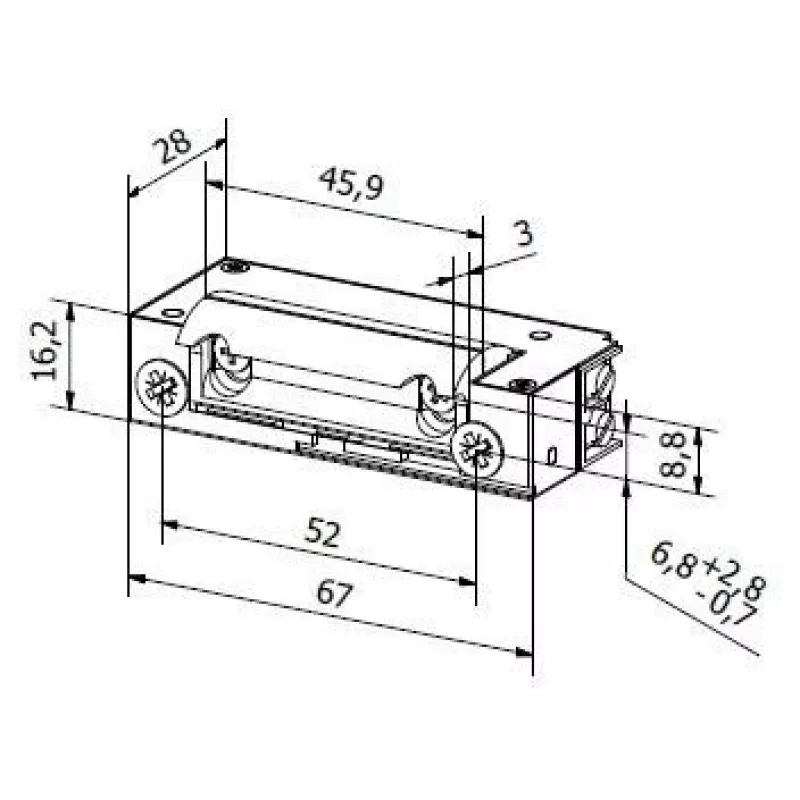

• Body Dimensions (L x W x H): 67 x 20.5 x 28 mm
• Series: XS Series
• Faceplate Included: No (typically sold separately)

Recommendations

For optimal performance, ensure proper wiring and compatibility with your door frame and lock. The faceplate is not included and should be ordered separately if required. Suitable for use with 12V AC or DC power supplies.
