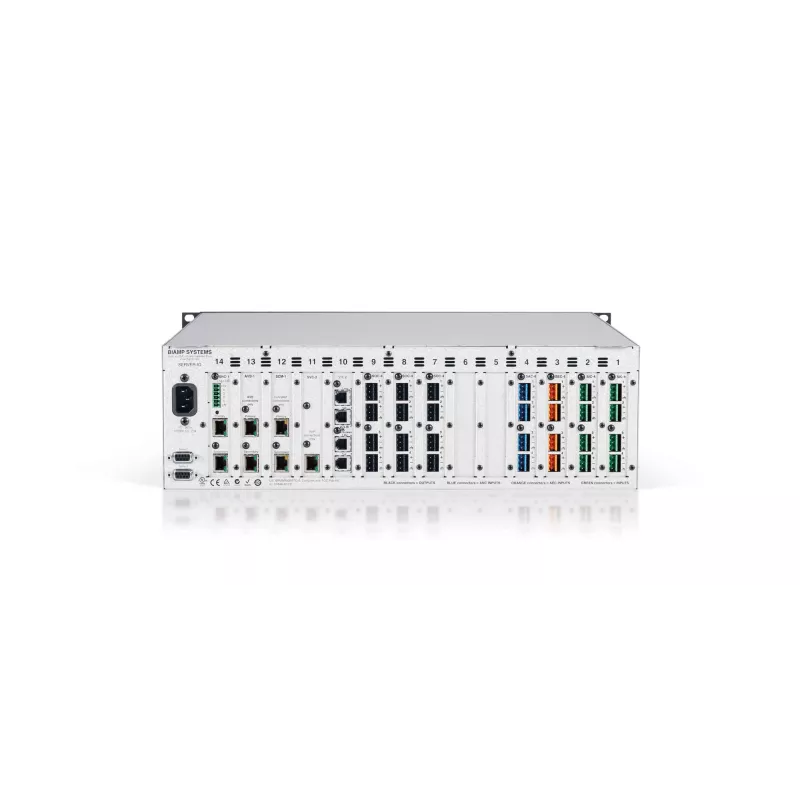

Biamp Tesira SERVER-IO AVB, 8000 Ω, 200 Ω, Black, Metallic, Red, 3U, OLED, 20 - 20000 Hz

Biamp Tesira SERVER-IO AVB, 8000 Ω, 200 Ω, Black, Metallic, Red, 3U, OLED, 20 - 20000 Hz
Biamp Tesira SERVER-IO AVB, 8000 Ω, 200 Ω, Black, Metallic, Red, 3U, OLED, 20 - 20000 Hz
Biamp Tesira SERVER-IO AVB, 8000 Ω, 200 Ω, Black, Metallic, Red, 3U, OLED, 20 - 20000 Hz
Biamp Tesira SERVER-IO AVB, 8000 Ω, 200 Ω, Black, Metallic, Red, 3U, OLED, 20 - 20000 Hz
R176,871
The Tesira SERVER-IO is a digital network server. It is factory configured with one DSP-2 card and is capable of handling up to two additional DSP-2 cards. The SERVER-IO has capacity for up to three total audio networking cards per server. The combinations of networking cards may include one AVB-1 A... Read More
Stock Out Of StockNo Stock Code 2409957 Brand BIAMP Model 912.0301.900 Warranty 2 Years

Shipping & Returns

The Tesira SERVER-IO is a digital network server. It is factory configured with one DSP-2 card and is capable of handling up to two additional DSP-2 cards. The SERVER-IO has capacity for up to three total audio networking cards per server. The combinations of networking cards may include one AVB-1 Audio Video Bridging network cards, up to two SCM-1 CobraNet network cards, and up to two DAN-1 Dante network cards in any configuration. The SERVER-IO can support up to 12 standard Tesira I/O cards for up to 48 channels of audio I/O (e.g. mic and line level, VoIP, and FXO telephone interface). The SERVER-IO can be used as a standalone device or with Tesira expanders to form a highly scalable audio network.

The Tesira SERVER-IO & Tesira SERVER-IO AVB comply with the United States Trade Agreement Act (TAA), allowing it to be included in GSA Schedule contractors’ sales bids for the U.S. federal government.

Biamp Tesira SERVER-IO AVB. Input impedance: 8000 Ω, Output impedance: 200 Ω, Product colour: Black, Metallic, Red. Display type: OLED. Frequency range: 20 - 20000 Hz, Total Harmonic Distortion plus Noise (THD+N): 0.006%, Dynamic range: 108 dB. Supported network protocols: IEEE 802.1X. Power consumption (typical): 150 W, AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz

Key Highlights
  • Supports up to 3 DSP-2 cards
  • Supports up to 12 I/O cards with a maximum of 48 channels of analog audio
  • Up to 420 x 420 channels of digital I/O over AVB
  • Supports optional 32 x 32 CobraNet audio networking
  • Supports optional 64 x 64 Dante audio networking
  • System configuration and control via Ethernet or serial connection
  • Front panel OLED display for device and system information
  • SpeechSense™ and AmbientSense™ processing algorithms
  • Signal processing via intuitive software allows configuration and control for: signal routing and mixing, equalization, filtering, dynamics, delay and much more
  • Extensive input, output and logic expansion devices supported as part of the Tesira digital audio networking platform
  • Rack mountable (3RU)
  • CE marked, UL listed, and RoHS compliant
  • Compliant with the US Trade Agreement Act (TAA)
Specifications
AC input frequency
50/60 Hz
AC input voltage
100 - 240 V
Built-in display
Yes
Certification
FCC Part 15B (USA) FCC Part 68 (USA) Industry Canada CS-03 (Canada) CE marked (Europe) UL and C-UL listed (USA & Canada) RCM (Australia) EAC (Eurasian Customs Union) RoHS Directive (Europe)
Country of origin
United States
Depth
432 mm
Display type
OLED
Dynamic range
108 dB
Export Control Classification Number (ECCN)
EAR99
Frequency range
20 - 20000 Hz
Height
133 mm
Input impedance
8000 Ω
LED indicators
Yes
Output impedance
200 Ω
Package depth
609.6 mm
Package height
609.6 mm
Package weight
11.4 kg
Package width
279.4 mm
Power consumption (typical)
150 W
Product colour
Black, Metallic, Red
Rack capacity
3U
Rack mounting
Yes
Supported network protocols
IEEE 802.1X
Total Harmonic Distortion plus Noise (THD+N)
0.006%
Weight
8.2 kg
Width
483 mm
