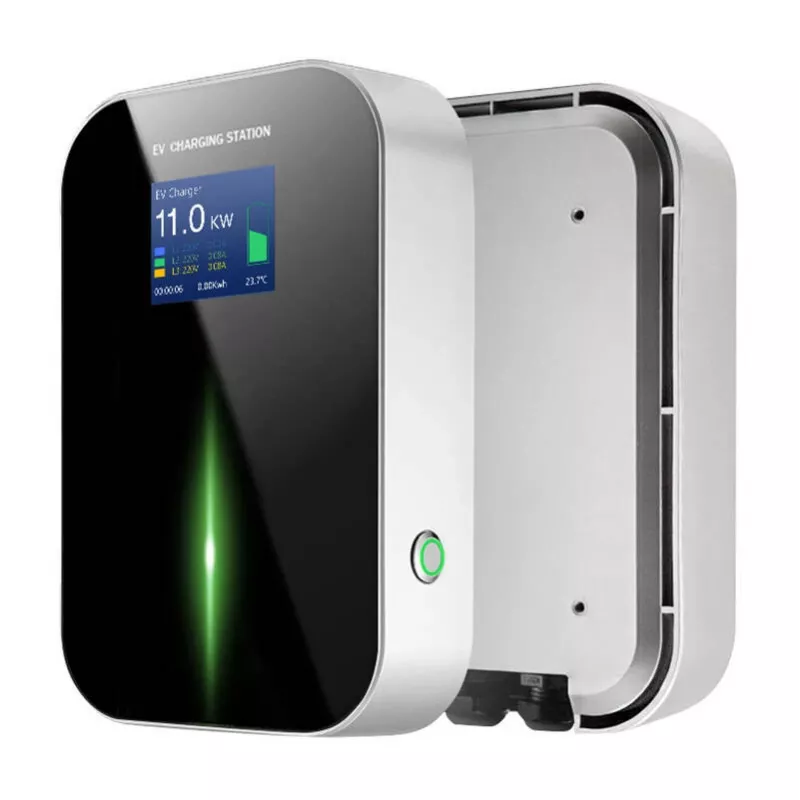

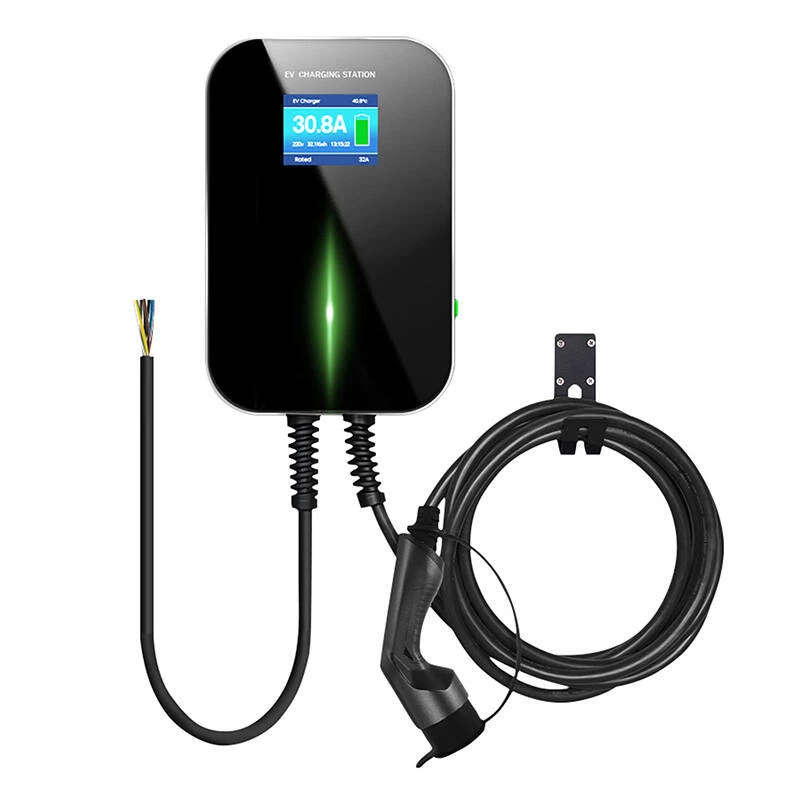

Besen BS20 11kW APP Wall-Mounted Charger for Electric Cars

The Besen BS20 11kW APP Wall-Mounted Charger is a high-performance electric vehicle (EV) charging station designed for residential and commercial use. With 11kW charging power and Type 2 connector, it offers fast and reliable charging for all compatible electric cars. The integrated smart features, including Wi-Fi, Bluetooth, and OCPP 1.6J, allow for remote monitoring and control via a dedicated smartphone app. Built with a robust IP65-rated housing and IK10 impact resistance, this charger is suitable for both indoor and outdoor installations.

Advantages

• Fast 11kW charging with 16A three-phase input
• Smart connectivity: Wi-Fi, Bluetooth, and OCPP 1.6J for app control
• High durability: IP65 waterproof and IK10 impact-resistant
• Integrated RCD protection (Type A + 6mA DC) for enhanced safety
• Adjustable power output via app for flexible charging

Suitable for

• Electric vehicle owners seeking a wall-mounted home charging solution
• Commercial properties requiring reliable and smart EV charging stations
• Installations in outdoor or harsh environments needing high IP/IK ratings

Key specifications

• Charging Power: 11 kW
• Charging Current: 16A (3-Phase)
• Connector Type: Type 2 (IEC 62196-2)
• Input Voltage: 3-Phase 400V AC (±10%)
• Frequency: 50/60 Hz
• Cable Length: 5 meters
• RCD Protection: Type A + 6mA DC
• IP Rating: IP65
• IK Rating: IK10
• Communication: Wi-Fi, Bluetooth, OCPP 1.6J
• User Interface: LED Indicators, Smartphone APP
• Mounting Type: Wall-mounted
• Operating Temperature: -30°C to +55°C
• Housing Material: PC V0 Flame Retardant
• Safety Certifications: CE, RoHS, IEC 61851
• Energy Meter: Integrated
• Authentication: Plug & Charge, APP
• Protection Features: Overload, Leakage, Over/Under Voltage, Grounding, Surge
• Power Adjustment: Adjustable via APP

Recommendations

For optimal performance, ensure your electrical installation supports 3-phase 400V AC. The charger is compatible with all Type 2 equipped EVs. Use the Besen app for convenient scheduling and monitoring.
