Einhell TC-US 380 Stationary Belt and Disc Sander (4419257)

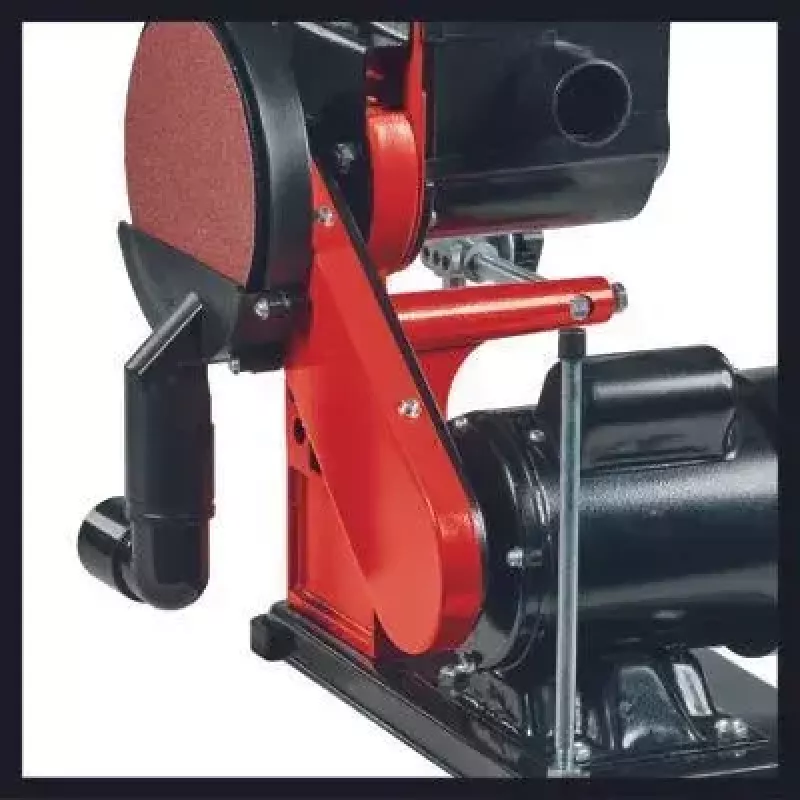

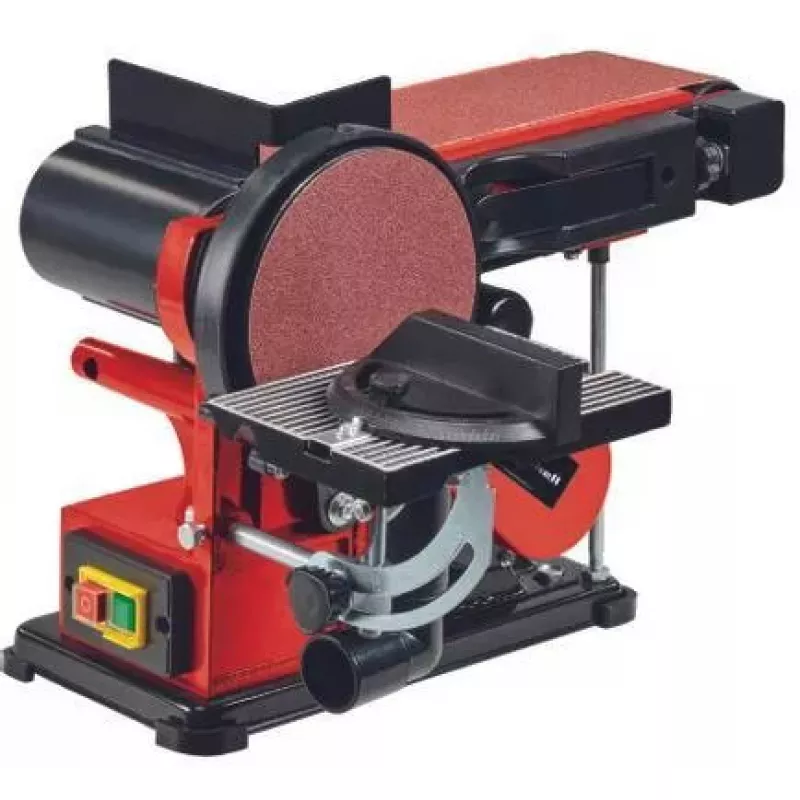

The Einhell TC-US 380 belt/disc sander is a benchtop grinding and sanding tool driven by a 380 W motor. It combines a swiveling belt unit with a 150 mm diameter disc, an adjustable aluminium work table and a cross stop that can be set between -60° and +60°. The machine includes a dust extraction connector and is supplied with one sanding belt and one sanding disc.

Advantages

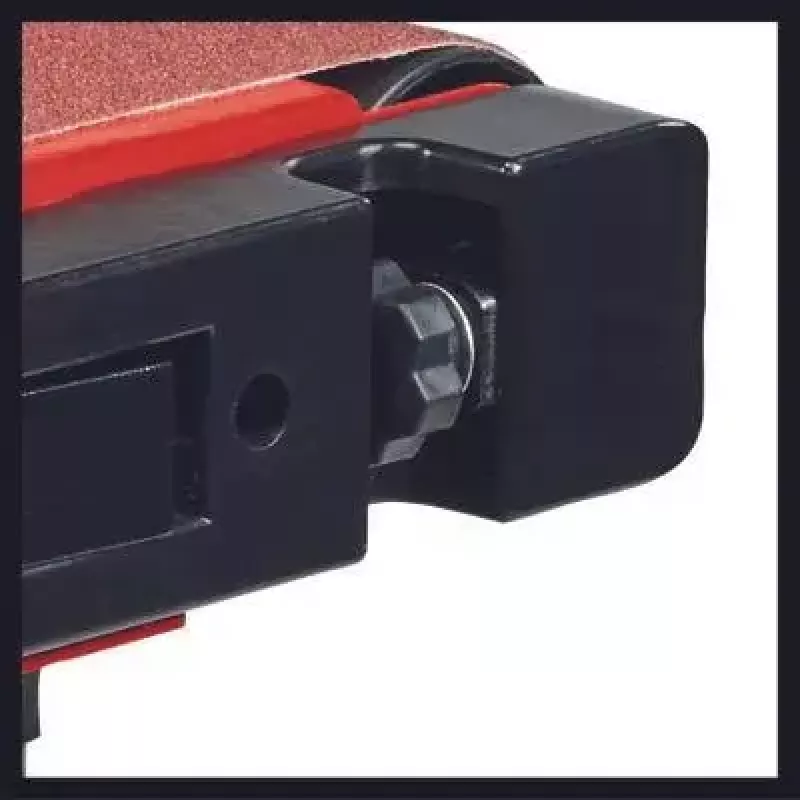

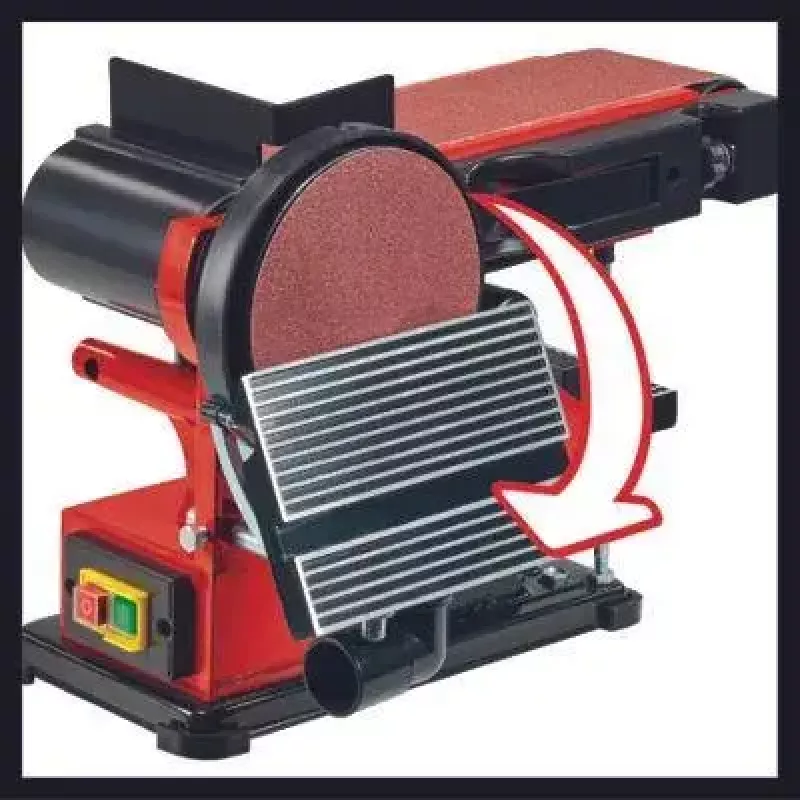

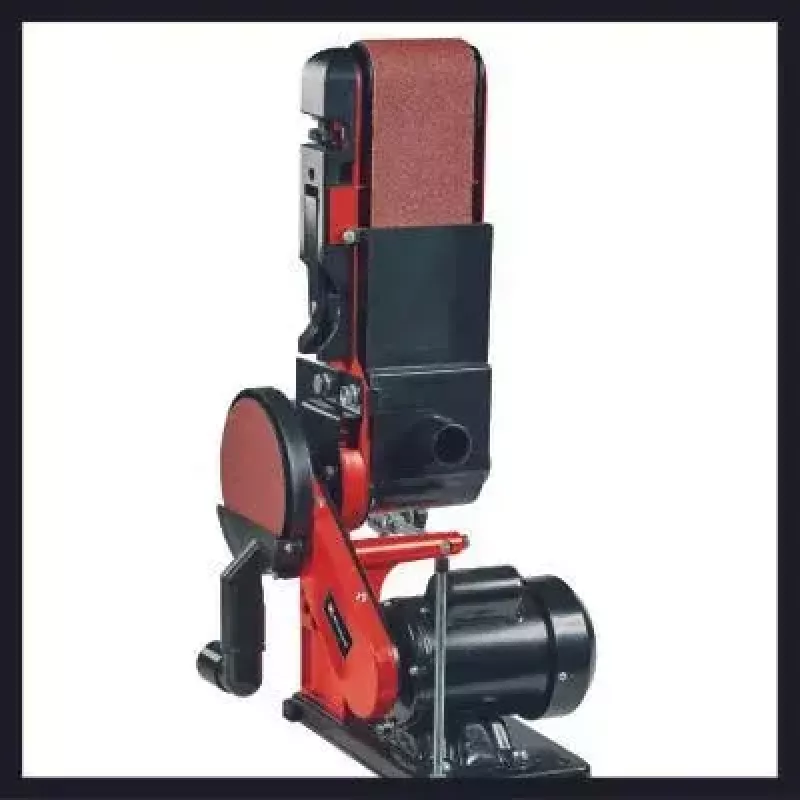

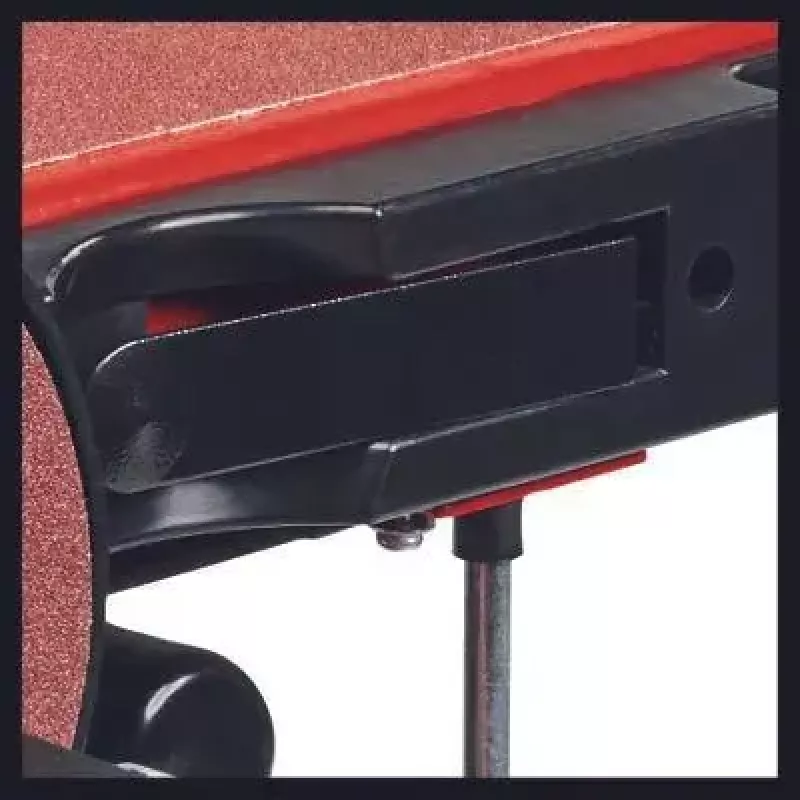

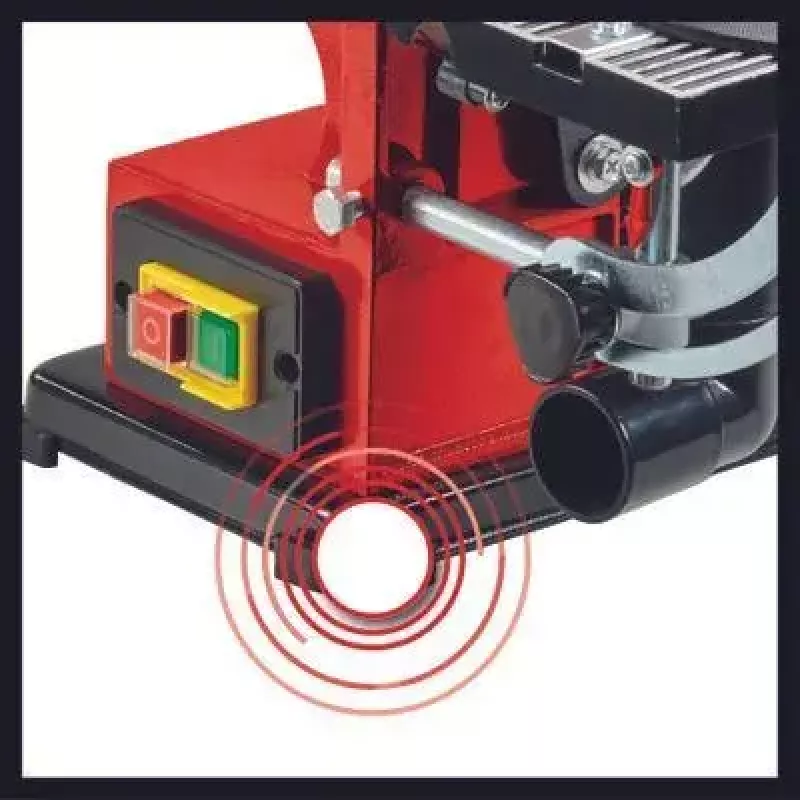

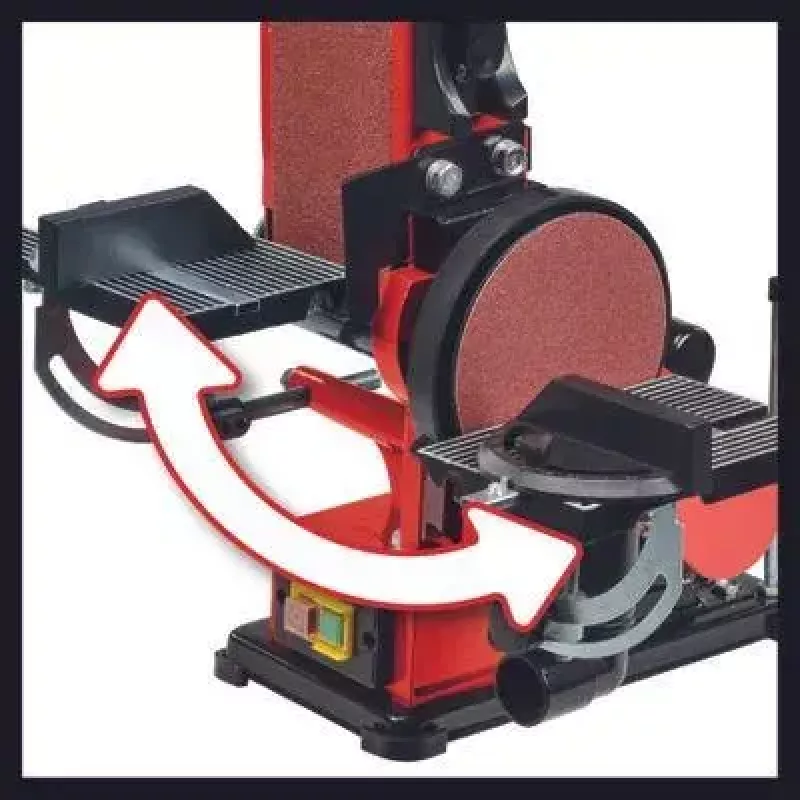

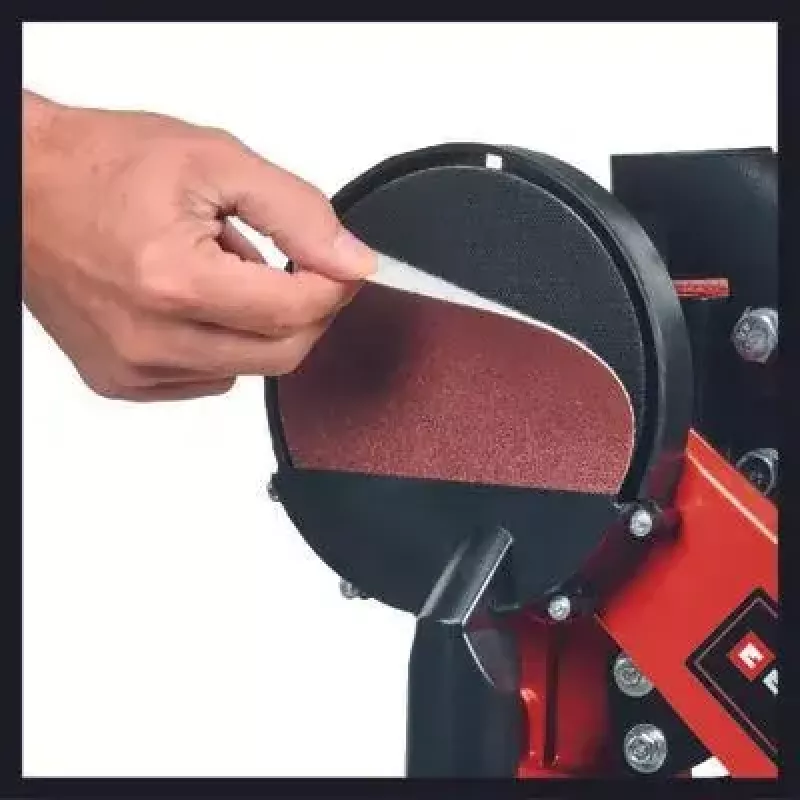

The device offers a swiveling belt sanding unit with workpiece stop and an externally accessible tensioning device for quick, user-friendly belt changes. The disc uses a hook-and-loop fastening system for fast disc-paper replacement. The tilt-resistant aluminium table has an easy-to-read angle scale and the cross stop is continuously adjustable. Four rubber feet reduce vibration and ensure stable positioning. A dust extractor connector helps keep the work area clean.

Suitable for

• Shaping and deburring wood components
• Sanding small metal parts and removing rust
• Edge finishing and surface preparation for painting or gluing
• General workshop sanding and DIY repair tasks

Key specifications

• Motor power: 380 W
• Disc diameter: 150 mm
• Adjustable cross stop angle: -60° to +60°

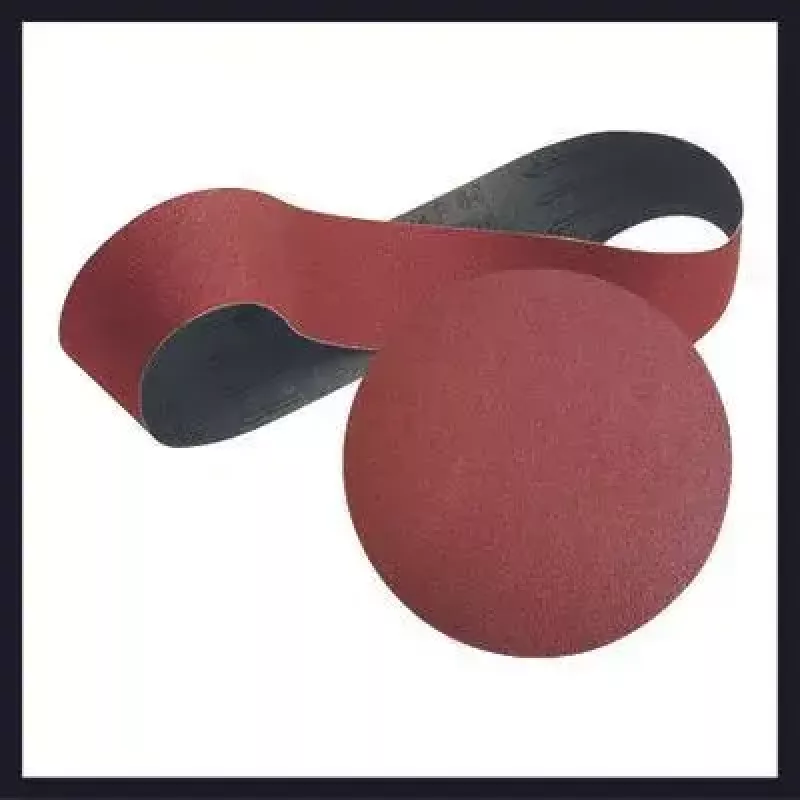

• Includes sanding belt and sanding disc
• Weight: 13.25 kg
• Supply voltage: 230–240 V, 50 Hz

How to use

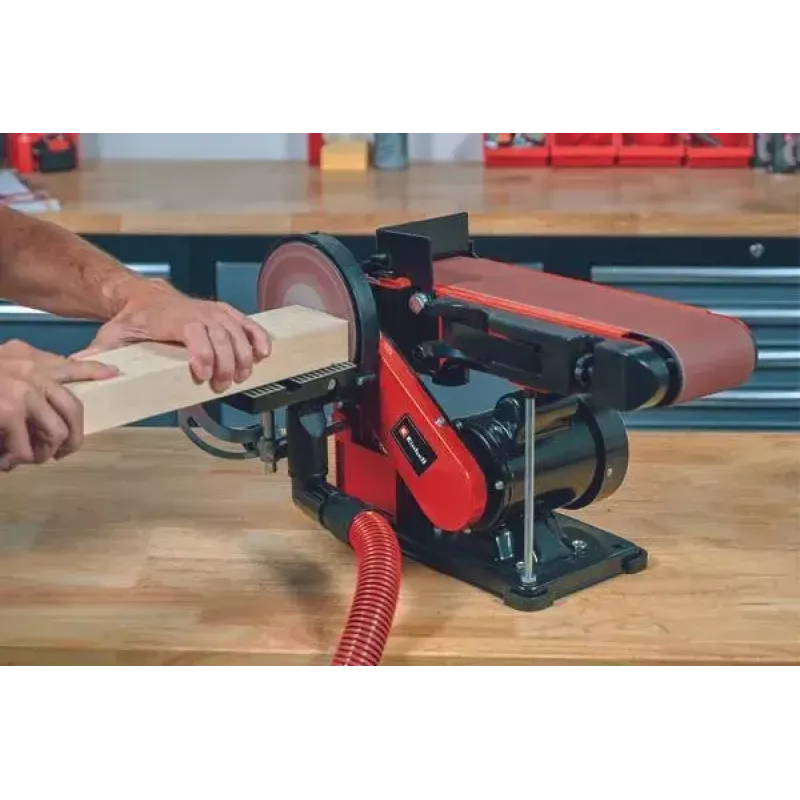

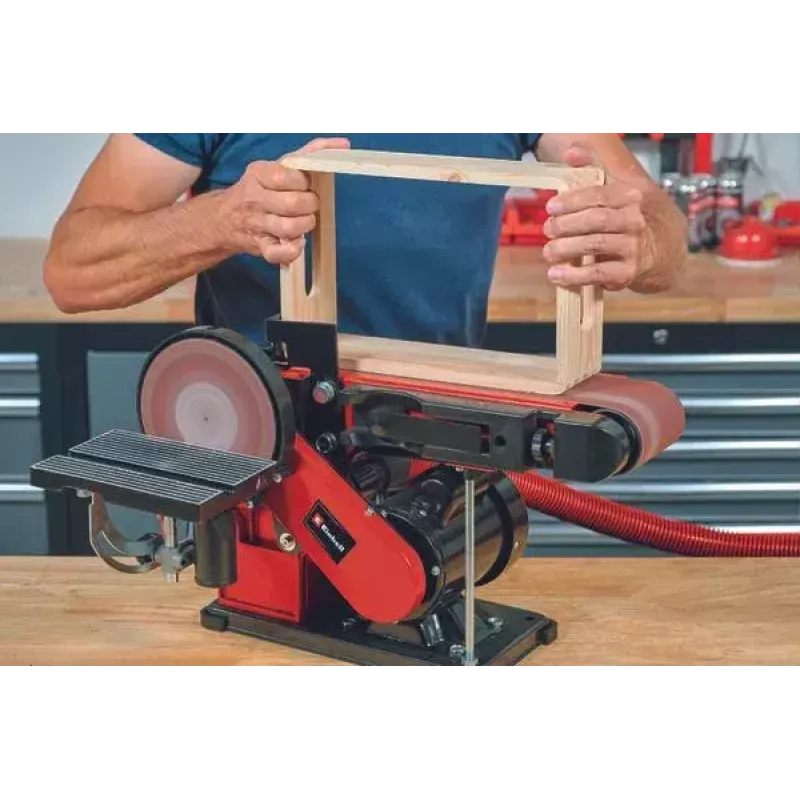

Secure the sander on a stable bench, connect a dust extractor if available, and switch on the machine. For belt sanding, set the belt angle and use the workpiece stop to guide the material; change belts using the external tensioning device and centering mechanism. For disc sanding, tilt the aluminium table as required, attach abrasive paper to the disc via the hook-and-loop fastener and use the cross stop to set the desired angle. Apply workpieces with steady, light pressure and keep movements even to avoid gouging.

Recommendations

Use appropriate personal protective equipment (safety glasses, dust mask and hearing protection). Select grit sizes that match the task (coarser grits for stock removal, finer grits for finishing), secure small workpieces with clamps, and avoid excessive pressure to prolong abrasive life and motor life.
