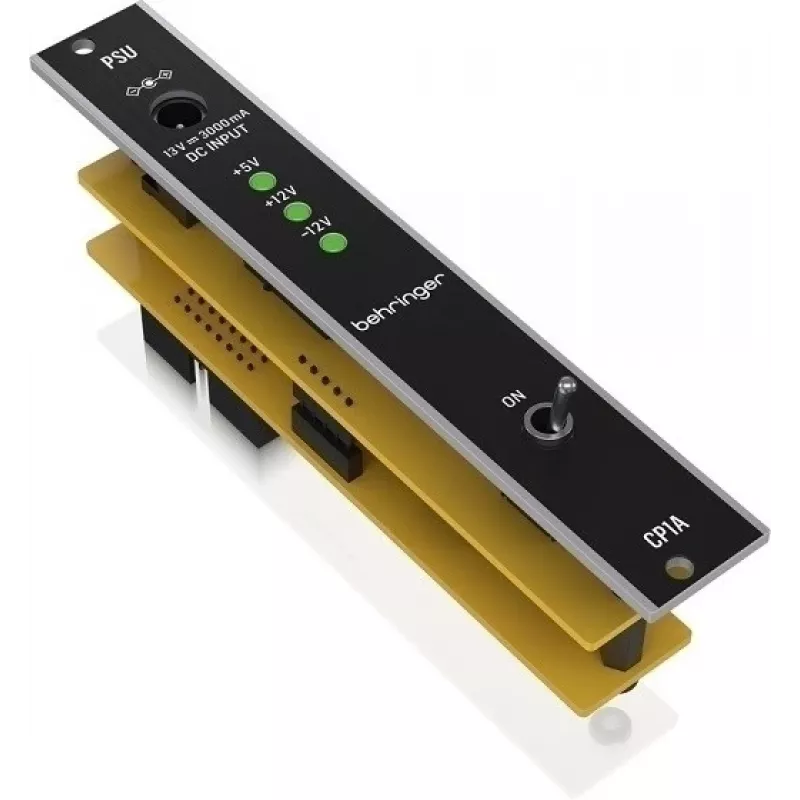

Behringer CP1A Eurorack Power Supply Module (4 HP, 1000mA, +12V/-12V/+5V)

Behringer CP1A Eurorack Power Supply Module (4 HP, 1000mA, +12V/-12V/+5V)
Behringer CP1A Eurorack Power Supply Module (4 HP, 1000mA, +12V/-12V/+5V)
R1,459
The Behringer CP1A is a high-performance Eurorack power supply module designed to deliver clean and reliable power to your modular synthesizer system. With a compact 4 HP footprint, it provides up to 1000 mA on each of the +12V, -12V, and +5V rails, ensuring ample power for a wide range of modules. ... Read More
Stock Out Of StockNo Stock Code 3099140 Brand BEHRINGER Model 000-E5V01-00010 Warranty 2 Years

Shipping & Returns

The Behringer CP1A is a high-performance Eurorack power supply module designed to deliver clean and reliable power to your modular synthesizer system. With a compact 4 HP footprint, it provides up to 1000 mA on each of the +12V, -12V, and +5V rails, ensuring ample power for a wide range of modules. The CP1A features overload, short circuit, and reverse polarity protection, along with a power status LED for easy monitoring. It requires an external 12V DC adapter (not included) and includes two 16-pin shrouded bus board connectors for easy integration into your Eurorack case.

Advantages

Compact 4 HP design saves valuable rack space while delivering robust power. Triple-rail output (+12V, -12V, +5V) with 1000 mA per rail supports diverse module configurations. Built-in protection circuits safeguard your modules against common electrical faults. LED indicator provides clear power status at a glance.

Suitable for

  • Eurorack modular synthesizer systems requiring a dedicated power supply module
  • Expanding existing Eurorack cases with additional power capacity
  • DIY Eurorack cases where a compact, reliable power solution is needed

Key specifications

  • Module Type: Eurorack Power Supply
  • HP Size: 4 HP
  • Max +12V Output Current: 1000 mA
  • Max -12V Output Current: 1000 mA
  • Max +5V Output Current: 1000 mA
  • Input Voltage: 12V DC (External Adapter Required)
  • Input Connector Type: DC Barrel Jack (2.1mm center positive)
  • Number of Bus Board Connectors: 2 (16-pin shrouded)
  • Power Rails Supported: +12V, -12V, +5V
  • Overload Protection: Yes
  • Short Circuit Protection: Yes
  • Reverse Polarity Protection: Yes
  • LED Indicators: Power Status LED
  • Module Depth: 45 mm (1.77 inches)
  • Compatibility: Eurorack Standard
  • Mounting: Standard Eurorack Rail Mounting
  • External Power Adapter: Not Included

Recommendations

For optimal performance, use a high-quality 12V DC power adapter with at least 3A output. Ensure proper ventilation around the module to prevent overheating. Always power off your system before installing or removing modules.

Specifications
Brand
Behringer
Category
AC & DC Power Supply
Circuit Protection
Overload, Short Circuit, Reverse Polarity
Depth (mm)
45
EAN
4033653032063
Height (mm)
128.5
Included Accessories
Power supply module, mounting screws, bus board cable
Input voltage
12V DC
Maximum Output Power
36W
Model
CP1A
MPN
000-E5V01-00010
Nominal Weight
0.1
Power Device Type
Eurorack Power Supply
Power output
36W (12V x 3A)
Product type
Power Supply Module
Weight
0.69 kg
Width (mm)
20.32
