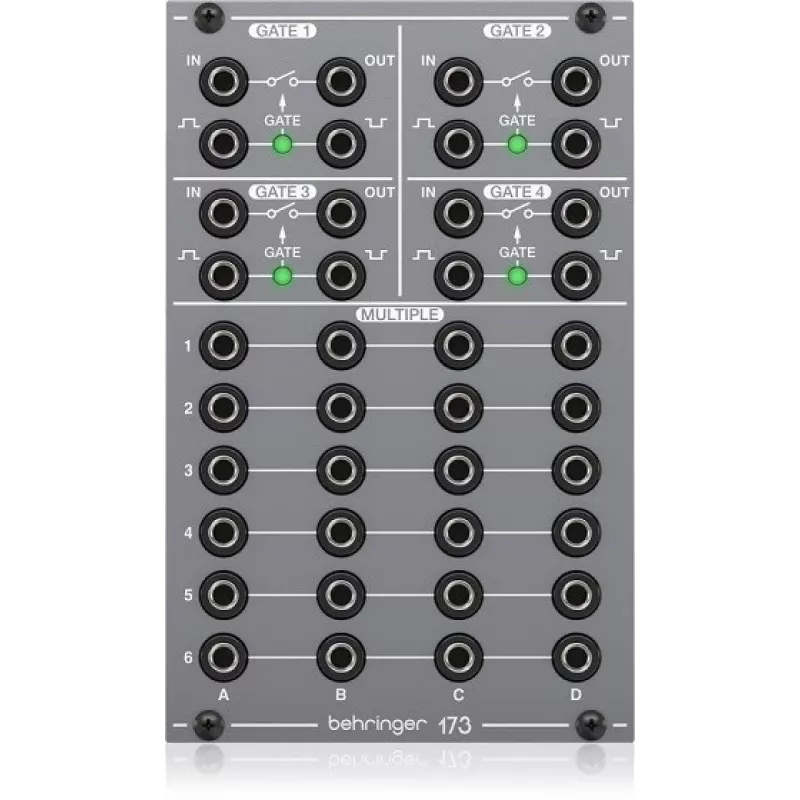

Behringer 173 Quad Gate/Multiples Eurorack Module

The Behringer 173 Quad Gate/Multiples revives the classic Roland System 100m 173 utility module, delivering four independent gate channels and two passive multiples in a single 16 HP Eurorack unit. Unlike many modern modules that pile on features, this one focuses on essential signal routing and gating with straightforward, reliable operation. Each gate channel offers a manual trigger button and a CV input for remote control, while the passive multiples split signals without power draw or degradation. Whether you need to fire envelopes, distribute clocks, or multiply CVs, the 173 keeps your patch clean and your workflow fast.

Highlights

• Four independent gate channels, each with manual trigger button and CV input
• Two passive multiples sections: one 1-to-3 and one 1-to-4 configuration
• Standard 3.5mm TS jacks for all inputs and outputs
• Low power consumption: only 20mA on +12V and 10mA on -12V
• Authentic recreation of the Roland System 100m 173 module
• Includes ribbon power cable and mounting screws for easy installation

In daily use

In a live performance or studio patch, the 173 Quad Gate/Multiples proves indispensable. Use the gate section to manually trigger envelopes, drums, or other events with the push of a button, or feed CV signals to control the gates remotely. The multiples sections allow you to split a single signal to multiple destinations without signal degradation, perfect for distributing clocks, pitch CVs, or audio to several modules simultaneously. The compact 16 HP width fits comfortably in most Eurorack cases, and the passive multiples require no power, making them reliable even in complex patches.

Full specifications

• Module type: Quad Gate / Multiples
• Format: Eurorack
• Module size: 3U
• HP width: 16 HP
• Gate channels: 4 independent
• Gate control: Manual trigger button, CV input per gate
• Gate output type: Trigger/Gate
• Multiples channels: 2 independent passive sections
• Multiples configuration 1: 1 input to 3 outputs
• Multiples configuration 2: 1 input to 4 outputs
• Input/Output connectors: 3.5mm TS jacks
• Power consumption (+12V): 20 mA
• Power consumption (-12V): 10 mA
• Power consumption (+5V): 0 mA
• Function: Signal routing, splitting, and gating for modular synthesis
• Inspired by: Roland System 100m 173 module
• Mounting: Standard Eurorack rails
• Included accessories: Ribbon power cable, mounting screws

Final note

The Behringer 173 Quad Gate/Multiples is a faithful, no-nonsense utility module that brings the classic 100m workflow to your Eurorack system, ensuring you can route and trigger with confidence.
