be quiet! Pure Power 13 M | 550W power supply unit 20+4 pin ATX ATX Black

be quiet! Pure Power 13 M | 550W power supply unit 20+4 pin ATX ATX Black
be quiet! Pure Power 13 M | 550W power supply unit 20+4 pin ATX ATX Black
be quiet! Pure Power 13 M | 550W power supply unit 20+4 pin ATX ATX Black
be quiet! Pure Power 13 M | 550W power supply unit 20+4 pin ATX ATX Black
be quiet! Pure Power 13 M | 550W power supply unit 20+4 pin ATX ATX Black
be quiet! Pure Power 13 M | 550W power supply unit 20+4 pin ATX ATX Black
60 mo.
be quiet! Pure Power 13 M | 550W power supply unit 20+4 pin ATX ATX Black
be quiet! Pure Power 13 M | 550W power supply unit 20+4 pin ATX ATX Black
be quiet! Pure Power 13 M | 550W power supply unit 20+4 pin ATX ATX Black
be quiet! Pure Power 13 M | 550W power supply unit 20+4 pin ATX ATX Black
be quiet! Pure Power 13 M | 550W power supply unit 20+4 pin ATX ATX Black
be quiet! Pure Power 13 M | 550W power supply unit 20+4 pin ATX ATX Black
R2,209
Pure Power 13 M 550W is an ATX 3.1 compliant, PCIe 5.1 compatible power supply with semi-passive cooling designed for reliable operation in desktop systems. The unit includes both a PCIe 5.1 cable and PCIe 6+2 cables, ensuring compatibility with current-generation and next-generation graphics cards ... Read More
Stock 5 Code 32140 Brand BE QUIET Model BP024EU Warranty 5 Years

Shipping & Returns

Estimated delivery Monday, October 5
You will be kept updated through our detailed tracking system
Payment options
EFTPayFastBank CardSnapScanZapperGoogle PayApple PayMobicredMoreTymePay on Arrival

Pure Power 13 M 550W is an ATX 3.1 compliant, PCIe 5.1 compatible power supply with semi-passive cooling designed for reliable operation in desktop systems. The unit includes both a PCIe 5.1 cable and PCIe 6+2 cables, ensuring compatibility with current-generation and next-generation graphics cards while delivering stable 550W power.

Advantages

The PSU provides quiet operation due to its semi-passive cooling, strong compatibility thanks to the included PCIe 5.1 and PCIe 6+2 cables, and adherence to ATX 3.1 standards for modern system requirements. Its feature set focuses on dependable power delivery and broad GPU support.

Key specifications

  • Form factor: ATX 3.1 compliant
  • Power: 550W
  • PCIe compatibility: PCIe 5.1 and PCIe 6+2 cables included
  • Cooling: Semi-passive (fanless under low load)
  • Compatibility: Current-gen and next-gen graphics cards

How to use

Install the Pure Power 13 M 550W into a compatible ATX case and connect the 24-pin motherboard connector, CPU power connector, and the appropriate PCIe cable(s) to the graphics card. Ensure all connections are secure and route cables to maintain airflow. Follow the motherboard and GPU manufacturer's instructions for power requirements and connector orientation before powering on the system.

Recommendations

Verify that your graphics card supports PCIe 5.1 or can use the included PCIe 6+2 connectors, and confirm total system power draw does not exceed 550W under peak load. Use proper case ventilation to maintain optimal cooling.

Key Highlights
  • 80 PLUS® Gold efficiency (up to 93.8%)
  • ATX 3.1 PSU with full support for PCIe 5.1 GPUs and GPUs with 6+2 pin connectors
  • Handles massive power excursions
  • Exceptionally silent semi-passive 120mm be quiet! fan
  • Semi-passive construction for quiet and energy-saving operation
  • LLC technology for advanced stability and voltage regulation
  • One massive high-performance 12V-rail
  • One PCIe 5.1 12V-2x6 300W and 2 PCIe 6+2 connectors for powerful GPUs
  • Full suite of safety features
  • Meets latest requirements for modern standby
  • 550 W 100 - 240 V 50/60 Hz
  • Motherboard power connector: 20+4 pin ATX
  • PC ATX 80 PLUS Gold
  • Active 12 cm 0 - 1800 RPM
  • Black
Specifications
80 PLUS certification
80 PLUS Gold
AC input frequency
50/60 Hz
AC input voltage
100 - 240 V
ATX version
3.1
Bearing technology
Rifle
Cable ties included
Yes

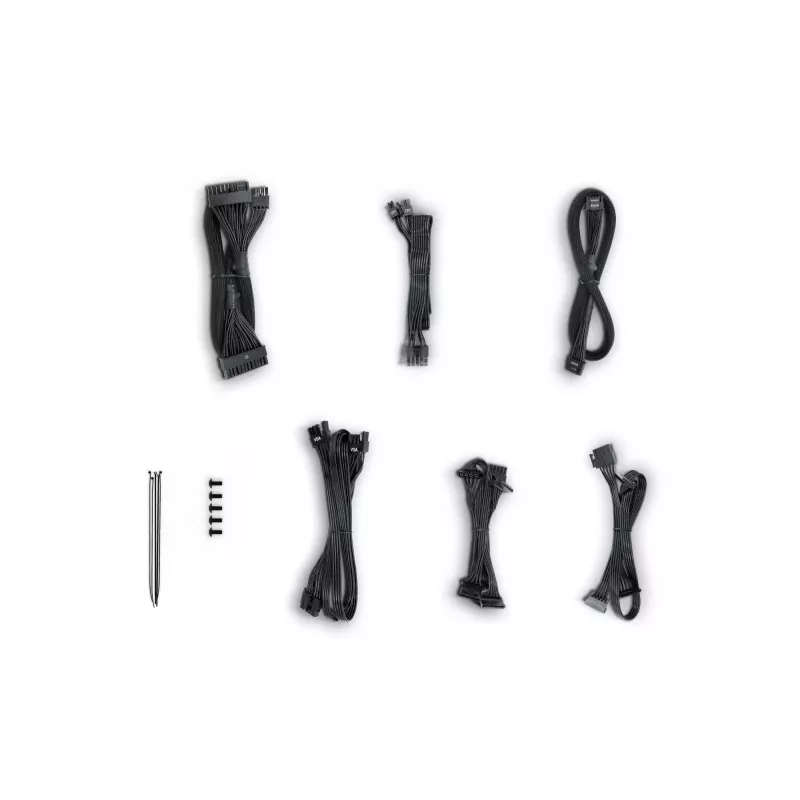

Cables included
AC, CPU, PCIe, Peripheral (Molex), SATA
Cabling type
Fully-Modular
Combined power (+12V)
550 W
Combined power (+3.3V)
120 W
Combined power (+5V)
120 W
Combined power (+5Vsb)
15 W
Combined power (-12V)
3.6 W
Compliance certificates
BSMI, CB, CCC, CE, Federal Communications Commission (FCC), IRAM, RCM, RoHS, TÜV mark, UKCA, WEEE, cTUVus
Cooling type
Active
CPU P4 connector (4-pin)
2
CPU power cable length
65 cm
CPU power connector (4+4 pin)
Yes
Depth
160 mm
Efficiency
92.1%
EPS version
2.92
Fan diameter
12 cm
Fan speed
0 - 1800 RPM
Height
86 mm
Hold time
21.68 ms
Max output current (+12V1)
45.8 A
Max output current (+3.3V)
20 A
Max output current (+5V)
20 A
Max output current (+5Vsb)
3 A
Max output current (-12V)
0.3 A
Maximum input current (@110V)
10 A
Maximum input current (@220V)
5 A
Mean time between failures (MTBF)
100000 h

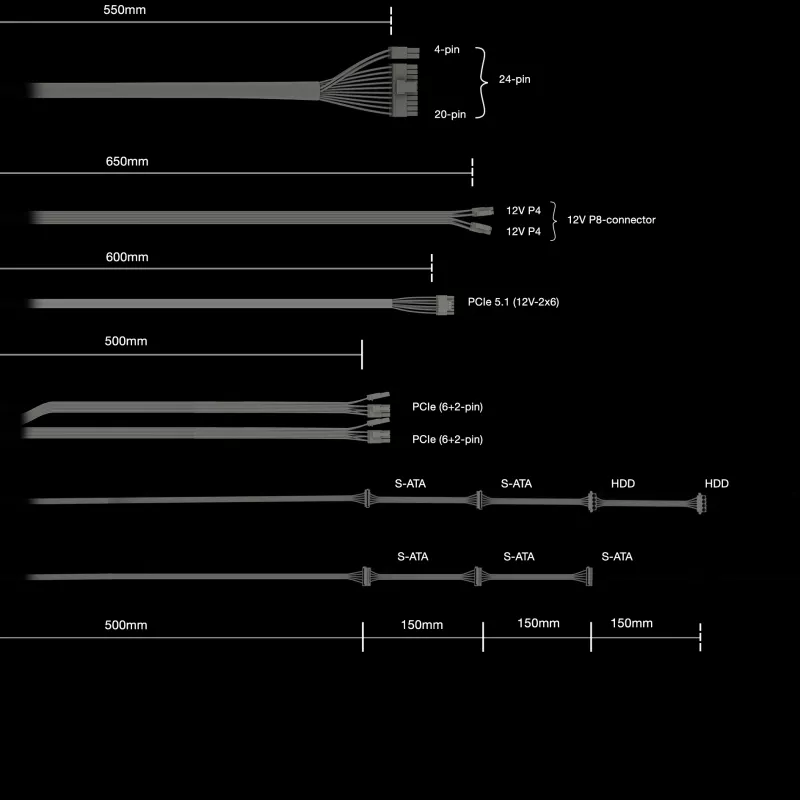

Motherboard power cable length
55 cm
Motherboard power connector
20+4 pin ATX

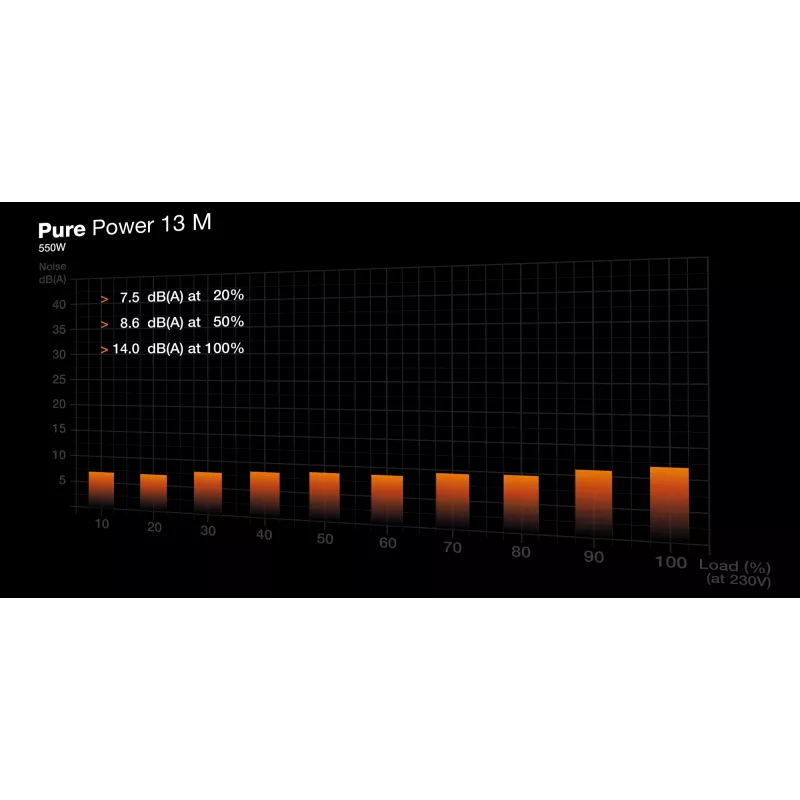

Noise level
20.8 dB
Number of +12V rail(s)
1
Number of fans
1 fan(s)
Number of SATA power connectors
5
On/off switch
Yes
Operating temperature (T-T)
0 - 40 °C
Package depth
320 mm
Package height
133 mm
Package weight
3 kg
Package width
210 mm
PCI Express power connectors (12-pin)
1
PCI Express power connectors (6+2 pin)
2
Peak power
600 W
Peripheral (Molex) power cable length
800,950 mm
Peripheral (Molex) power connectors (4-pin)
2
Power factor
0.98
Power Factor Correction (PFC) type
Active
Power protection features
Over current, Over power, Over voltage, Overheating, Short circuit, Surge & inrush protection (SIP), Under voltage
Power supply unit (PSU) form factor
ATX
Product colour
Black
Products per shipping (inner) case
6 pc(s)
Purpose
PC
SATA power cable length
500,650,800 mm
Screws included
Yes
Shipping (inner) case gross weight
17.9 kg
Shipping (inner) case height
23.3 cm
Shipping (inner) case length
58 cm
Shipping (inner) case width
32.5 cm
Sustainability certificates
ENERGY STAR, ErP
Total power
550 W
Weight
2.23 kg
Width
150 mm

Leaflet

Open Leaflet

Manual

Open Manual
Price history over the last 6 months
be quiet! Pure Power 13 M | 550W power supply unit 20+4 pin ATX ATX Black
Current
R2,209
Lowest
R1,943
Highest
R2,279
Change 24H
-R51   -2%
Week
+R198   +10%
Month
+R186   +9%
