be quiet TFX POWER 3 300W Gold power supply unit 20+4 pin ATX Black

be quiet TFX POWER 3 300W Gold power supply unit 20+4 pin ATX Black
be quiet TFX POWER 3 300W Gold power supply unit 20+4 pin ATX Black
be quiet TFX POWER 3 300W Gold power supply unit 20+4 pin ATX Black
be quiet TFX POWER 3 300W Gold power supply unit 20+4 pin ATX Black
be quiet TFX POWER 3 300W Gold power supply unit 20+4 pin ATX Black
36 mo.
be quiet TFX POWER 3 300W Gold power supply unit 20+4 pin ATX Black
be quiet TFX POWER 3 300W Gold power supply unit 20+4 pin ATX Black
be quiet TFX POWER 3 300W Gold power supply unit 20+4 pin ATX Black
be quiet TFX POWER 3 300W Gold power supply unit 20+4 pin ATX Black
be quiet TFX POWER 3 300W Gold power supply unit 20+4 pin ATX Black
R1,666
TFX Power 3 300W Gold, the advanced, high-efficiency be quiet! compact PSU gives you more for your mini or media PC. It supports the latest standards while providing solid voltages and enough power to support a PCIe graphics card. The combination of quiet operation and reliability make the TFX Power... Read More
Stock 3 Code 1720771 Brand BE QUIET Model BN323 Warranty 3 Years

Shipping & Returns

Estimated delivery Wednesday, October 7
You will be kept updated through our detailed tracking system
Payment options
EFTPayFastBank CardSnapScanZapperGoogle PayApple PayMobicredMoreTymePay on Arrival

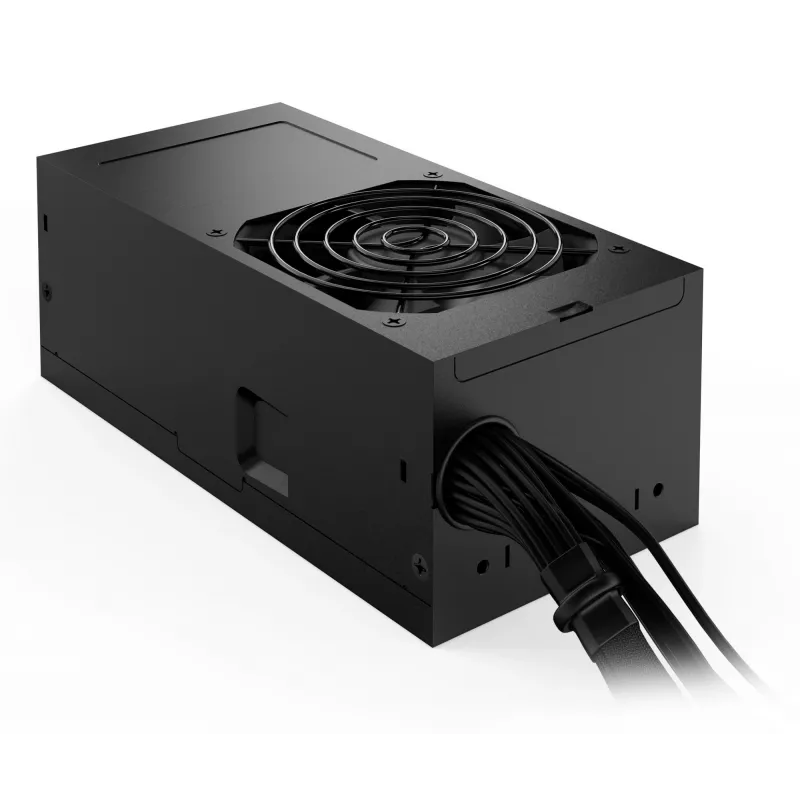

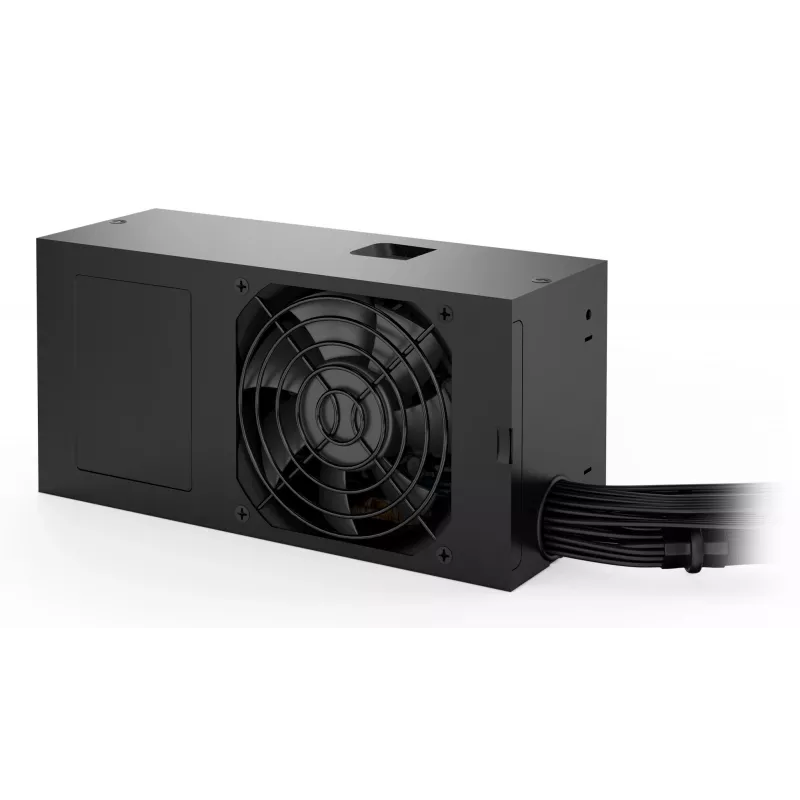

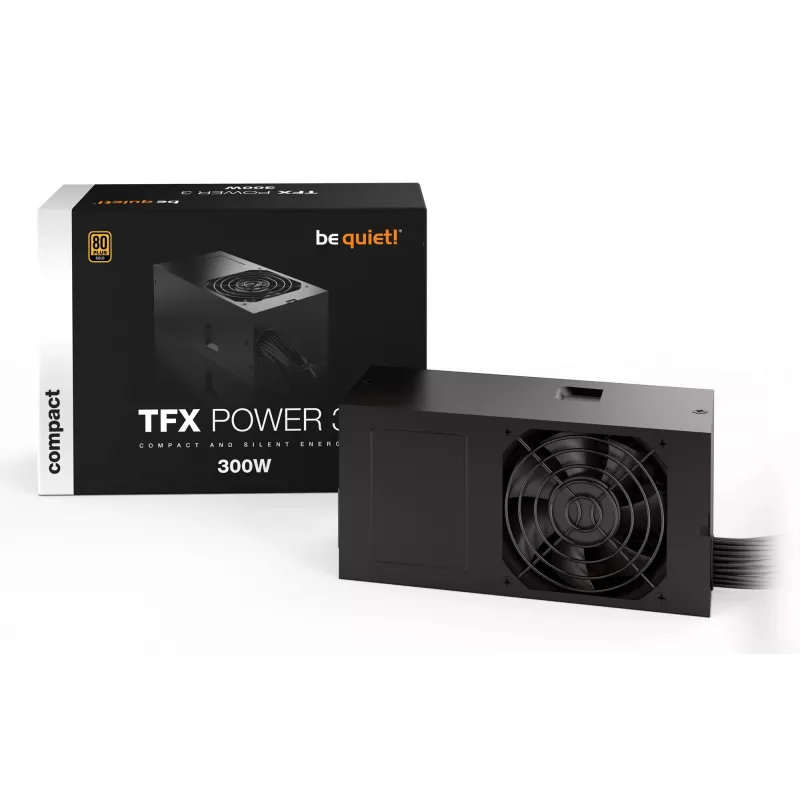

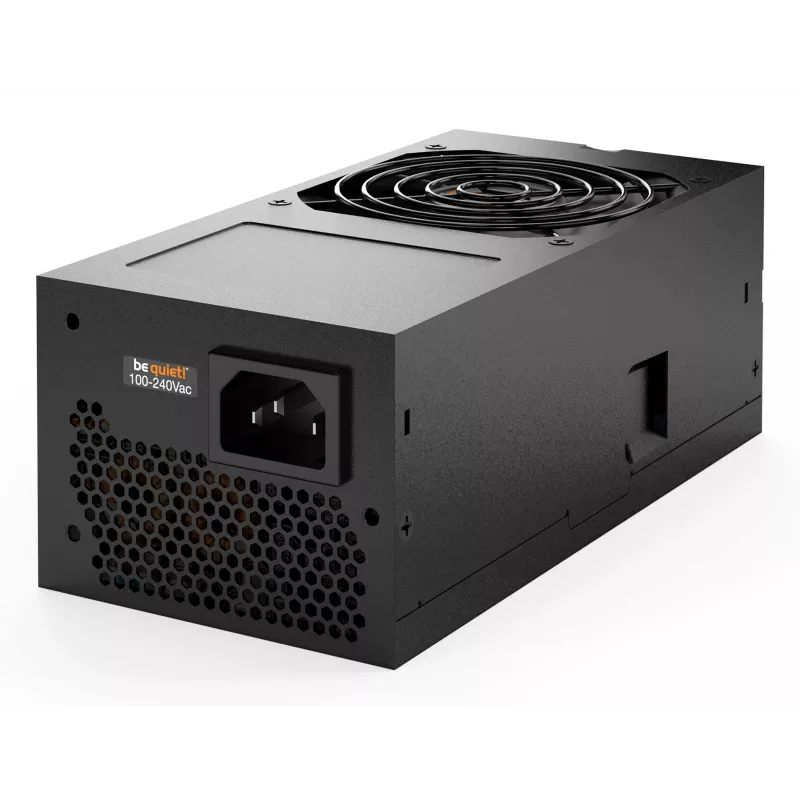

TFX Power 3 300W Gold, the advanced, high-efficiency be quiet! compact PSU gives you more for your mini or media PC. It supports the latest standards while providing solid voltages and enough power to support a PCIe graphics card. The combination of quiet operation and reliability make the TFX Power 3 300W Gold the perfect choice for PCs with TFX form factor.

be quiet! TFX POWER 3 300W Gold. Total power: 300 W, AC input voltage: 100 - 240 V, Peak power: 350 W. Motherboard power connector: 20+4 pin ATX, Motherboard power cable length: 35 cm, SATA power cable length: 300,450,600 mm. Purpose: PC, Power supply unit (PSU) form factor: TFX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Cooling type: Active, Fan diameter: 8 cm. Compliance certificates: RoHS, WEEE

Key Highlights
  • 80 PLUS® Gold efficiency (up to 91.7%) for lower power consumption
  • Strong dual 12V-rails for high stability and PCIe graphics card support
  • 300W of continuous power

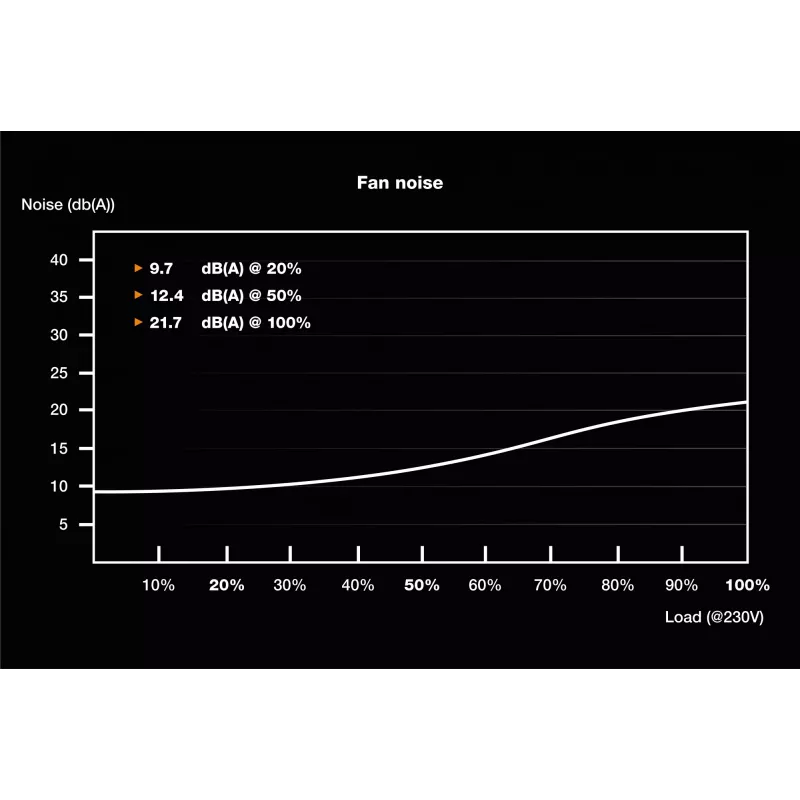

  • High-quality temperature-controlled 80mm fan for low-noise operation of max. 21.7dB(A)
  • Sleeved or flat black cables up to 60cm long
  • Meets the latest safety and efficiency requirements
  • Modern safety protections reliably defend against numerous failures
  • Standby draw less than 0.17 watts
  • Product conception, design and quality control in Germany
  • 300 W 100 - 240 V 50 - 60 Hz
  • Motherboard power connector: 20+4 pin ATX
  • PC TFX 80 PLUS Gold
  • Active 8 cm
  • Black
Specifications
80 PLUS certification
80 PLUS Gold
AC input frequency
50 - 60 Hz
AC input voltage
100 - 240 V
ATX version
2.52
Cabling type
Non-Modular
Combined power (+12V)
288 W
Combined power (+3.3V)
103 W
Combined power (+5V)
103 W
Compliance certificates
RoHS, WEEE
Cooling type
Active
CPU P4 connector (4-pin)
1
CPU power cable length
35 cm
Depth
175 mm
Efficiency
90.6%
EPS version
2.92
Fan diameter
8 cm
Floppy disk drive cable length
60 cm
Floppy drive power connector
1
Harmonized System (HS) code
84733020
Height
65 mm
Hold time
29 ms
Input current
4/2 A
Max output current (+12V1)
13 A
Max output current (+12V2)
13 A
Max output current (+3.3V)
18 A
Max output current (+5V)
18 A
Max output current (+5Vsb)
3 A
Max output current (-12V)
0.3 A
Maximum input current (@110V)
4 A
Maximum input current (@220V)
2 A
Mean time between failures (MTBF)
100000 h
Motherboard power cable length
35 cm
Motherboard power connector
20+4 pin ATX
Noise level
21.7 dB
Number of fans
1 fan(s)
Number of SATA power connectors
3
Package depth
80 mm
Package height
215 mm
Package type
Box
Package weight
1.43 kg
Package width
159 mm
PCI Express power cable length
40 cm
PCI Express power connectors (6+2 pin)
1
Peak power
350 W
Peripheral (Molex) power cable length
300,450 mm
Peripheral (Molex) power connectors (4-pin)
2
Power factor
0.98
Power Factor Correction (PFC) type
Active
Power protection features
Over current, Over power, Over voltage, Short circuit, Under voltage
Power supply unit (PSU) form factor
TFX
Product colour
Black
Products per shipping (inner) case
6 pc(s)
Purpose
PC
Safety
CE, CB, TÜV, CU
SATA power cable length
300,450,600 mm
Shipping (inner) case gross weight
9.39 kg
Shipping (inner) case height
19.5 cm
Shipping (inner) case length
47.4 cm
Shipping (inner) case width
27.5 cm
Sustainability certificates
ENERGY STAR, ErP
Sustainability compliance
Yes
Total power
300 W
Weight
1.1 kg
Width
85 mm

Manual

Open Manual

Leaflet

Open Leaflet

Document

Open Document
