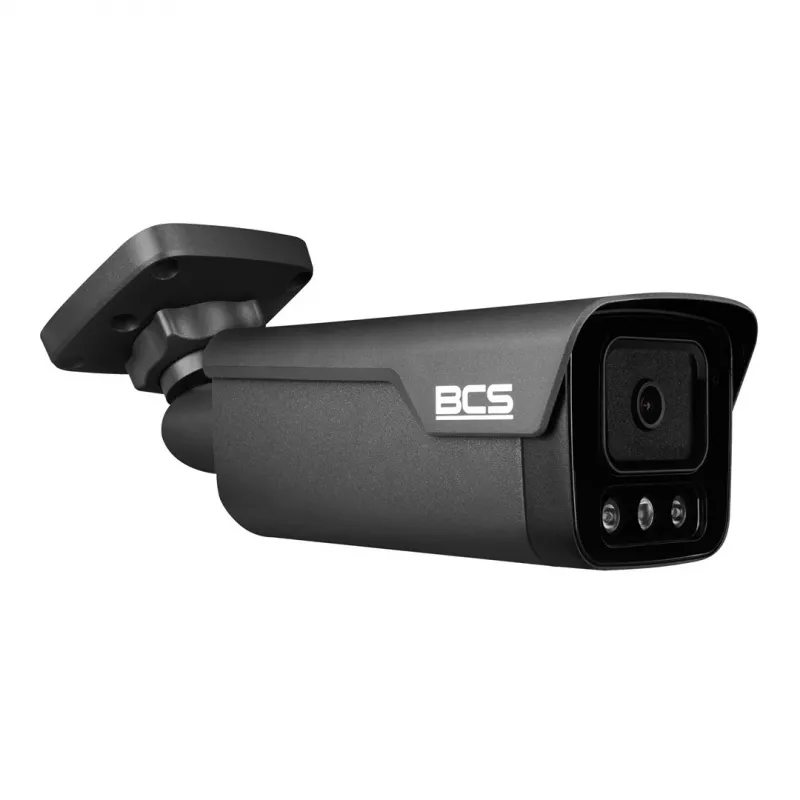

BCS-P-TIP25FSR4L4-Ai2-G(2) 5MP IP Bullet Camera with 2.8mm Lens, Smart IR, AI, PoE

The BCS-P-TIP25FSR4L4-Ai2-G(2) is a high-performance 5MP IP bullet camera designed for professional surveillance. Featuring a 1/2.7" Progressive Scan CMOS sensor, it delivers crisp 2592x1944 resolution at 20 fps. Equipped with a 2.8mm fixed lens (103° horizontal FOV), Smart IR up to 30m, and 120dB True WDR, it excels in challenging lighting conditions. AI-powered Smart Motion Detection and Perimeter Protection (Intrusion, Tripwire) enhance security intelligence. Built-in microphone, H.265+ compression, and PoE support make it a versatile choice for indoor/outdoor use.

Advantages

Exceptional image quality with 5MP resolution and 120dB True WDR ensures clear footage in high-contrast scenes. AI analytics reduce false alarms by distinguishing humans/vehicles from other motion. Smart IR technology provides uniform night vision without overexposure. H.265+ compression saves bandwidth and storage without compromising detail. Rugged IP67 housing withstands harsh weather, and PoE simplifies installation with a single cable.

Suitable for

• Perimeter security for commercial buildings, warehouses, and parking lots
• Retail stores, offices, and educational facilities requiring intelligent surveillance
• Outdoor monitoring in residential complexes and public spaces
• Integration with existing IP video management systems

Key specifications

• Sensor: 1/2.7" Progressive Scan CMOS, 5MP (2592x1944)
• Lens: 2.8mm fixed, F2.0, 103° horizontal FOV
• IR Range: Up to 30m (Smart IR)
• Video Compression: H.265+, H.265, H.264+, H.264
• Audio: Built-in microphone
• Network: 1x RJ-45 10/100Mbps, PoE (802.3af)
• Storage: MicroSD slot up to 256GB
• AI: Smart Motion Detection, Perimeter Protection (Intrusion, Tripwire)
• Weather Resistance: IP67
• WDR: 120dB True WDR
• Power: DC 12V or PoE
• Operating Temperature: -40°C to +60°C

Recommendations

For optimal performance, use a PoE switch or injector (802.3af compliant). Pair with a compatible NVR or VMS to leverage AI analytics. Ensure the MicroSD card is high endurance for continuous recording. Mount the camera at a height of 2.5-4m for best coverage.
