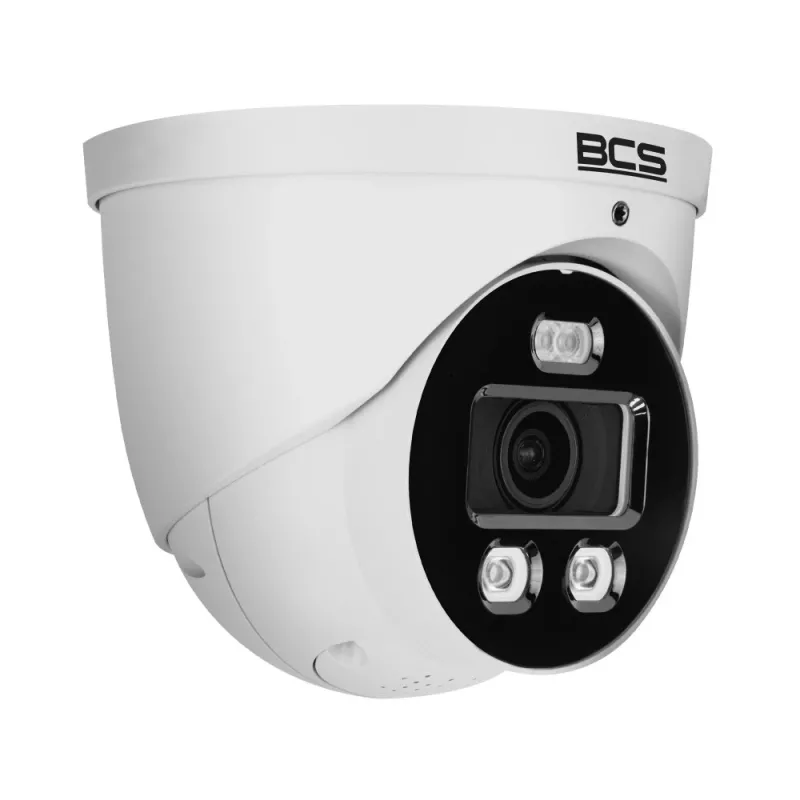

BCS-L-EIP68FCR3L3-Ai1 8MP 4K IP Dome Camera with AI, IK10, IP67, PoE

Capture every detail in stunning 8-megapixel 4K resolution with the BCS-L-EIP68FCR3L3-Ai1, a rugged dome camera engineered for demanding surveillance. Its 1/2.8" progressive CMOS sensor and 2.8mm fixed lens deliver a 107° wide-angle view, while 120dB True WDR ensures balanced images in challenging lighting. Smart IR provides clear night vision up to 30m, and built-in AI analytics—including perimeter protection, SMD Plus, and face detection—enable proactive monitoring. With IP67 weatherproofing and IK10 vandal resistance, this camera thrives in harsh environments.

Overview

The BCS-L-EIP68FCR3L3-Ai1 combines high-resolution imaging with intelligent video analytics in a compact dome form factor. It supports H.265+ compression to reduce bandwidth and storage needs without sacrificing quality. The camera features a built-in microphone, audio I/O, alarm I/O, and a microSD slot for local recording up to 256GB. Power is flexible with both DC12V and PoE (802.3af) options, simplifying installation. Designed for outdoor and indoor use, it operates reliably from -40°C to +60°C.

What stands out

• 8MP 4K resolution (3840 x 2160) at 20fps for ultra-sharp footage
• AI-powered perimeter protection with intrusion and tripwire detection
• 120dB True WDR for excellent performance in high-contrast scenes
• IP67 weatherproof and IK10 vandal-proof construction
• Built-in microphone and audio/alarm I/O for enhanced surveillance
• Smart IR night vision up to 30m with automatic adjustment
• H.265+ compression for efficient storage and bandwidth usage
• Flexible power options: DC12V or PoE (802.3af)

Technical details

• Sensor: 1/2.8" 8MP progressive scan CMOS
• Lens: 2.8mm fixed focal, F1.6 aperture, 107° horizontal field of view
• Minimum illumination: 0.007 lux (colour), 0 lux with IR
• Video compression: H.265+, H.265, H.264+, H.264, MJPEG
• Frame rate: 20fps @ 8MP, 25/30fps @ 6MP/4MP/1080p
• WDR: 120dB true WDR
• Audio: Built-in microphone, 1 input / 1 output
• Alarm: 1 input / 1 output
• Storage: MicroSD card slot, up to 256GB
• Network: 1x RJ-45 10/100Mbps Ethernet
• Power: DC12V or PoE (802.3af), max 6.5W
• Ingress protection: IP67
• Impact resistance: IK10
• Operating temperature: -40°C to +60°C

Our verdict

The BCS-L-EIP68FCR3L3-Ai1 is a robust, feature-rich surveillance camera that delivers exceptional 4K clarity and intelligent analytics. Its rugged design and versatile power options make it ideal for both commercial and residential security installations where reliability is paramount.
