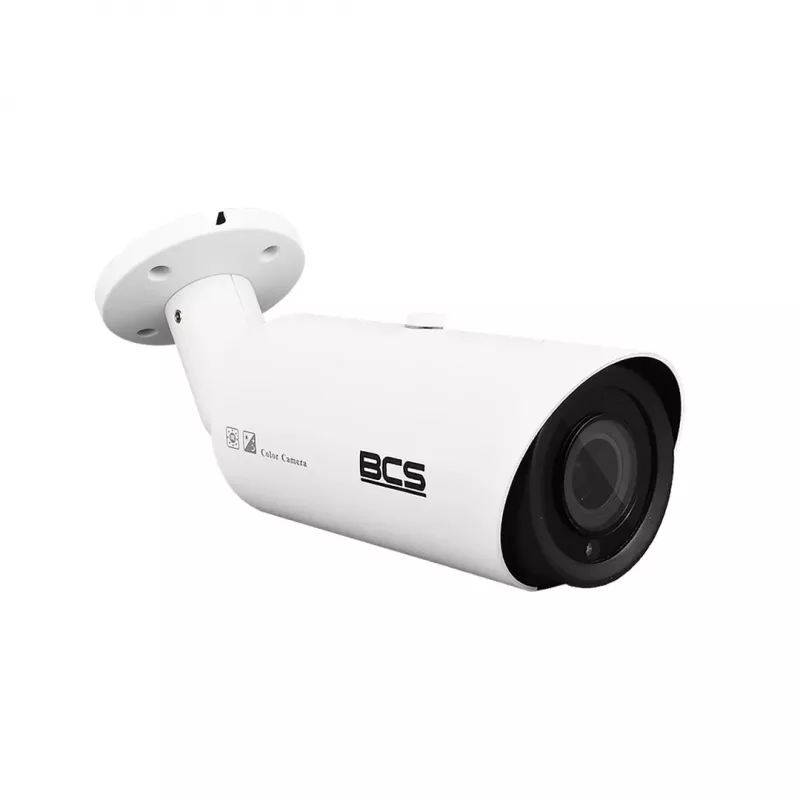

BCS BCS-TA55VSR5 5MP Analog HD Bullet Camera, 2.8mm Lens, IR up to 40m, IP67

The BCS BCS-TA55VSR5 is a high-performance 5 Megapixel Analog HD bullet camera designed for reliable outdoor surveillance. Featuring a 1/2.8" CMOS sensor and switchable video output (AHD/TVI/CVI/CVBS), it delivers crisp 2592x1944 resolution at 20fps. Equipped with a fixed 2.8mm lens, smart IR illumination up to 40m, and advanced image processing including DWDR, 2D/3D DNR, and BLC/HLC, this camera ensures clear footage day and night. Its metal housing with IP67 rating withstands harsh weather conditions, making it ideal for perimeter monitoring, parking lots, and building entrances.

Advantages

High 5MP resolution provides detailed images for identification. Smart IR technology adjusts intensity to prevent overexposure. Coaxitron OSD allows easy menu control via coaxial cable. Robust metal construction and IP67 protection ensure long-lasting performance in outdoor environments.

Suitable for

• Outdoor perimeter surveillance
• Parking lot monitoring
• Building entrances and exits
• Warehouse and industrial sites

Key specifications

• Sensor: 1/2.8" CMOS, 5 Megapixel (2592x1944)
• Video Output: AHD / TVI / CVI / CVBS (switchable)
• Lens: Fixed 2.8mm
• IR Range: Up to 40m (Smart IR)
• Minimum Illumination: 0.005 Lux (Color), 0 Lux (IR On)
• Day/Night: Mechanical IR cut filter
• WDR: DWDR
• Noise Reduction: 2D/3D DNR
• Backlight Compensation: BLC / HLC
• AGC: Yes
• White Balance: AWB
• Power Supply: DC 12V, max 4.5W
• Ingress Protection: IP67
• Housing Material: Metal
• Operating Temperature: -30°C to +60°C
• Frame Rate: 5Mpx@20fps, 4Mpx@25/30fps, 2Mpx@25/30fps
• Camera Type: Bullet

Recommendations

For optimal performance, use a quality DC 12V power supply and ensure proper cable connections. The camera supports coaxial control (Coaxitron) for OSD menu adjustments. Suitable for use with compatible DVRs supporting AHD/TVI/CVI/CVBS standards.
