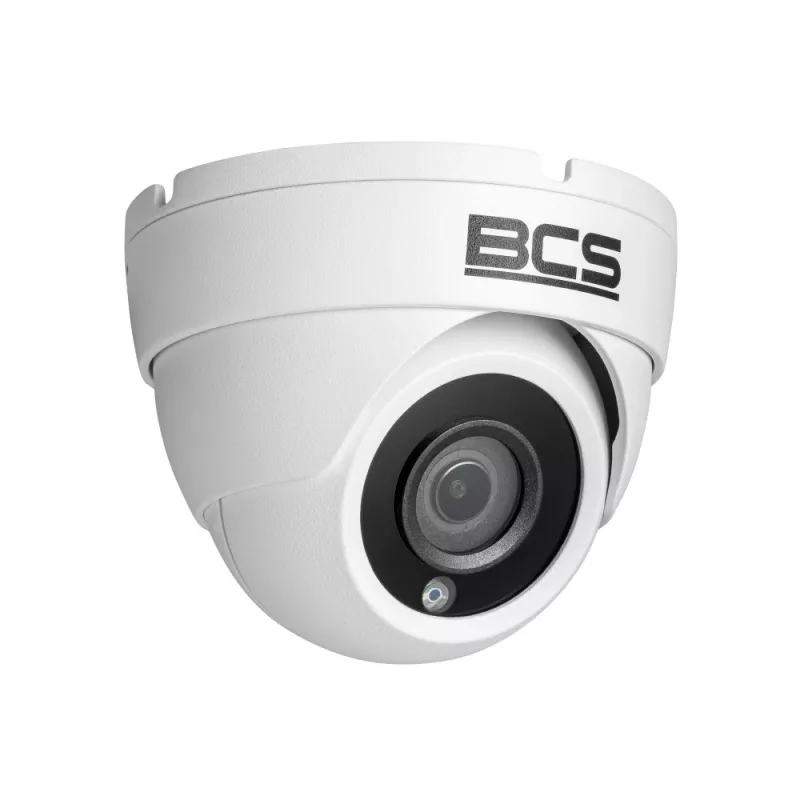

BCS BCS-EA28FSR3(H2)(2) 8MP Analog HD Camera, 2.8mm Fixed Lens, IR up to 30m, IP67

The BCS BCS-EA28FSR3(H2)(2) is a high-performance 8 Megapixel analog HD camera designed for professional surveillance applications. Featuring a 1/2.8" CMOS sensor and a fixed 2.8mm lens with a 105° horizontal field of view, this camera delivers crisp 3840x2160 resolution video. It supports multiple video output modes (AHD, HD-TVI, HD-CVI, CVBS) for flexible integration. With Smart IR technology providing up to 30m night vision, IP67 weatherproof metal housing, and advanced image processing including DWDR, 2D/3D DNR, BLC, and HLC, it ensures reliable 24/7 monitoring in demanding environments.

Advantages

True 8MP resolution for exceptional detail; switchable video output for compatibility with various DVRs; robust IP67 metal housing for outdoor use; Smart IR for clear night vision without overexposure; low power consumption (max 3.5W) for energy efficiency.

Suitable for

• Outdoor perimeter surveillance
• Retail and commercial premises
• Warehouses and logistics centers
• Parking lots and building entrances

Key specifications

• Sensor: 1/2.8" CMOS, 8 MP (3840x2160)
• Lens: Fixed 2.8mm, F1.6, 105° H-FOV
• Video Output: AHD / HD-TVI / HD-CVI / CVBS switchable
• IR Range: Up to 30m, Smart IR
• Day/Night: ICR, 0.005 Lux (color), 0 Lux (IR on)
• Image Enhancement: DWDR, 2D/3D DNR, BLC, HLC
• Power: DC 12V, max 3.5W
• Protection: IP67, metal housing
• Operating Temperature: -30°C to +60°C

Recommendations

For optimal performance, use with a compatible HD analog DVR supporting 8MP at 15fps. Ensure proper weatherproofing of cable connections. Ideal for areas requiring high detail and reliable night vision.
