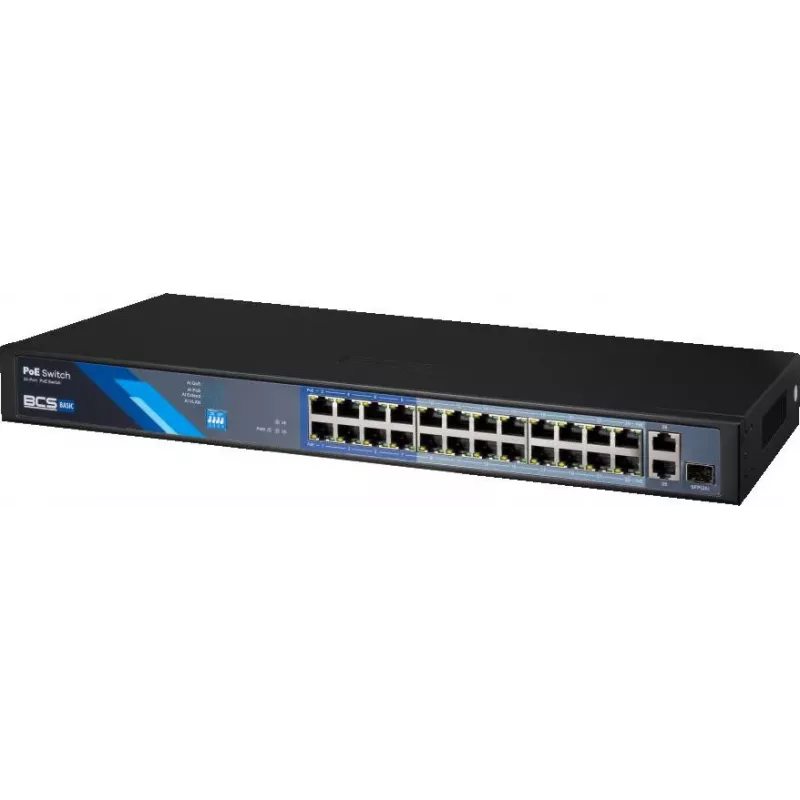

BCS BCS-B-SP2402G-1SFP 24-Port PoE+ Unmanaged Switch with 2 Gigabit Uplink and 1 SFP Slot

The BCS BCS-B-SP2402G-1SFP is a high-performance unmanaged PoE+ switch designed for small to medium-sized businesses. It provides 24 PoE+ ports with a total power budget of 300W, enabling easy deployment of IP cameras, VoIP phones, and wireless access points. With 2 Gigabit RJ45 uplink ports and 1 SFP slot, it ensures reliable and fast data transfer.

Advantages

This switch simplifies network expansion with plug-and-play installation, no configuration required. Its fan-cooled design ensures stable operation in demanding environments. The 300W PoE budget supports high-power devices, and the 52 Gbps switching capacity delivers smooth performance.

Suitable for

• Office networks requiring PoE for IP phones and cameras
• Small business IT infrastructure
• Surveillance system deployments
• Wireless access point installations

Key specifications

• 24 PoE+ ports (10/100/1000 Mbps) with IEEE 802.3af/at
• 2 Gigabit RJ45 uplink ports + 1 SFP slot
• Total PoE power budget: 300W (up to 30W per port)
• Switching capacity: 52 Gbps
• Packet forwarding rate: 38.68 Mpps
• MAC address table: 8K
• Jumbo frame support: 9K bytes
• Internal power supply: AC 100-240V, 50/60Hz
• Operating temperature: 0°C to 40°C
• Rackmount 1U form factor

Recommendations

For optimal performance, use quality Cat5e or higher cabling. Ensure adequate ventilation for the fan-cooled unit. This switch is ideal for powering PoE devices within the 300W budget.
