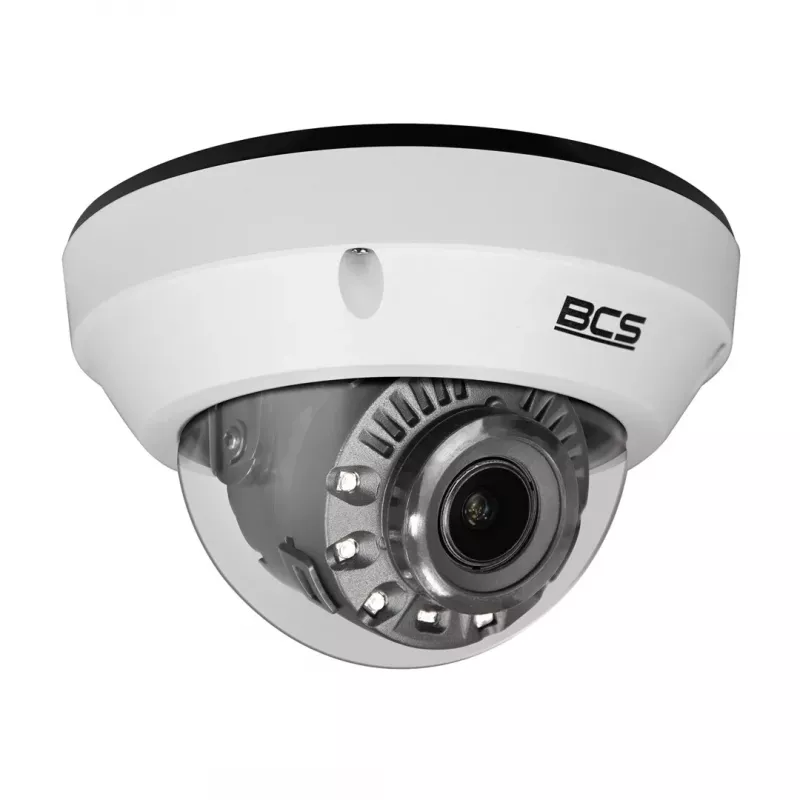

BCS 8MP IP Dome Camera BCS-U-DIP68VSR4, Motorized Varifocal, 2.7-13.5mm, H.265, PoE, IP67, IK10

The BCS-U-DIP68VSR4 is a high-performance 8-megapixel IP dome camera designed for professional indoor and outdoor surveillance. Featuring a motorized varifocal lens (2.7-13.5mm) and advanced Smart IR technology with up to 40m range, it delivers crisp 4K UHD video even in challenging lighting conditions. With IP67 weatherproof and IK10 vandal-resistant housing, this camera is built to withstand harsh environments. True 120dB WDR and 3D DNR ensure clear images in high-contrast scenes. The camera supports H.265+ compression for efficient bandwidth and storage, and includes built-in microphone, audio I/O, alarm I/O, and MicroSD slot (up to 256GB). Smart analytics include tripwire, intrusion, object detection, and face detection. Power via 12V DC or PoE (802.3af).

Advantages

Exceptional 8MP resolution with motorized zoom for flexible field of view. Smart IR adapts to scene brightness to prevent overexposure. True WDR handles backlight and shadows. Robust metal housing with IP67/IK10 rating ensures long-term reliability. H.265+ reduces storage costs without sacrificing quality.

Suitable for

• Perimeter surveillance of commercial and industrial sites
• Retail stores, warehouses, and parking lots
• Critical infrastructure requiring high detail and analytics
• Outdoor areas exposed to weather and vandalism

Key specifications

• Resolution: 8 MP (3840x2160)
• Sensor: 1/2.8" Progressive Scan CMOS
• Lens: Motorized varifocal 2.7-13.5mm
• IR Range: Up to 40m (Smart IR)
• Video Compression: H.265+, H.265, H.264+, H.264
• WDR: 120dB True WDR
• Noise Reduction: 3D DNR
• Power: 12V DC / PoE (802.3af)
• Protection: IP67, IK10
• Audio: Built-in mic, 1x Audio In, 1x Audio Out
• Alarm: 1x In, 1x Out
• Storage: MicroSD up to 256GB
• Network: 1x RJ-45 10/100Mbps
• Smart Functions: Tripwire, Intrusion, Object Abandoned/Missing, Face Detection
• Operating Temperature: -30°C to +60°C
• Minimum Illumination: 0.007 Lux (color), 0 Lux (IR on)

Recommendations

For optimal performance, use a PoE switch or injector compliant with IEEE 802.3af. Ensure the MicroSD card is high endurance for continuous recording. The camera is compatible with most ONVIF-compliant NVRs and VMS software.
