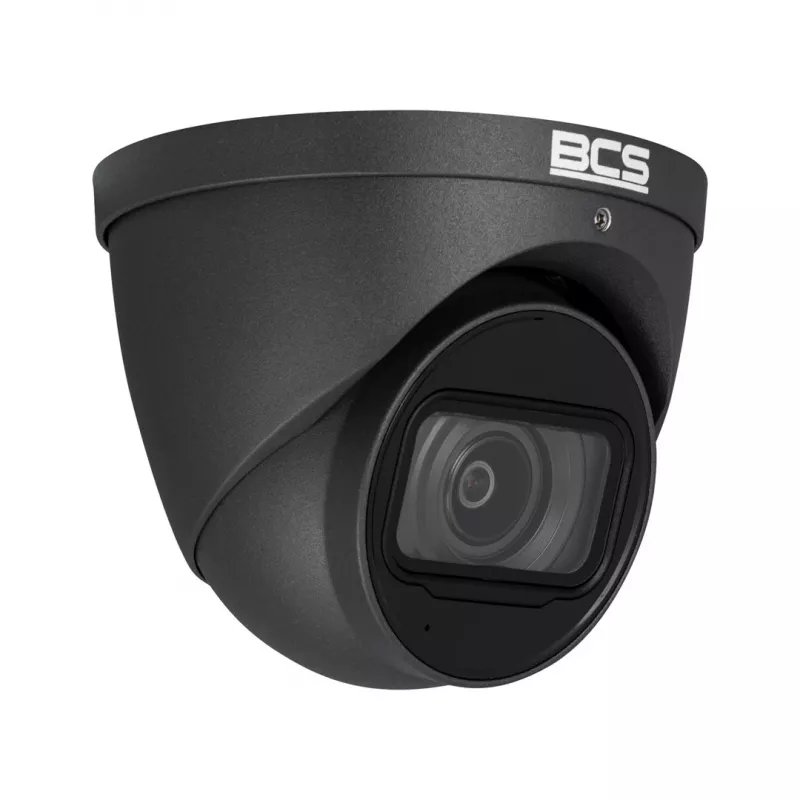

BCS 8MP Analog HD Camera BCS-EA48VWR6-G(2) - Motorized Varifocal, IR 60m, IP67

The BCS-EA48VWR6-G(2) is a high-performance 8 Megapixel analog HD camera designed for professional surveillance. Featuring a 1/2.8" CMOS sensor and motorized varifocal lens (2.7-13.5mm), it delivers crisp 3840x2160 resolution at 15 fps. With 4-in-1 video output (AHD/TVI/CVI/CVBS), IR illumination up to 60 meters, and IP67-rated metal housing, this camera is ideal for demanding indoor and outdoor installations.

Advantages

Exceptional 8MP clarity with motorized zoom for flexible framing. True day/night operation with ICR filter and 0 Lux IR capability. Robust IP67 weatherproofing ensures reliable performance in harsh conditions. Digital WDR and 2D/3D DNR enhance image quality in challenging lighting.

Suitable for

• Perimeter surveillance of commercial and industrial sites
• Parking lots, warehouses, and retail environments
• Outdoor areas requiring high-resolution monitoring

Key specifications

• Sensor: 1/2.8" CMOS, 8 MP (3840x2160)
• Lens: Motorized varifocal 2.7-13.5mm
• Video Output: AHD, TVI, CVI, CVBS (4-in-1)
• IR Range: Up to 60m
• Min. Illumination: 0.001 Lux (color), 0 Lux (IR)
• WDR: DWDR
• Noise Reduction: 2D/3D DNR
• IP Rating: IP67
• Housing: Metal
• Power: DC 12V, max 6.5W
• Operating Temperature: -30°C to +60°C

Recommendations

For optimal performance, use with a compatible DVR supporting 8MP at 15fps. Ensure proper power supply (DC 12V) and weatherproof connections for outdoor installations.
