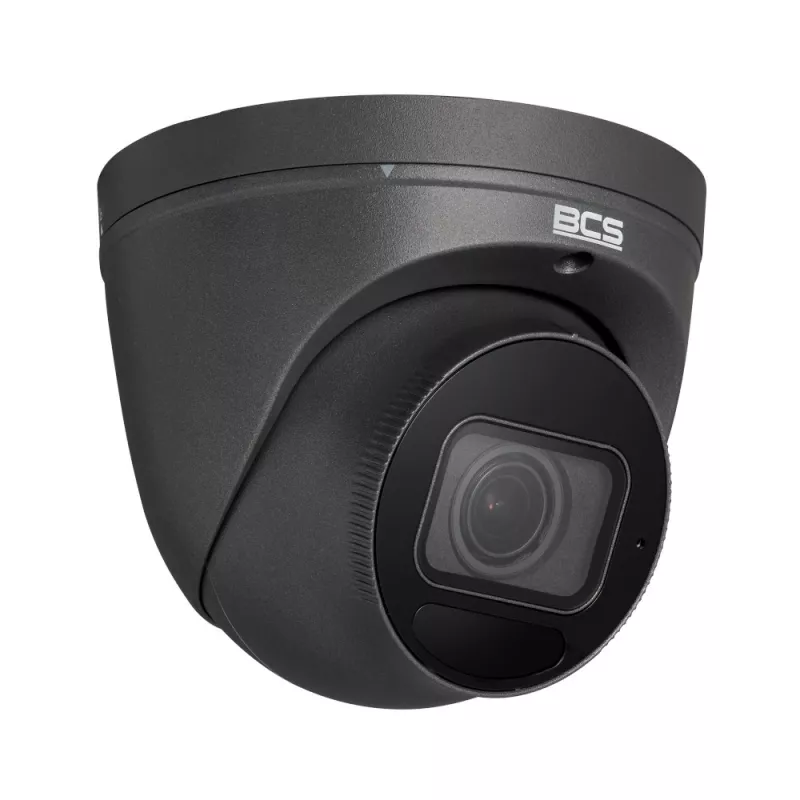

BCS 5MP IR Dome IP Camera BCS-P-EIP45VSR4-Ai-G, Motorized Varifocal, Smart IR, IP67, IK10

The BCS-P-EIP45VSR4-Ai-G is a high-performance 5MP IR dome IP camera designed for professional indoor and outdoor surveillance. Featuring a 1/2.7" progressive CMOS sensor, it delivers crisp 2592x1944 resolution at 20fps. Equipped with a motorized varifocal lens (2.7-13.5mm) and Smart IR technology for up to 40m night vision, this camera ensures clear imaging in challenging lighting conditions. Its robust IP67 and IK10 ratings guarantee protection against dust, water, and vandalism.

Advantages

True 120dB WDR handles high-contrast scenes, while H.265+ compression reduces bandwidth and storage costs. Built-in microphone enables audio recording, and the MicroSD slot (up to 256GB) provides local storage. Smart features like perimeter protection, SMD Plus, and face detection enhance security intelligence.

Suitable for

• Commercial and residential surveillance
• Perimeter and access control
• Retail, office, and warehouse monitoring
• Outdoor installations requiring vandal resistance

Key specifications

• Image Sensor: 1/2.7" 5MP Progressive CMOS
• Max Resolution: 2592x1944 (5MP)
• Lens: Motorized Varifocal 2.7-13.5mm
• IR Range: Up to 40m (Smart IR)
• Video Compression: H.265+/H.265/H.264+/H.264
• Frame Rate: 20fps@5MP, 25/30fps@4MP
• WDR: 120dB True WDR
• Min. Illumination: 0.008 Lux (Color), 0 Lux (IR on)
• Power: 12V DC / PoE (802.3af), Max 7.2W
• Ingress Protection: IP67
• Vandal Resistance: IK10
• Audio: Built-in Microphone
• Local Storage: MicroSD up to 256GB
• Smart Features: Perimeter Protection, SMD Plus, Face Detection
• Network: 1x RJ-45 (10/100Base-T)
• Operating Temperature: -30°C to +60°C
• ONVIF: Profile S/G/T

Recommendations

For optimal performance, use a PoE switch or injector (802.3af). Ensure the MicroSD card is Class 10 or higher. Mount the camera in a location with clear view of the area of interest.
