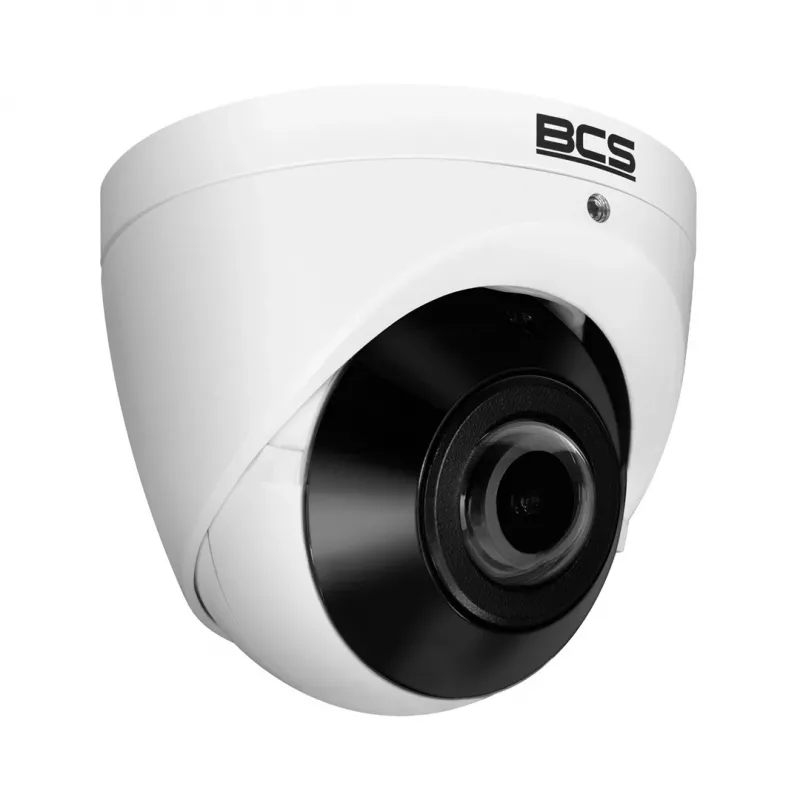

BCS 5MP IP Dome Camera BCS-P-PEIP1x5FWR2-Ai1, 2.8mm, 30m IR, PoE, IP67, IK10

The BCS-P-PEIP1x5FWR2-Ai1 is a high-performance 5MP IP dome camera designed for professional indoor and outdoor surveillance. Featuring a 1/2.7" CMOS sensor, it delivers crisp 2592x1944 resolution at 20fps. With a 2.8mm fixed lens providing a 103° horizontal field of view, this camera covers wide areas effectively. Smart IR technology ensures clear night vision up to 30 meters. The camera supports True WDR 120dB for balanced exposure in challenging lighting conditions and offers multiple video compression formats including H.265+ for bandwidth efficiency. Built with a metal housing, it is rated IP67 for weather resistance and IK10 for vandal protection. Power can be supplied via DC 12V or PoE (802.3af). Additional features include a built-in microphone, MicroSD card slot (up to 256GB), and intelligent analytics such as perimeter protection and SMD Plus.

Advantages

This camera combines high resolution with robust durability, making it ideal for demanding environments. The 120dB True WDR ensures clear images in high-contrast scenes, while Smart IR provides uniform illumination without overexposure. H.265+ compression reduces storage and bandwidth requirements without sacrificing quality. The IK10 rating guarantees resistance against vandalism, and IP67 allows operation in harsh weather conditions. Easy installation is supported by PoE, eliminating the need for separate power cables.

Suitable for

• Commercial buildings and offices
• Retail stores and warehouses
• Outdoor parking lots and perimeters
• Industrial facilities
• Schools and public institutions

Key specifications

• Sensor: 1/2.7" 5MP CMOS
• Resolution: 2592x1944 at 20fps
• Lens: 2.8mm fixed, F1.6
• Field of View: 103° horizontal
• Night Vision: Smart IR up to 30m
• WDR: 120dB True WDR
• Video Compression: H.265+, H.265, H.264+, H.264, MJPEG
• Power: DC 12V, PoE (802.3af)
• Protection: IP67, IK10
• Audio: Built-in microphone
• Storage: MicroSD slot up to 256GB
• Intelligent Features: Perimeter protection, SMD Plus
• Network: 1x RJ-45 10/100Mbps
• Minimum Illumination: 0.008 Lux (color), 0 Lux (IR on)
• Operating Temperature: -40°C to +60°C
• Housing Material: Metal

Recommendations

For optimal performance, use a PoE switch or injector compliant with IEEE 802.3af. Ensure the MicroSD card is rated for continuous recording. The camera is compatible with most ONVIF-compliant NVRs and VMS software.
