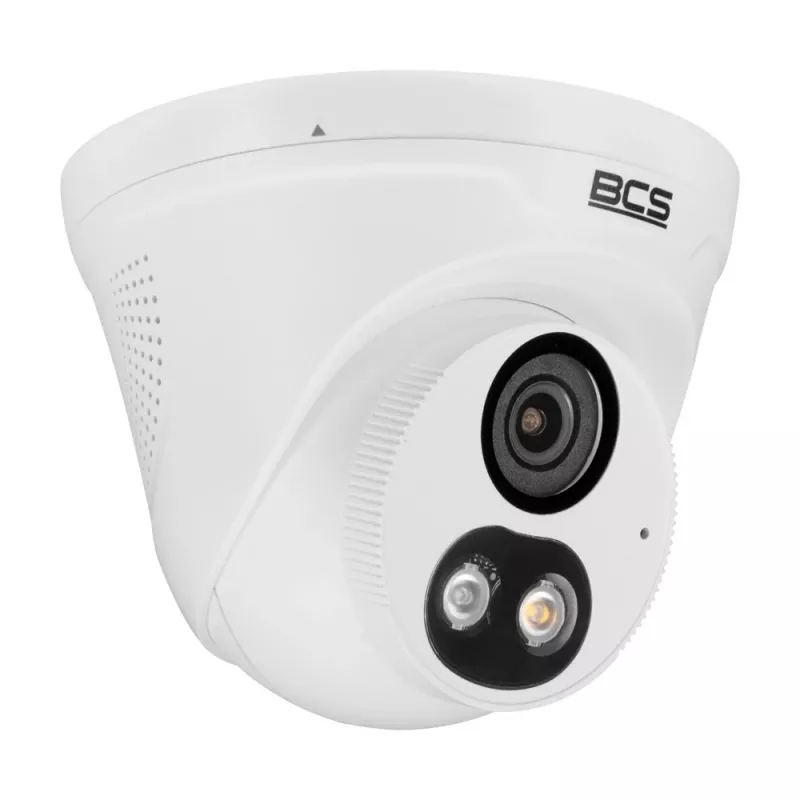

BCS 4MP IP Dome Camera with AI, 2.8mm Lens, PoE, IP67, IK10, Built-in Mic

Monitoring outdoor areas with high detail and intelligent alerts can be challenging, especially in harsh weather or low light. The BCS BCS-P-EIP14FSR3L3-Ai dome camera solves this by delivering crisp 4MP video, AI-powered perimeter protection, and durable vandal-resistant construction. Its fixed 2.8mm lens with 98° horizontal field of view covers wide spaces, while IR illumination up to 30m ensures clear night vision. True WDR (120dB) handles challenging lighting, and the built-in microphone captures audio. Power it via PoE or 12V DC, and store footage locally on a microSD card up to 256GB. ONVIF Profile S/G/T support ensures compatibility with various NVRs.

Who is it for

This camera is ideal for business owners, facility managers, and homeowners who need reliable outdoor surveillance with smart intrusion detection. It suits entrances, parking lots, backyards, and perimeters where deterrence and quick alerts are essential. Installers will appreciate its straightforward setup and PoE convenience.

Main features

• 4MP progressive CMOS sensor with 2592×1520 resolution at 25/30fps
• AI perimeter protection: tripwire and intrusion detection with SMD Plus
• True WDR (120dB) and 3D DNR for clear images in varying light
• Built-in microphone for audio monitoring
• IP67 weatherproof and IK10 vandal-resistant housing
• IR night vision up to 30m
• MicroSD slot (up to 256GB) for local recording
• PoE (802.3af) or 12V DC power options
• H.265+ compression to save bandwidth and storage

Specifications

• Image Sensor: 1/2.7" 4 Megapixel Progressive CMOS
• Max Resolution: 2592 × 1520
• Frame Rate: 25/30 fps @ 4MP
• Lens: Fixed 2.8mm, horizontal FOV 98°
• IR Distance: Up to 30m
• Video Compression: H.265+, H.265, H.264+, H.264, MJPEG
• WDR: 120dB True WDR
• Noise Reduction: 3D DNR
• Audio: Built-in microphone
• Storage: MicroSD up to 256GB
• Network: 1× RJ-45 10/100Base-T
• Power: 12V DC, PoE (802.3af)
• Protection: IP67, IK10
• Operating Temperature: -30°C to +60°C
• ONVIF: Profile S/G/T

Tips

For best results, mount the camera at a height of 3-4 meters angled slightly downward to maximize the field of view and minimize blind spots. Use a PoE switch or injector to simplify cabling. Configure the AI rules (tripwire/intrusion) via the web interface or compatible NVR to receive accurate alerts and reduce false alarms from moving branches or animals. Regularly check the microSD card health and format it periodically if using continuous recording.
