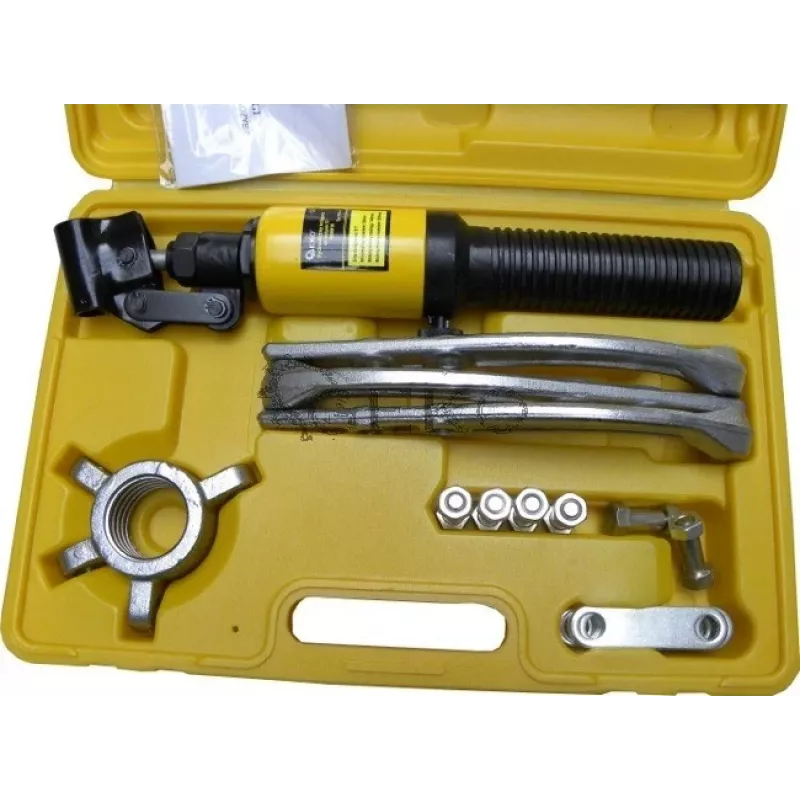

BAHCO 199081 Hydraulic Bearing Puller 5 Ton with 2/3-Jaw Configuration

This hydraulic bearing puller delivers a powerful 5-ton (50 kN) pulling force for efficient dismounting of bearings, gears, pulleys, and flywheels. Its self-contained hydraulic system with manual pump provides smooth, controlled operation, while the forged high-strength steel jaws ensure durability and reliable grip. The convertible design allows use as either a 2-arm or 3-arm puller, offering versatility for a wide range of applications.

Advantages

Integrated hydraulic ram with 50 mm stroke and overload protection via safety valve ensures safe and precise pulling. Reversible jaws enable both internal and external pulling tasks. The robust construction withstands demanding workshop environments, and the manual pump requires no external power source, making it portable and convenient.

Suitable for

• Dismounting bearings from shafts and housings
• Removing gears, pulleys, and flywheels
• Internal and external pulling applications
• Automotive, industrial, and maintenance workshops
• Heavy-duty mechanical repair tasks

Key specifications

• Pulling capacity: 5 Ton (50 kN)
• Maximum jaw spread: 200 mm
• Maximum jaw reach: 150 mm
• Hydraulic ram stroke: 50 mm
• Number of jaws: 2 or 3 (convertible)
• Jaw material: Forged high-strength steel
• Operation: Manual hydraulic pump
• Overload protection: Safety valve

Recommendations

For optimal performance, ensure the puller is properly aligned with the workpiece and the jaws are securely engaged. Regularly inspect the hydraulic system for leaks and maintain the jaws free of damage. This tool is an essential addition to any professional mechanic's toolkit for efficient and safe bearing removal.
