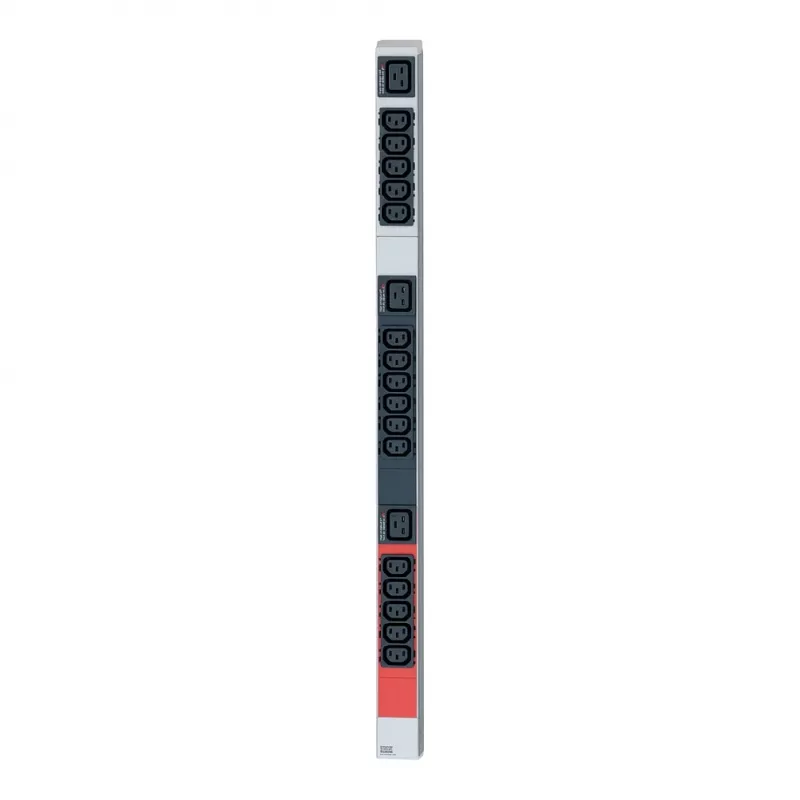

Bachmann BN PRO M 16xC13 4xC19 3m CEE 16A/3p Metered PDU

The Bachmann BN PRO M is a professional metered power distribution unit (PDU) designed for data centers and server rooms. It provides reliable power distribution with 16 IEC C13 and 4 IEC C19 outlets, controlled via a CEE 16A 5-pin input plug. With integrated metering and remote management capabilities, it offers precise monitoring of power consumption and environmental conditions.

Advantages

This PDU enables efficient power management and energy optimization. The integrated LCD display shows real-time current, voltage, power, energy, power factor, and frequency. Remote management via Ethernet, SNMP, HTTP, XML, and Modbus TCP allows for easy integration into existing monitoring systems. The anodized aluminum housing ensures durability and heat dissipation.

Suitable for

• Data centers requiring reliable power distribution and monitoring
• Server rooms with 3-phase power supply
• IT professionals needing remote power management

Key specifications

• Input: CEE 16A, 5-pin (3P+N+E), 400V AC, 16A
• Output: 16x IEC C13 + 4x IEC C19, total 20 outlets
• Cable length: 3.0 meters
• Mounting: Vertical 0U rack mount
• Metering: Current, Voltage, Power, Energy, Power Factor, Frequency
• Display: Integrated LCD
• Remote management: Ethernet, SNMP, HTTP, XML, Modbus TCP
• Housing: Anodized aluminum, black/silver
• Overload protection: Integrated
• Operating temperature: 0°C to 45°C
• Operating humidity: 10% to 90% RH (non-condensing)
• Power monitoring accuracy: ±1%
• Certifications: CE, RoHS
• Firmware upgradable: Yes

Recommendations

For optimal performance, ensure proper ventilation and do not exceed the rated current. Use with compatible 3-phase power systems. Firmware updates are recommended to maintain security and functionality.
