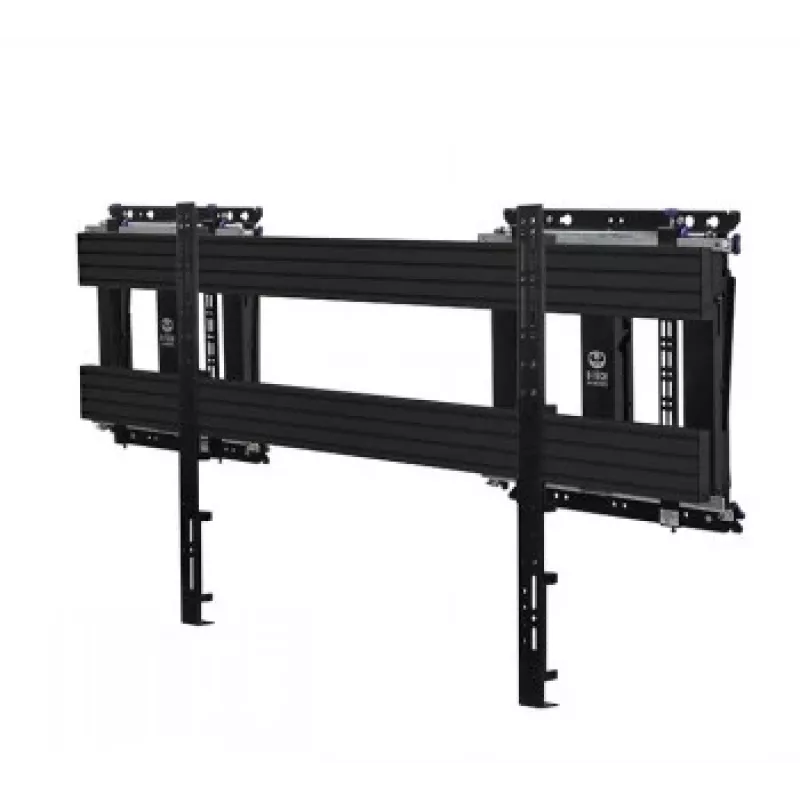

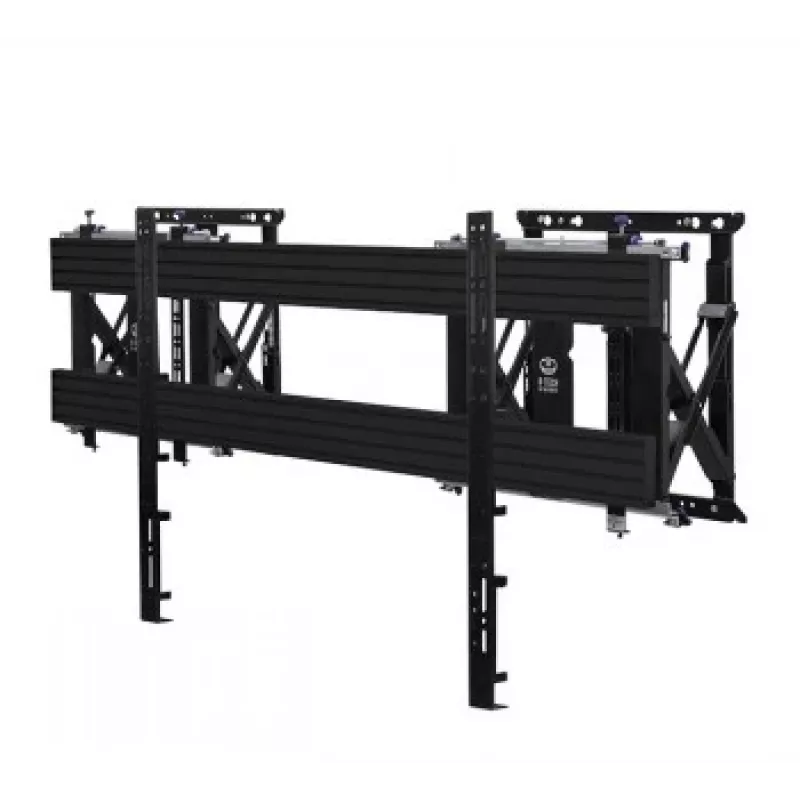

B-TECH AV BT9921/B Soft-Open Full Service Wall Mount for XXL Displays - Black

For installers and AV professionals handling massive displays, the BT9921/B eliminates the usual struggle of accessing connections and servicing screens. Its soft-open pop-out mechanism lets a single technician tilt a 120-inch panel away from the wall with controlled, cushioned movement—no heavy lifting, no risk of slamming. This full service mount combines generous extension with 8-point micro-adjustment, so even the largest screens can be aligned perfectly after installation.

Highlights

• Supports displays from 65" up to 120"+ with a massive 130 kg load capacity.
• Soft-open, push-to-open/close mechanism for effortless access and safe servicing.
• VESA compatibility up to 1000 x 800 mm, plus non-VESA fixing options.
• Extends from 101 mm to 301 mm from the wall for full rear access.

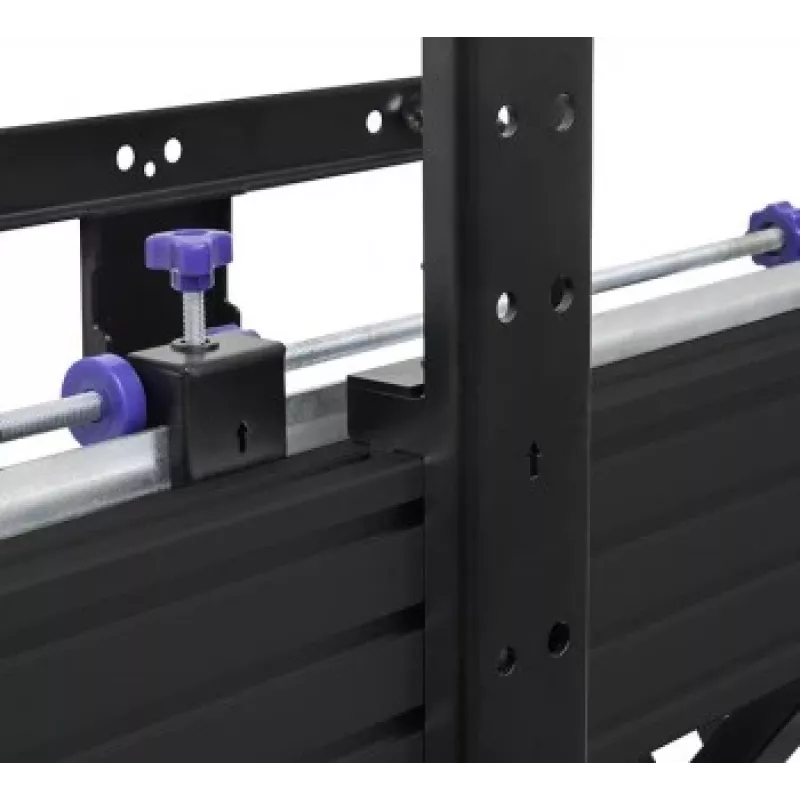

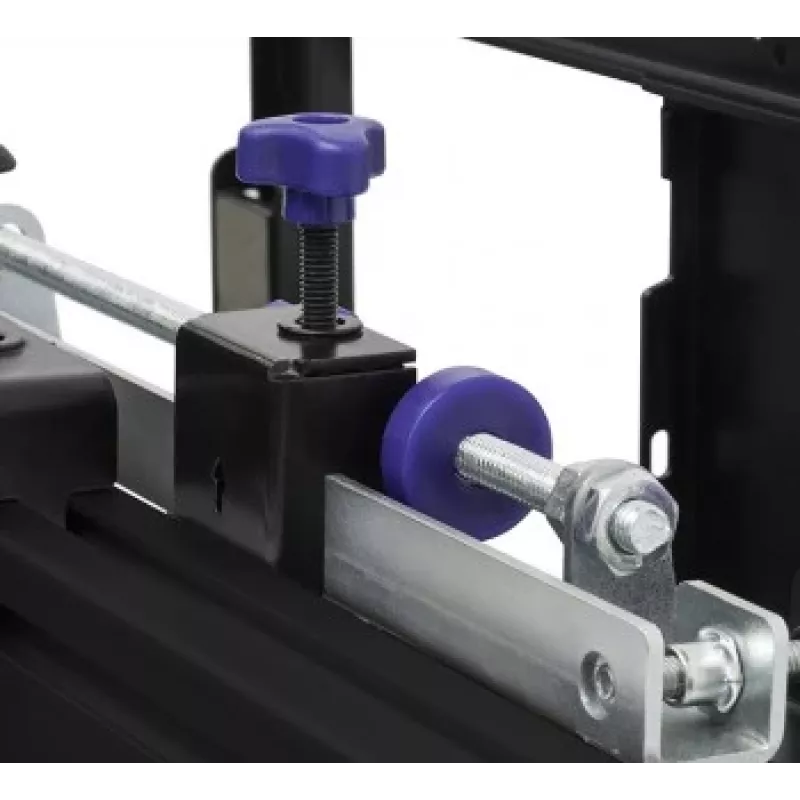

• 8-point micro-adjustment: height, tilt, and depth for precise alignment.
• Integrated cable management keeps installations clean and professional.
• Grubscrew security deters tampering in public or semi-public spaces.
• Landscape or portrait orientation for flexible display placement.

In daily use

Mounting an XXL display is only half the job—cable changes, firmware updates, and maintenance happen later. The BT9921/B's soft-open mechanism means a gentle push releases the mount, and the screen glides forward smoothly, giving you full access to the back panel. The tool-less pop-out feature speeds up routine tasks, while the micro-adjustments let you correct any sag or misalignment without unmounting the display. Whether you're working in a corporate lobby, a sports bar, or a digital signage network, this mount keeps service calls short and safe.

Full specifications

• Mount Type: Pop-out Full Service Wall Mount
• Recommended Screen Size: 65" - 120"+
• Maximum Load Capacity: 130 kg
• VESA Compatibility (Max): 1000 x 800 mm
• Minimum Depth from Wall: 101 mm
• Maximum Depth from Wall (Extended): 301 mm
• Colour: Black
• Material: Steel
• Micro-adjustment: 8-point (height, tilt, depth)
• Height Adjustment: +/- 5mm
• Orientation: Landscape or Portrait
• Cable Management: Integrated
• Security Features: Grubscrew security
• Installation Type: Wall Mount
• Mechanism: Soft-open / Push-to-open and close
• Tool-less Adjustment: Yes (for pop-out mechanism)
• Compatibility: VESA® & non-VESA fixings

Final note

Built for the long haul, the BT9921/B is the professional's choice for heavy displays that need frequent access. Its robust steel construction and smooth pop-out action make servicing a one-person job, while the micro-adjustments ensure a perfect, lasting alignment.
