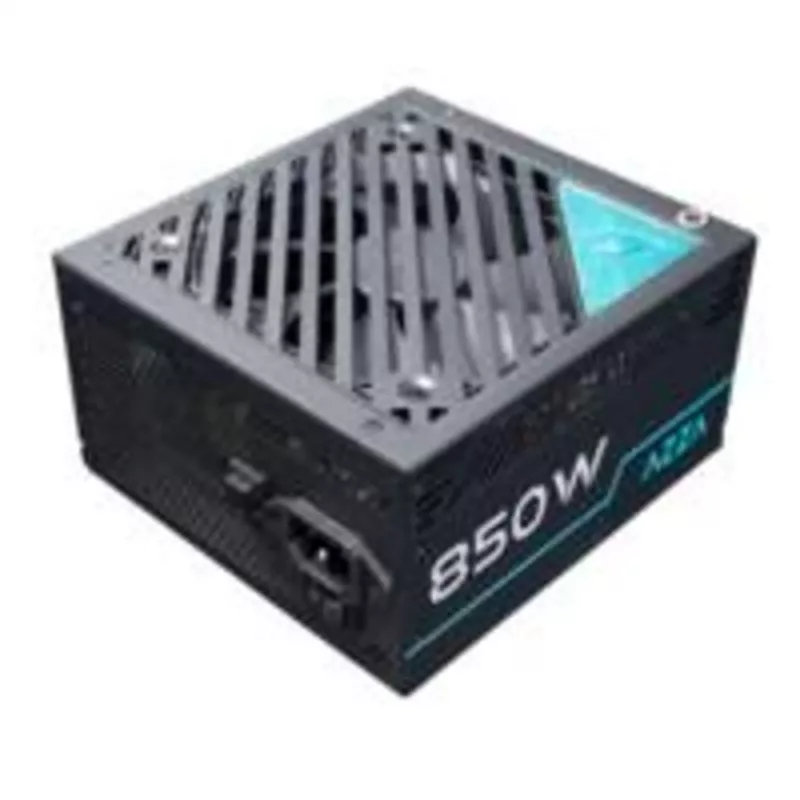

AZZA PSAZ-850G14 850W 80 PLUS Gold Fully Modular ATX Power Supply

The AZZA PSAZ-850G14 is a high-performance 850W power supply designed for demanding gaming and workstation builds. With 80 PLUS Gold certification and fully modular cabling, it delivers efficient, stable power while keeping your system clean and clutter-free. The 140mm fan with Fluid Dynamic Bearing ensures quiet and reliable cooling.

Advantages

Fully modular design allows you to connect only the cables you need, improving airflow and simplifying cable management. The 80 PLUS Gold efficiency rating reduces energy waste and heat output. Multiple protection features safeguard your components against overvoltage, undervoltage, overcurrent, and more.

Suitable for

• High-end gaming PCs
• Workstations and content creation rigs
• Systems requiring reliable and efficient power delivery

Key specifications

• Total Power: 850 W
• Efficiency: 80 PLUS Gold
• Form Factor: ATX
• Modularity: Fully Modular
• Fan Diameter: 140 mm
• Fan Bearing: Fluid Dynamic Bearing (FDB)
• ATX Connector: 1x 24-pin
• EPS/CPU Connectors: 2x 4+4-pin
• PCIe Connectors: 6x 6+2-pin
• SATA Power Connectors: 8
• Peripheral (Molex) Connectors: 4
• Input Voltage: 100-240 V AC
• Input Frequency: 50/60 Hz
• MTBF: 100,000 hours
• Protection Features: OVP, UVP, OPP, SCP, OCP, OTP
• Compliance: ATX12V v2.4, EPS12V v2.92
• Certifications: CE, FCC, TUV, cTUVus, RCM, CCC, EAC, RoHS

Recommendations

For optimal performance and longevity, pair this power supply with a high-quality UPS and ensure proper ventilation in your case.
