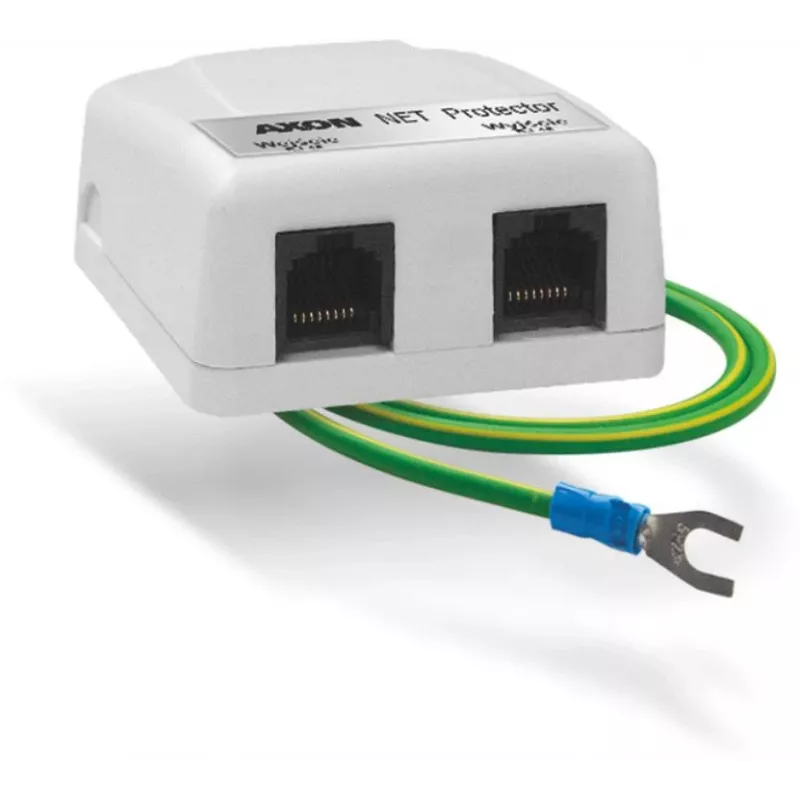

AXON NET PROTECTOR Surge Protector for Gigabit Ethernet, RJ45, 8-Wire Protection, Wall Mountable, Metal Housing

The AXON NET PROTECTOR is a high-performance network surge protector designed to safeguard sensitive network equipment such as switches, routers, and network cards against voltage surges and transients. With support for Gigabit Ethernet (10/100/1000 Mbps) and protection for all 8 wires of an Ethernet cable, this device ensures reliable data transmission while preventing damage from electrical spikes. Its compact metal housing and wall-mountable design make it ideal for both home and professional installations.

Advantages

Reliable surge protection for all 8 data lines ensures comprehensive safety for your network devices. Fast response time of less than 1 ns provides immediate protection against transient overvoltages. The shielded metal housing minimizes electromagnetic interference, maintaining signal integrity. Easy wall mounting allows flexible placement in server rooms, offices, or home networks.

Suitable for

• Protecting network switches and routers in IT infrastructure
• Securing network cards in workstations and servers
• Use in home networks to prevent damage from lightning or power surges
• Industrial environments where network reliability is critical

Key specifications

• Product Type: Network Surge Protector
• Network Standard: Gigabit Ethernet (10/100/1000 Mbps)
• Connectors: 2 x RJ45 (Input/Output)
• Protection: All 8 wires (4 pairs)
• Nominal Discharge Current (In): 0.5 kA (8/20 µs) per line
• Max Discharge Current (Imax): 1 kA (8/20 µs) per line
• Voltage Protection Level (Up): < 60 V (line-line), < 600 V (line-ground)
• Response Time: < 1 ns
• Grounding: Required, via screw terminal
• Housing Material: Metal (shielded)
• Operating Temperature: -20°C to +60°C
• Humidity: 5% to 95% non-condensing
• Mounting: Wall mountable
• Standards Compliance: IEC 61643-21, EN 61643-21
• Insertion Loss: < 0.5 dB
• Return Loss: > 15 dB

Recommendations

For optimal protection, ensure proper grounding via the screw terminal. This surge protector is an essential component for any network setup where equipment value and data integrity are paramount. Combine with a primary power surge protector for comprehensive protection.
