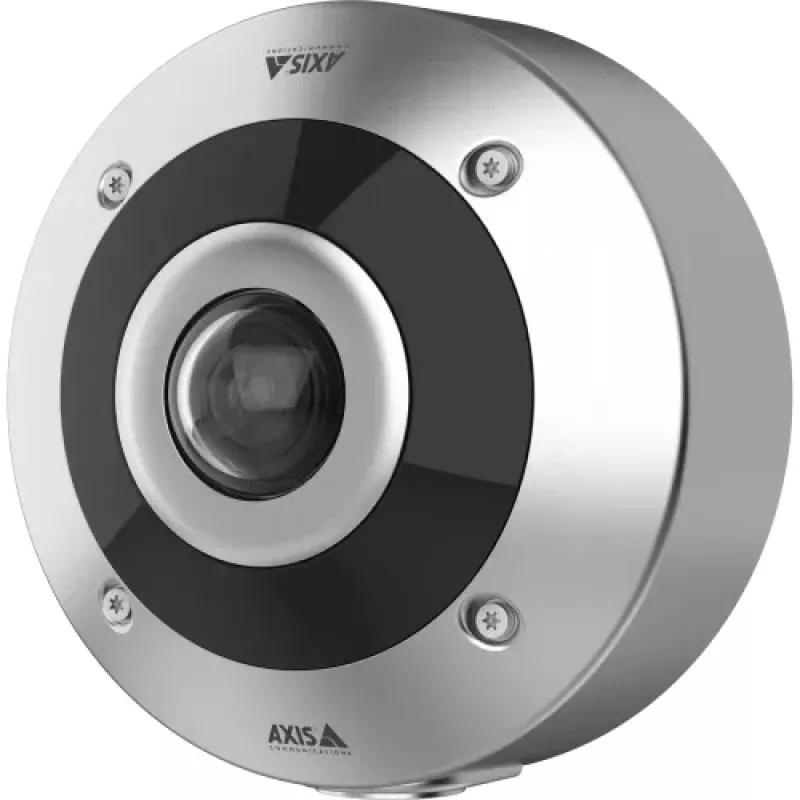

Axis M4337-SPLVE Network Panoramic Camera - Fisheye - Outdoor - Vandal-Protected - Colour (Day & Night)

Security teams monitoring expansive areas such as parking lots, building perimeters, or city squares often face the challenge of covering wide fields of view without blind spots. The Axis M4337-SPLVE addresses this with a single 6 MP fisheye lens that captures a full 183° horizontal and vertical view, eliminating the need for multiple cameras and simplifying surveillance infrastructure. Its robust outdoor design, with IP66/IP67 and IK10 ratings, ensures reliable operation in harsh conditions, while the integrated IR illumination and Lightfinder 2.0 technology deliver clear images even in complete darkness.

Key specifications

• 6 Megapixel 1/1.8" Progressive Scan RGB CMOS sensor
• Maximum video resolution: 2880 x 2880 pixels at up to 30 fps
• Fixed focal fisheye lens, 1.27 mm focal length
• 183° horizontal and vertical field of view
• Day & Night functionality with automatic IR-cut filter
• OptimizedIR invisible 940 nm LEDs for night vision
• Video compression: H.264, H.265, MJPEG
• Two-way audio with built-in microphone
• Local storage via MicroSD/microSDHC/microSDXC card slot
• Power over Ethernet (PoE) IEEE 802.3af/at Type 1 Class 3
• Environmental protection: IP66, IP67, NEMA 4X-rated
• Vandal resistance: IK10-rated
• Operating temperature: -40 °C to 50 °C (-40 °F to 122 °F)
• On-board dewarping for distortion-free viewing
• Advanced features: Lightfinder 2.0, Forensic WDR, Zipstream
• Cybersecurity: Axis Edge Vault, Secure Boot, Signed Firmware

Why choose it

This camera is engineered for demanding outdoor surveillance, offering a panoramic view that reduces camera count and installation costs. Its vandal-resistant housing and wide temperature range make it a dependable choice for critical infrastructure. The built-in IR and Lightfinder 2.0 ensure round-the-clock monitoring, while Zipstream technology optimizes bandwidth and storage without compromising image quality.

Ideal use cases

• Perimeter surveillance of industrial sites, warehouses, and logistics yards
• Monitoring of parking lots, entrances, and public areas
• City surveillance, traffic monitoring, and crowd management
• Retail stores and shopping centers for wide-area coverage

Good to know

The camera supports Power over Ethernet, simplifying installation by using a single cable for both power and data. It is compatible with Axis Companion and other VMS software. The unit is sold as a single camera; no mounting bracket is included. For optimal performance, use a PoE switch or injector that meets IEEE 802.3af/at standards.
