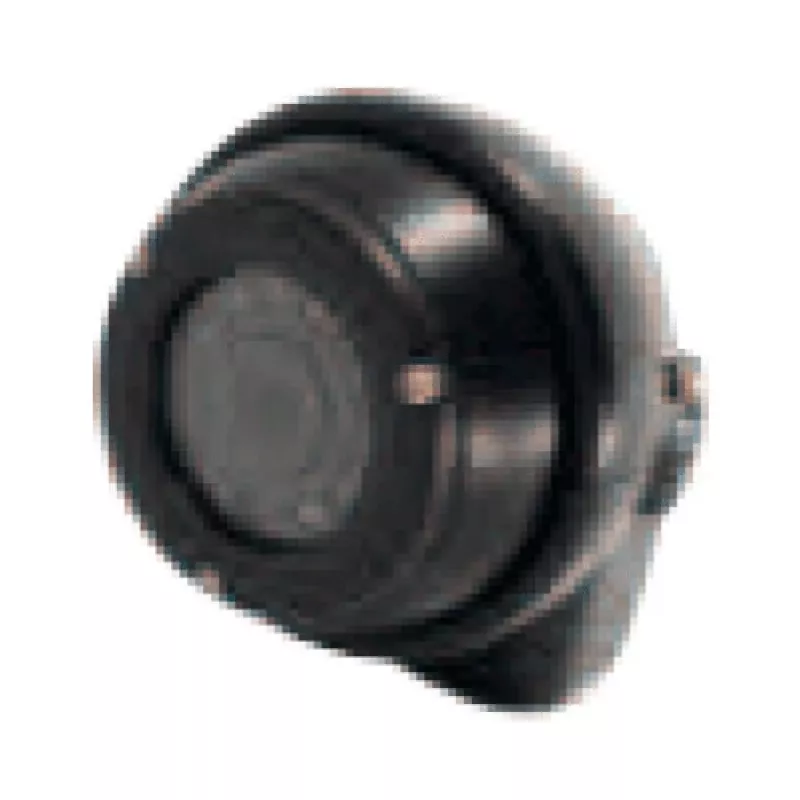

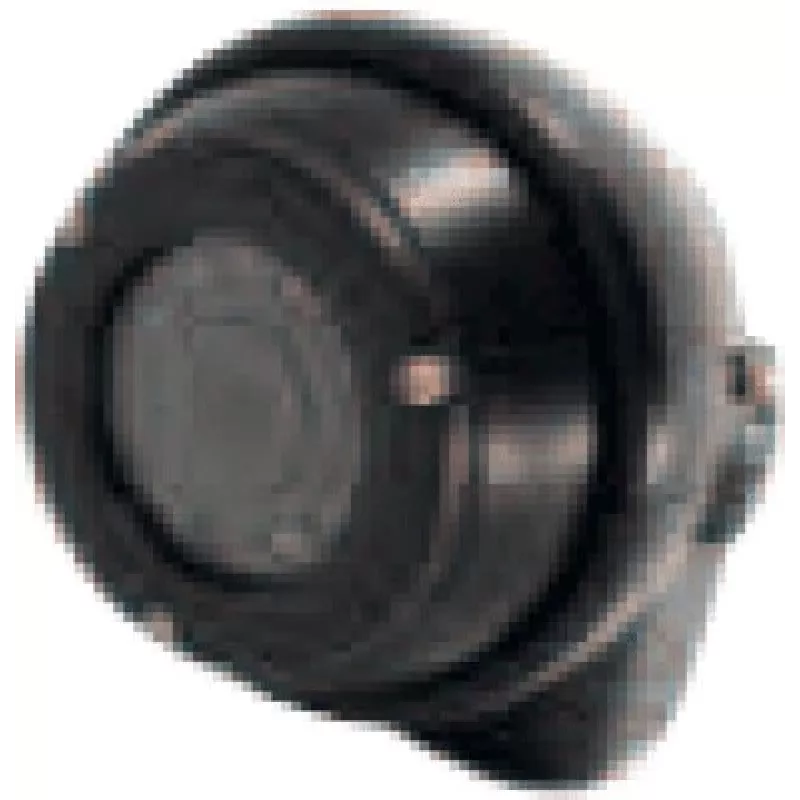

AXION DBC 1140231 HR High-End 960H Ball Camera IP69K

High-end 960H analog ball camera engineered for uncompromising performance in extreme environments. The AXION DBC 1140231 HR delivers a crisp 700 TVL resolution and a wide 130° diagonal viewing angle, ensuring detailed surveillance even in challenging lighting conditions down to 0.1 lux. Its IP69K-rated aluminum alloy housing withstands high-pressure, high-temperature washdowns, making it ideal for hygienic and heavy-duty applications.

Advantages

Built around a 1/3" CCD sensor, this camera captures 976×582 effective pixels (PAL) for sharp, noise-free images. Automatic white balance, gain control, and backlight compensation maintain optimal picture quality without manual intervention. The selectable mirror/normal image orientation simplifies installation on rear-view or side-mount applications. With vibration resistance up to 10G and shock resistance up to 100G, it endures constant motion and impacts.

Suitable for

• Commercial vehicle rear-view and blind-spot monitoring
• Food and beverage production lines requiring hygienic washdown
• Agricultural and construction machinery exposed to dirt and moisture
• Industrial inspection points with high-pressure cleaning routines
• Marine and off-road applications needing rugged, dust-tight cameras

Key specifications

• Video standard: 960H analog (PAL/NTSC)
• Image sensor: 1/3" CCD
• Resolution: 700 TV lines
• Viewing angle: 130° diagonal
• Minimum illumination: 0.1 lux @ F1.2
• Ingress protection: IP69K (dust-tight, high-pressure/temperature water jet resistant)
• Operating voltage: 12V DC
• Power consumption: < 2W
• Operating temperature: -30°C to +70°C
• Video output: 1.0 Vp-p, 75 ohm
• Connector type: 4-pin screw connector
• Housing material: aluminum alloy
• Image orientation: selectable mirror/normal
• Automatic functions: auto white balance, auto gain control, backlight compensation
• Vibration resistance: 10G
• Shock resistance: 100G

Recommendations

For demanding surveillance tasks where hygiene, durability, and image clarity are non-negotiable, the AXION DBC 1140231 HR is the professional's choice. Its IP69K sealing and robust construction ensure reliable operation in washdown and high-vibration environments, while the 960H resolution captures every critical detail.
