Router FRITZ!Box 6860 5G Dual-band Wi-Fi 6

The FRITZ!Box 6860 5G is a compact outdoor-capable router that provides high-speed internet via 5G mobile networks and supports 4G (LTE Advanced Pro) and 3G. Designed for installation indoors or in protected outdoor locations such as on a window, it includes an integrated DECT base station for up to six cordless phones, dual-band Wi‑Fi 6 (2.4 / 5 GHz), Gigabit Ethernet and Power-over-Ethernet (PoE+) power supply. FRITZ!OS delivers a user-friendly interface, regular updates and a range of smart home and security functions.

Advantages

The FRITZ!Box 6860 5G offers high downstream speeds up to 1.3 Gbit/s over 5G and supports multiple mobile network generations for future compatibility. Mesh-capable Wi‑Fi extends coverage with other FRITZ! devices, while IP54-rated splash and dust protection allows installation in sheltered outdoor positions. The integrated DECT base station and VoLTE/VoNR support enable making and receiving calls via the SIM card number on connected handsets. Security features include a built-in firewall, individual Wi‑Fi network key on delivery and guest access. PoE+ and an included power adapter provide flexible powering options.

Suitable for

• Homes or small offices needing high-speed mobile broadband where fixed-line internet is not available or as a secondary connection
• Locations requiring outdoor or window-mounted installation for improved mobile reception

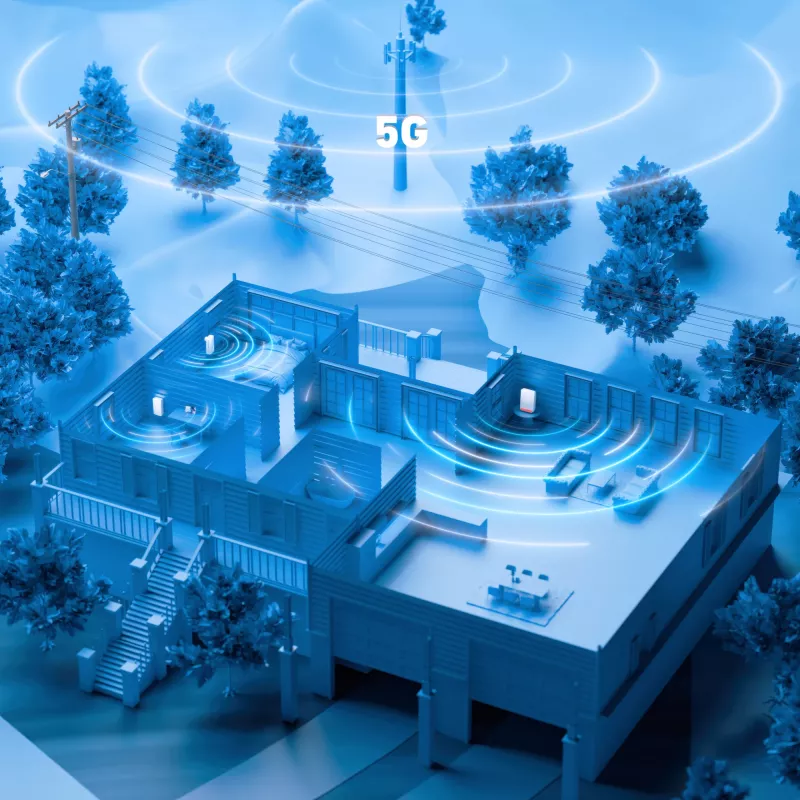

• Mesh Wi‑Fi networks to extend coverage with FRITZ!Repeaters or FRITZ!Powerline
• Users who want DECT telephony with up to six cordless handsets and VoLTE/VoNR calling

Key specifications

• Mobile networks: 5G, 4G (LTE Advanced Pro), 3G
• Maximum downstream over 5G: up to 1.3 Gbit/s
• Wi‑Fi: Dual‑band 2.4 GHz / 5 GHz, Wi‑Fi 6 (802.11ax), max WLAN data rate listed 600 Mbit/s
• Antenna configuration: 4x4
• Ethernet: Gigabit Ethernet, 1 LAN (RJ‑45) via PoE adapter for indoor extension
• DECT base: supports up to 6 cordless handsets
• Ingress protection: IP54 (splash and dust protected for sheltered outdoor use)
• Power: Power-over-Ethernet (PoE+); suitable power adapter included
• Security: built-in firewall, supports WPA2/WPA3, IPSec; guest access available
• Operating system: FRITZ!OS with regular updates and smart home features

How to use

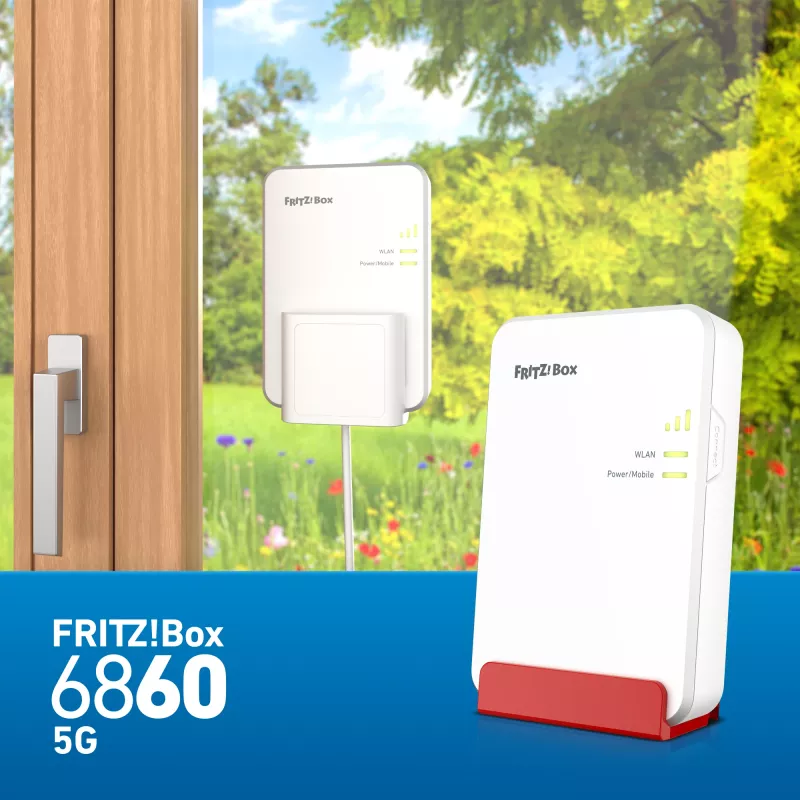

Install the FRITZ!Box 6860 5G near a window or in a protected outdoor area to achieve the best mobile reception; a setup wizard in FRITZ!OS assists with alignment and configuration. Connect the device to power via the included PoE+ adapter and insert an active SIM card to enable mobile internet and telephony. Configure Wi‑Fi, DECT handsets and mesh settings through the FRITZ!Box user interface. To extend indoor Wi‑Fi or DECT coverage, connect a FRITZ!Repeater or another FRITZ!Box to the LAN port on the PoE adapter.

Recommendations

For optimal 5G performance, mount the device where signal strength is highest (for example on a window facing the nearest cell tower) and keep firmware up to date. Use mesh-configured FRITZ! devices to improve coverage indoors and enable automatic updates in FRITZ!OS to maintain security and feature updates.
