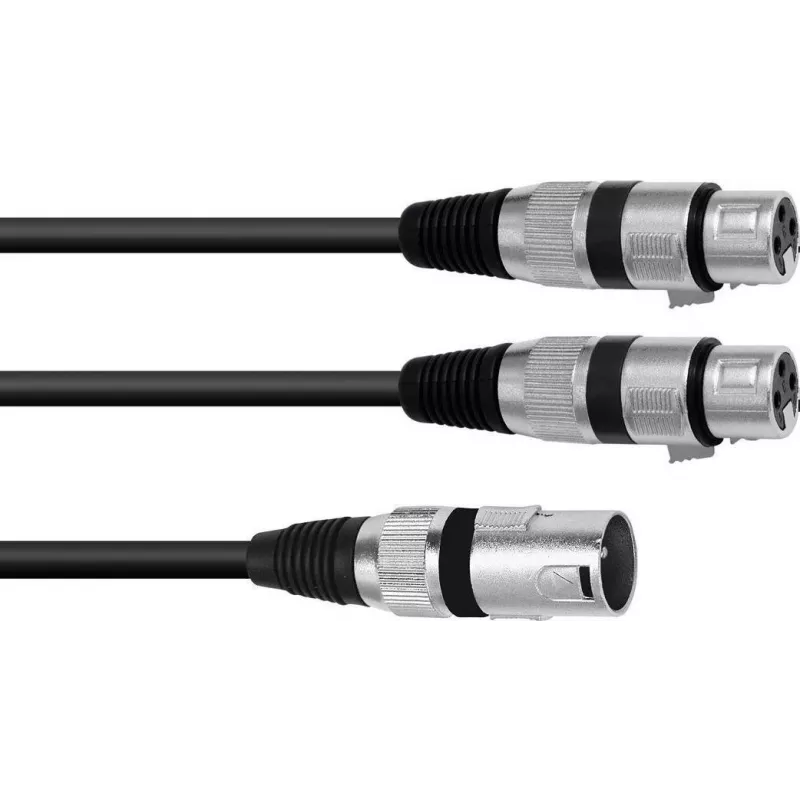

Audio Cable XLR 3-pin Male to 2 x XLR 3-pin Female Omnitronic 30225210

The Omnitronic 30225210 is a 1.5 m audio cable with a 3-pin male XLR connector on one end and two 3-pin female XLR connectors on the other. Designed for balanced analog signal routing, this splitter cable allows a single XLR output to feed two separate XLR inputs while maintaining clear transmission and reducing interference. The cable's black jacket and molded connectors provide a compact solution for stage and studio setups where space and reliable connections are required.

Advantages

This XLR 3-pin male to 2 x XLR 3-pin female cable supports balanced audio to minimise hum and noise over short to medium distances. The 1.5 m length strikes a balance between flexibility and tidy routing, suitable for connecting nearby devices without excess cable. Robust connector shells and strain-relieved junctions increase durability for repeated use in live sound or studio patching.

Suitable for

Key specifications

How to use

Connect the 3-pin male XLR end to the output device, such as a microphone preamp, DI box, or mixer output. Plug the two 3-pin female XLR connectors into the two destination inputs you intend to feed. Ensure devices are powered down when making connections to avoid pops or transient signals. Verify signal routing and levels on destination gear, and adjust gain or trim as required to prevent clipping. For best results, avoid running the cable parallel to mains power cables for long distances.

Recommendations

Use this cable for short to medium length splits in balanced audio systems. Do not use it to join two outputs together or to parallel outputs with active drivers, as that can damage equipment. For permanent or complex routing, consider a dedicated splitter box with isolation or transformers to prevent grounding and impedance issues.
