ATX computer case Darkflash DS900WS — mid-tower, no fans, black

Darkflash DS900WS ATX computer case without fans (Black)

The Darkflash DS900WS ATX (Advanced Technology eXtended, a standard motherboard format) is a spacious midi tower case that supports ATX, M-ATX (Micro Advanced Technology eXtended, a smaller motherboard format) and ITX (Information Technology eXtended, a compact motherboard format) motherboards, and its interior will accommodate a graphics card up to 425 mm in length and CPU cooling up to 170 mm in height. The case allows the installation of up to 12 120 mm fans and water cooling. This makes the DS900WS ATX suitable for both gaming sets and heavy-duty PCs. The tempered glass side panel allows you to expose the computer's interior, and the presence of 7 PCI-E (Peripheral Component Interconnect Express, an interface for expansion cards) slots and space for 4 drives (2x HDD, 2x SSD) gives you ample room for expansion.

Compatibility and mounting space

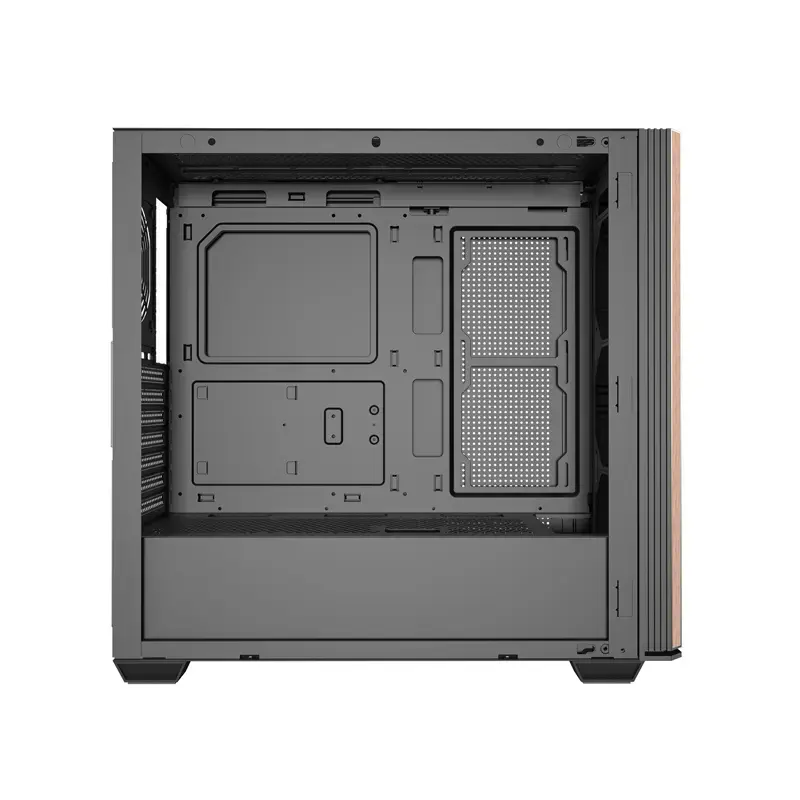

The case supports ATX, Micro ATX and ITX format motherboards, with the power supply mounted at the bottom as standard. Inside, you'll find space for two 3.5" HDDs (Hard Disk Drives) and two 2.5" SSDs (Solid State Drives) - giving you ample space for data, system and games. The user can install a graphics card up to 425 mm long and a CPU cooler up to 170 mm high. There are also 7 PCI-E slots, making it easy to expand the kit with additional cards.

Advanced cooling system

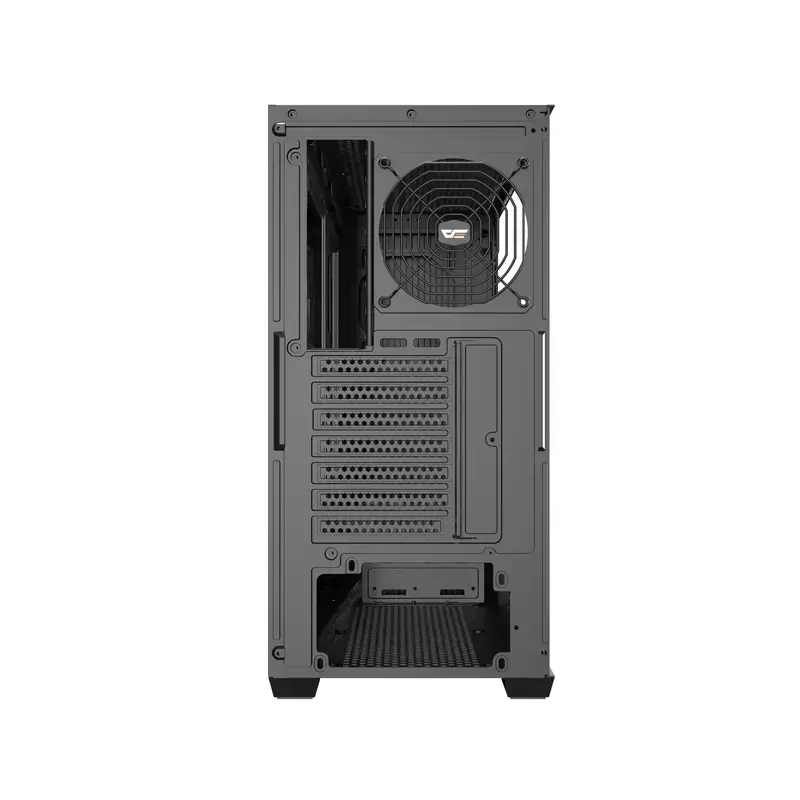

The Darkflash DS900WS ATX offers extremely extensive cooling capabilities. The chassis can accommodate up to 12 120 mm fans, allowing for effective temperature management even under intense load. It is also possible to mount water cooling - up to 240 mm in the front and up to 360 mm on the top. In addition, the rear panel of the case features a large steel ventilation mesh for effective heat dissipation.

Practical ports

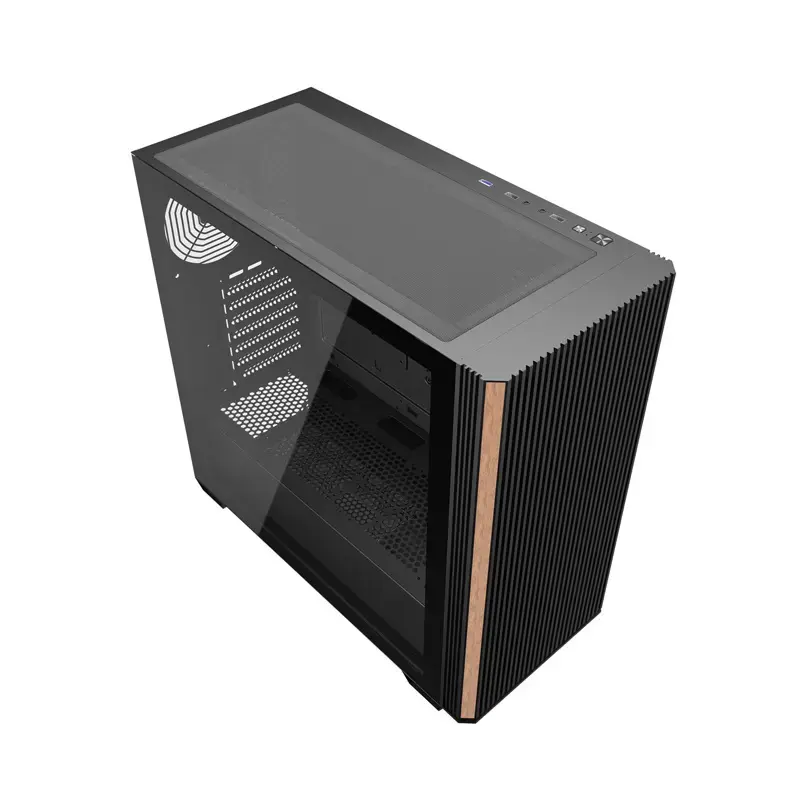

The top panel features all the necessary connectors: one USB 3.0 (Universal Serial Bus 3.0, a high-speed data transfer connector), two USB 2.0 ports, and an HD (High Definition Audio) audio connector for headphones and microphone. In addition, there is a power and reset button, making it easier to use the computer on a daily basis. The whole thing is designed for convenience and quick access to the most important functions.

Durable construction and thoughtful interior

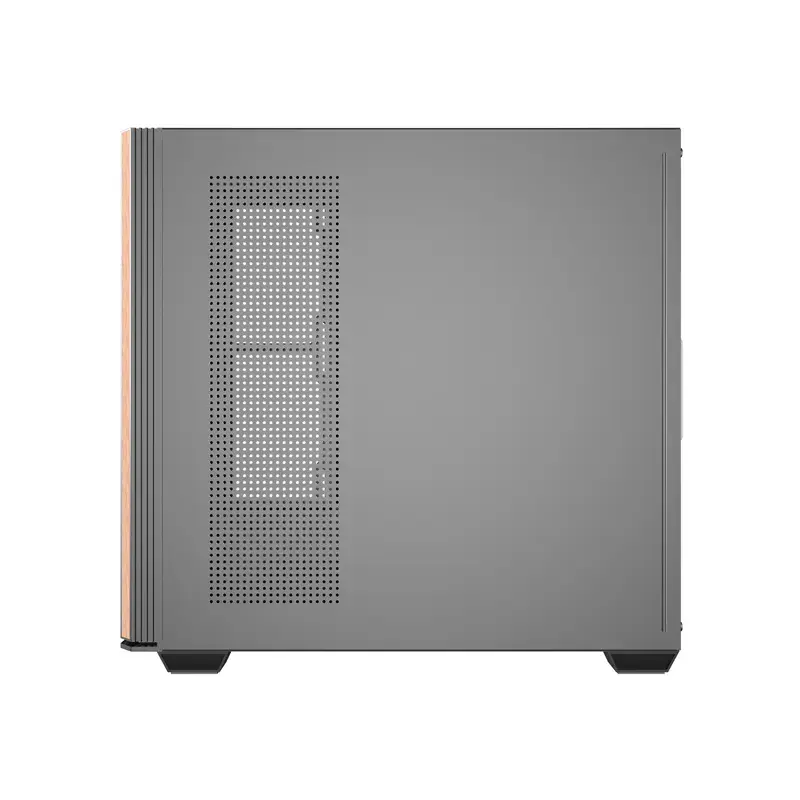

The case is made of 0.5 mm SPCC (Steel, Plate, Cold Rolled, Commercial Quality - cold rolled structural steel), which ensures stability and resistance to damage. Its dimensions are 470 x 218 x 454 mm, making it compact, but still very roomy. The interior is designed in a way that makes it easier to mount components and run cables, resulting in better airflow and a more organized look. In addition, part of the right panel is made of metal mesh, which not only protects the hardware from dust, but also helps air circulation. On the other hand, the top and bottom parts of the case made of mesh further promote ventilation, and their magnetic design ensures quick and convenient installation/removal.

Tempered glass and stylish design

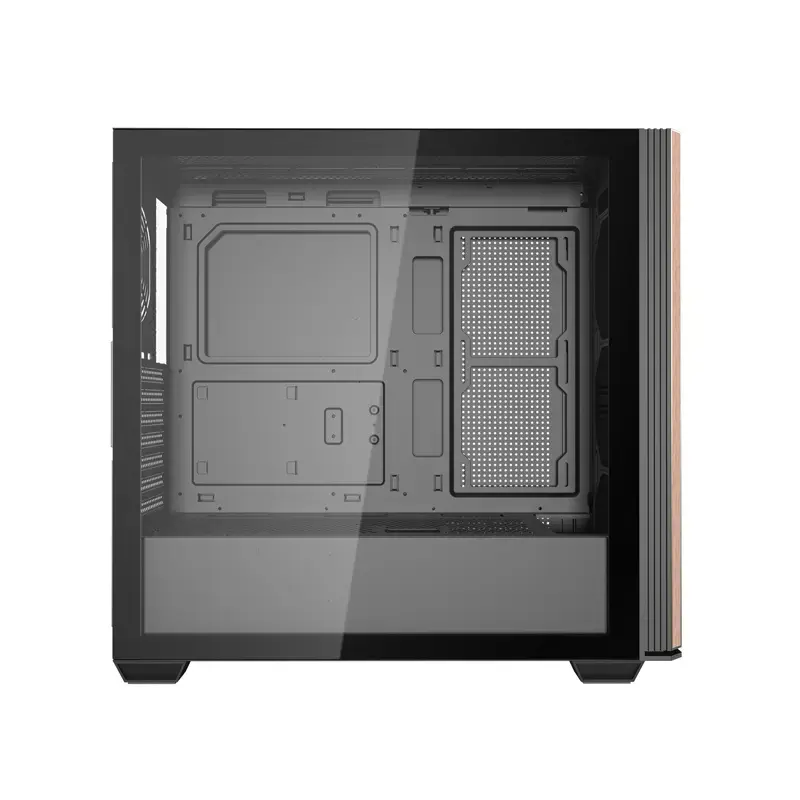

The left side of the case features a tempered glass panel to expose the computer's interior - including fan backlighting and components. An additional wood-style accent on the front adds a subtle but original touch.

How to use

Install a compatible motherboard (ATX, Micro-ATX or Mini-ITX) on the standoffs and mount the power supply at the bottom in the designated compartment. Fit storage drives into the 3.5" and 2.5" mounting locations and insert expansion cards into the seven PCI-E slots. When planning cooling, measure clearance for the chosen CPU cooler and graphics card, then install fans or radiators in the front, top, side or bottom positions as required. Use the tempered glass side panel to access and check component connections; magnetic mesh panels can be removed for cleaning.

Recommendations

For optimal airflow, combine front intake fans with top and rear exhaust fans and consider a front 240 mm or top 360 mm radiator for liquid cooling. Select fans with appropriate thickness and power to ensure clearance for the GPU and radiators. Regularly clean the magnetic mesh filters to maintain ventilation efficiency and check that cable routing does not obstruct airflow paths.
