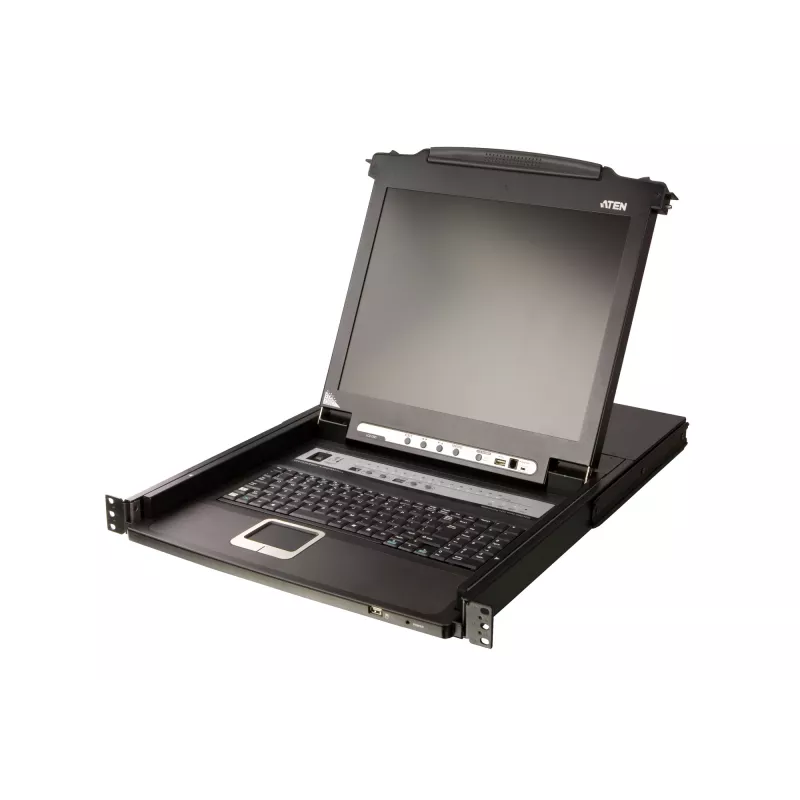

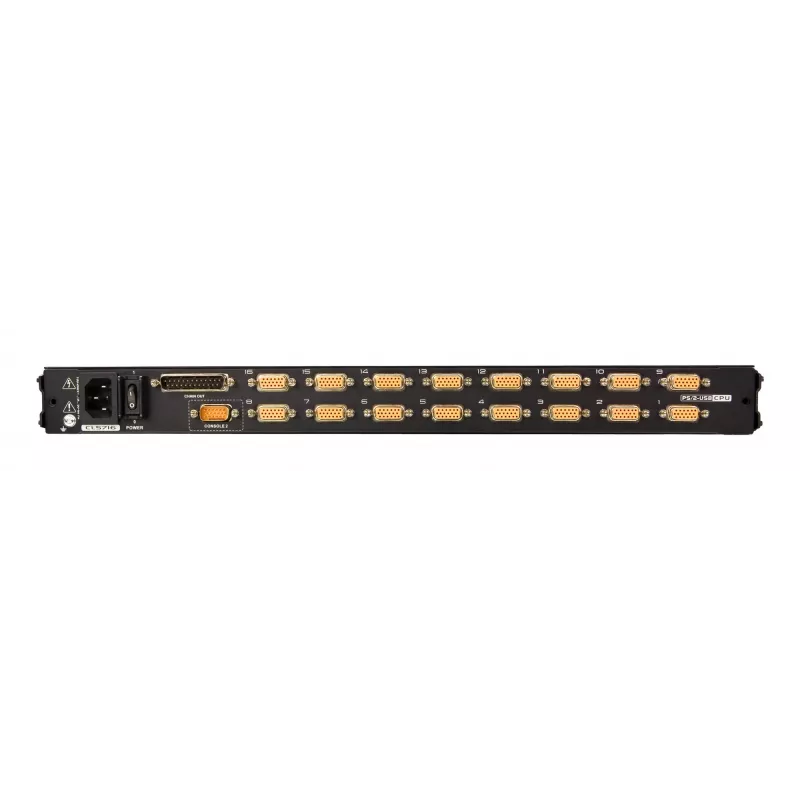

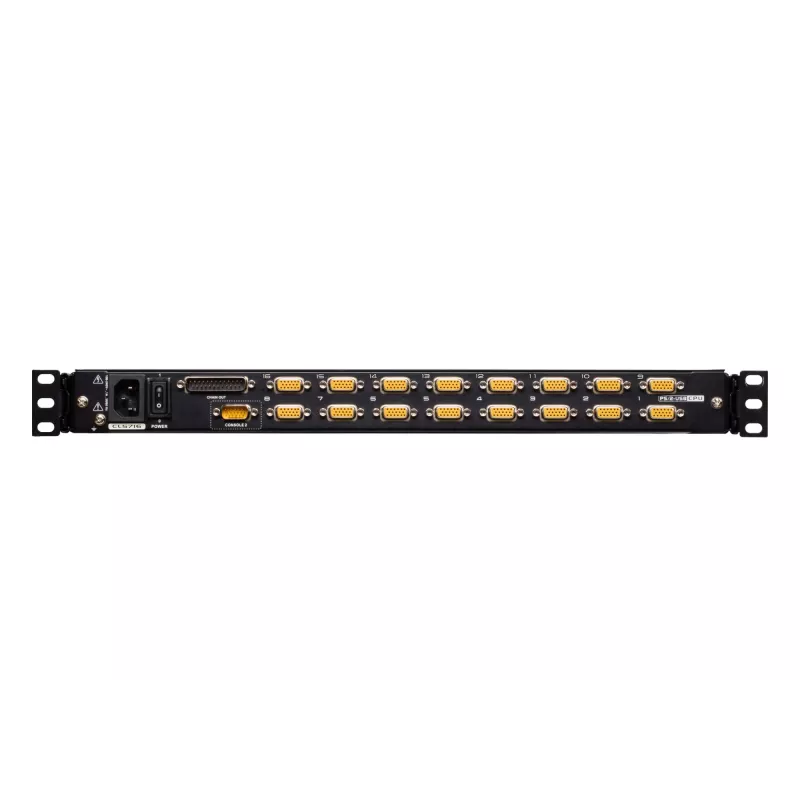

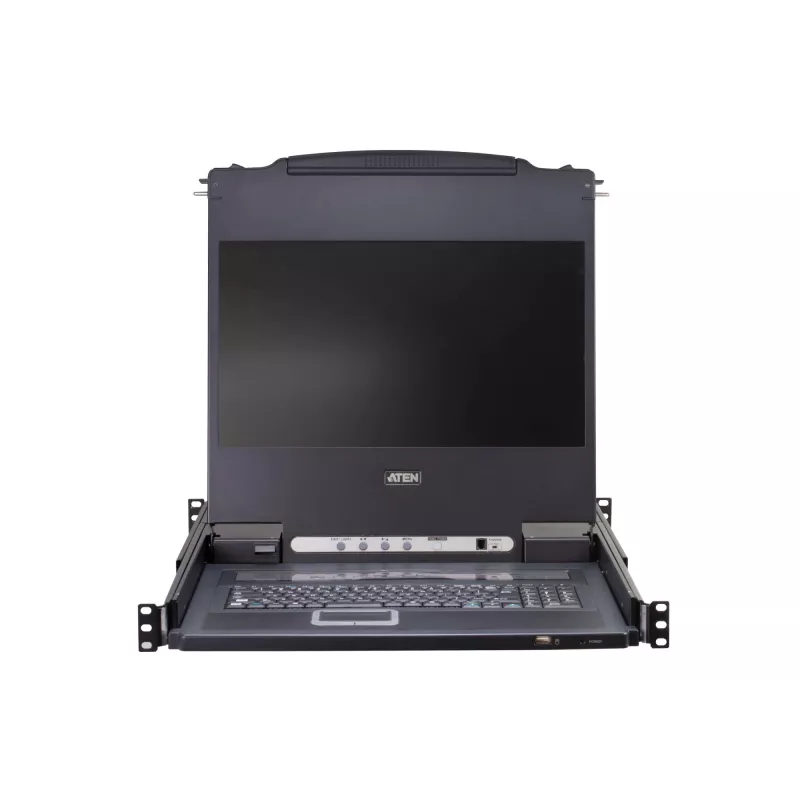

ATEN CL5716M rack console 43.2 cm (17 inch) 1280 x 1024 pixels Metal, Plastic Black 1U

ATEN CL5716M rack console 43.2 cm (17 inch) 1280 x 1024 pixels Metal, Plastic Black 1U
ATEN CL5716M rack console 43.2 cm (17 inch) 1280 x 1024 pixels Metal, Plastic Black 1U
ATEN CL5716M rack console 43.2 cm (17 inch) 1280 x 1024 pixels Metal, Plastic Black 1U
ATEN CL5716M rack console 43.2 cm (17 inch) 1280 x 1024 pixels Metal, Plastic Black 1U
ATEN CL5716M rack console 43.2 cm (17 inch) 1280 x 1024 pixels Metal, Plastic Black 1U
ATEN CL5716M rack console 43.2 cm (17 inch) 1280 x 1024 pixels Metal, Plastic Black 1U
ATEN CL5716M rack console 43.2 cm (17 inch) 1280 x 1024 pixels Metal, Plastic Black 1U
ATEN CL5716M rack console 43.2 cm (17 inch) 1280 x 1024 pixels Metal, Plastic Black 1U
ATEN CL5716M rack console 43.2 cm (17 inch) 1280 x 1024 pixels Metal, Plastic Black 1U
ATEN CL5716M rack console 43.2 cm (17 inch) 1280 x 1024 pixels Metal, Plastic Black 1U
R32,690
The CL5716 Slideaway – LCD KVM Switch series is a control unit that allows access to multiple computers from a single PS/2 or USB KVM (keyboard, video, and mouse) console. A single CL5716 can control up to 8 or 16 computers. As many as 31 additional KVM switches can be daisy-chained to the CL5716, s... Read More
Stock Out Of StockNo Stock Code 1719228 Brand ATEN Model CL5716M-ATA-EG Warranty 2 Years

Shipping & Returns

The CL5716 Slideaway – LCD KVM Switch series is a control unit that allows access to multiple computers from a single PS/2 or USB KVM (keyboard, video, and mouse) console. A single CL5716 can control up to 8 or 16 computers. As many as 31 additional KVM switches can be daisy-chained to the CL5716, so that up to 512 computers can all be controlled from a single KVM console.

The CL5716 offers a space-saving, streamlined approach to KVM switch technology by integrating a keyboard, 17", 17.3" or 19" LED-backlit LCD monitor, and touchpad in a 1U rack-mountable sliding housing. To enhance security, the CL5716 offers the option to use a fingerprint identification system for controlling access to both the CL5716 itself and the servers it commands.

The CL5716 is built on a modular design. The KVM section can be detached from the switch section for convenient maintenance and repair.

Note: Optional rack mount kits are available. For more information, refer to Compatible Accessories below.

ATEN CL5716M. Display diagonal: 43.2 cm (17"), Display resolution: 1280 x 1024 pixels, Display: LCD. Keyboard port type: USB, Mouse port type: USB. Keyboard language: UK English, Keyboard layout: QWERTY. Power consumption (typical): 18 W, AC adapter input voltage: 100 - 240 V, AC adapter frequency: 50/60 Hz. Width: 642.7 mm, Height: 44 mm, Depth: 480 mm

Key Highlights

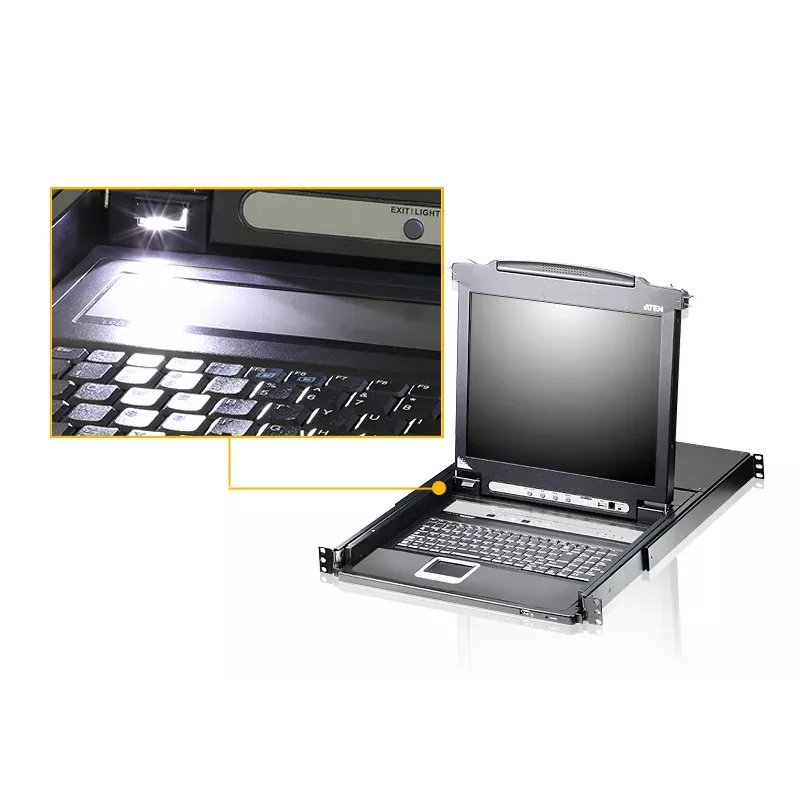

  • Exclusive LED illumination light – designed by ATEN to illuminate the keyboard and touchpad to allow visibility in lowlight conditions
  • Integrated KVM console with 17", 17.3" or 19" LED-backlit LCD monitor in a Slideaway™ housing
  • Daisy-chain up to 31 additional units – control up to 512 computers from a single console
  • USB port allows each computer to access USB peripherals (inapplicable to CL5716MW)
  • 43.2 cm (17") TFT 1280 x 1024 pixels 250 cd/m² 1000:1
  • Rack mounting 1U
  • On Screen Display (OSD)
  • Keyboard port type: USB Mouse port type: USB
  • Keyboard layout: QWERTY
  • Metal, Plastic
  • Black
Specifications
AC (power) in
Yes
AC adapter frequency
50/60 Hz
AC adapter input voltage
100 - 240 V
Auto scan delay (max)
255 s
Auto scan delay (min)
1 s
Built-in KVM switch
Yes
Built-in touchpad
Yes
Cables included
AC, KVM
Compliance certificates
RoHS
Console port
SPHD-18
Contrast ratio (typical)
1000:1
Daisy chain
Yes
Depth
480 mm
Display
LCD
Display brightness
250 cd/m²
Display diagonal
43.2 cm (17")
Display resolution
1280 x 1024 pixels
Display type
TFT
Height
44 mm
Hot keys
Yes
Hot-Plug support
Yes
I/O ports
1x DB-25 1x RJ-11
Input current
1 A
Keyboard language
UK English
Keyboard layout
QWERTY
Keyboard port type
USB
KVM switch ports quantity
16
LED indicators
Yes
Linux operating systems supported
Yes
Mac operating systems supported
Yes
Manual
Yes
Material
Metal, Plastic
Maximum resolution
1920 x 1200 pixels
Mouse port type
USB
Number of computers controlled
512
On Screen Display (OSD)
Yes
On/off switch
Yes
Operating relative humidity (H-H)
0 - 80%
Operating temperature (T-T)
0 - 50 °C
Pixel pitch
0.264 x 0.264 mm
Power consumption (typical)
18 W
Product colour
Black
Push button
Yes
Quick installation guide
Yes
Rack capacity
1U
Rack mount kit
Yes
Rack mounting
Yes
Response time
5 ms
RJ-45 ports quantity
1
Serial ports quantity
1
Storage temperature (T-T)
-20 - 60 °C
Supported resolutions
1280 x 1024 @75 Hz; DDC2B, 1920 x 1200 @ 60 Hz
USB 2.0 Type-A ports quantity
2
Viewing angle, horizontal
170°
Viewing angle, vertical
160°
Weight
13.6 kg
Width
642.7 mm
Windows operating systems supported
Yes

Leaflet

Open Leaflet

Manual

Open Manual
